| Prod Model: |
LM324APW |
| Number Of Channels Per Chip: |
4 |
| Maximum Quiescent Current (Ma): |
1.2@5V@0c to 70c |
| Typical Gain Bandwidth Product (MHz): |
1.2 |
| Minimum Cmrr Range (dB): |
65 to 70 |
| Maximum Single Supply Voltage (V): |
32 |
| Maximum Dual Supply Voltage (V): |
+/-16 |
| Typical Output Current (Ma): |
30@15V |
| Typical Slew Rate (V/Us): |
0.5@+/-15V |
| Maximum Supply Voltage Range (V): |
32 to 36 |
| Minimum Single Supply Voltage (V): |
3 |
Product Description
Hello, Thank you for your visiting!
We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation. | Lead time | Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery. |
| Guarantee | 100% original assembled new ; 30 days warranty |
| Payment | Hang Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express as you require |

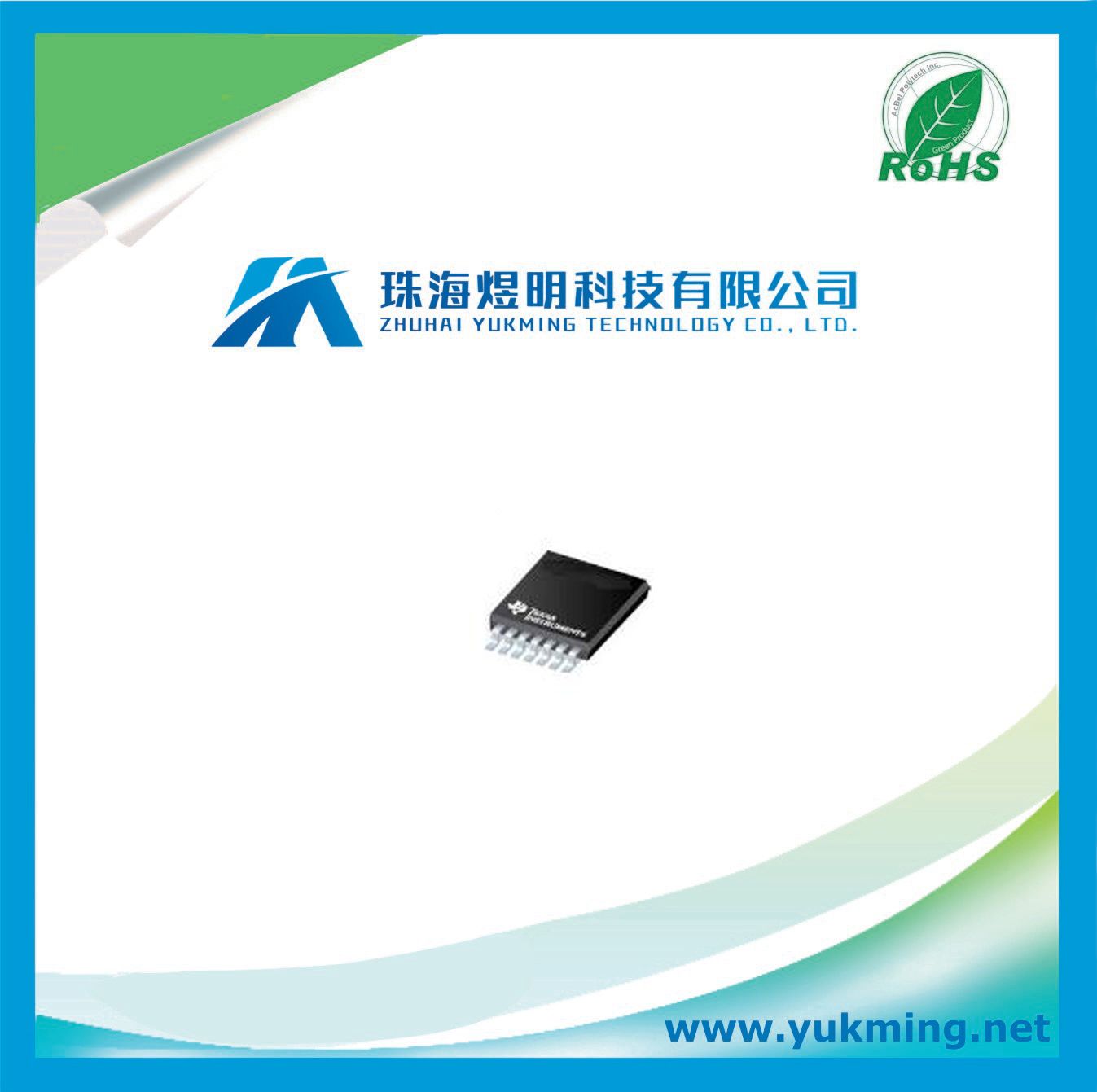

QUADRUPLE OPERATIONAL AMPLIFIERS
MANUFACTURER
Texas Instruments
PRODUCT CATEGORY
OP Amp
DESCRIPTION
OP Amp Quad GP ±16V/32V 14-Pin TSSOP Tube
Increase functionality to your instrumentation with this general purpose amplifier LM324APW OP amp from Texas Instruments. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1.5 V and maximum of ±16 V. This op amp has a temperature range of 0 °C to 70 °C. This device utilizes bipolar technology. This device uses one or two power supplies. It has 4 channels per chip.
Specifications
EU RoHS Compliant
Manufacturer Type High Gain Amplifier
Type General Purpose Amplifier
Number of Channels per Chip 4
Technology Bipolar
Rail to Rail No
Maximum Quiescent Current (mA) 1.2@5V@0C to 70C
Typical Gain Bandwidth Product (MHz) 1.2
Maximum Input Offset Voltage (mV) 3@30V
Maximum Input Offset Current (uA) 0.03@5V
Maximum Input Bias Current (uA) 0.1@5V
Minimum Operating Temperature (°C) 0
Minimum CMRR Range (dB) 65 to 70
Maximum Operating Temperature (°C) 70
Packaging Tube
Typical Output Current (mA) 30@15V
Typical Input Noise Voltage Density (nV/rtHz) 35@±15V
Maximum Single Supply Voltage (V) 32
Maximum Dual Supply Voltage (V) ±16
Typical Slew Rate (V/us) 0.5@±15V
Shut Down Support No
Maximum Supply Voltage Range (V) 32 to 36
Minimum Single Supply Voltage (V) 3
Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
Minimum Dual Supply Voltage (V) ±1.5
Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
Maximum Operating Supply Voltage (V) ±16|32
Minimum CMRR (dB) 65
Typical Voltage Gain (dB) 100
Power Supply Type Single|Dual
Mounting Surface Mount
Package Height (mm) 1.05(Max)
Package Length (mm) 5.1(Max)
Package Width (mm) 4.5(Max)
PCB changed 14
Standard Package Name SOP
Supplier Package TSSOP
Pin Count 14
Lead Shape Gull-wing
Any items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!
Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.
In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.
We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.
All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.
Following "Quality First, Service Oriented", Yukming is here for you!
