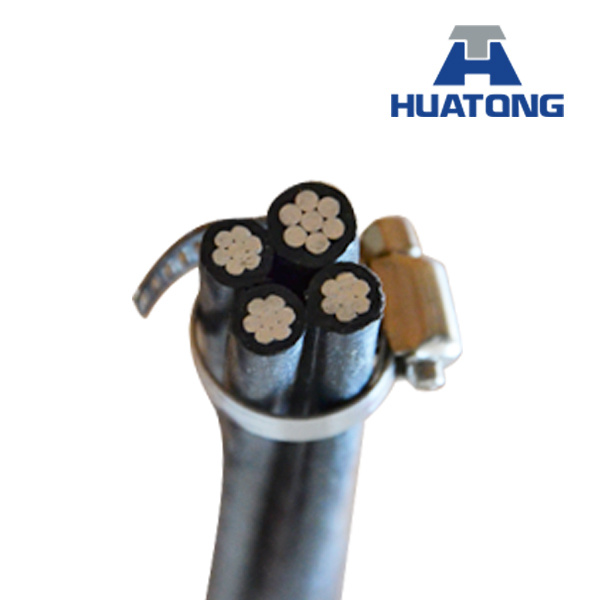

Quadruplex Conductor 600V Urd Aluminum Overhead Cable

Name: Quadruplex Conductor 600V Urd Aluminum Overhead Cable
Brand: all-electronics-online.com
SKU: 711397682
Availability: InStock
Rating: 5 (27 reviews)

Price:	US $ 1-100/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	abc cable
Material:	Aluminum
Voltage:	Low
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Aluminum
Insulation Material:	XLPE
Certification:	CCC
Sheath Material:	None
Range Of Application:	Industrial
Brand:	Huatong

Product Description

Quadruplex Conductor 600V Urd Aluminum Overhead Cable

SPEC	Conductor structure		Insulation	Insulation	Approx overall diameter	Approx weight
mm2	Phase (compacted Al)	Neutral	Material	Thickness (mm)	(mm)	(kg/km)
mm2	Phase (compacted Al)	(alloy)	Material	Thickness (mm)	(mm)	(kg/km)
	No./mm	No./mm
*116+116*	7/1.72	7/1.72	XLPE (HDPE)	1.2	12.5	110.1
*125+125*	7/2.15	7/2.15		1.2	14.9	163.9
*135+135*	7/2.54	7/2.54		1.4	17.5	229
*150+150*	7/2.92	7/2.92		1.4	20.1	300
*170+170*	19/2.15	19/2.15		1.4	23.6	423.2
*195+195*	19/2.54	19/2.54		1.6	27.6	585.4
*216+116*	7/1.72	7/1.72		1.2	14.2	175.8
*225+125*	7/2.15	7/2.15		1.2	16.7	258.4
*235+135*	7/2.54	7/2.54		1.4	19.7	361.2
*250+150*	7/2.92	7/2.92		1.4	22.5	472.1
*270+170*	19/2.15	19/2.15		1.4	26.1	658.3
*295+195*	19/2.54	19/2.54		1.6	30.5	908.2
*316+116*	7/1.72	7/1.72		1.2	16.3	241.5
*325+125*	7/2.15	7/2.15		1.2	19.1	353.6
*335+135*	7/2.54	7/2.54		1.4	22.5	493.5
*350+150*	7/2.92	7/2.92		1.4	25.7	644.1
*370+170*	19/2.15	19/2.15		1.4	29.7	895.2
*395+195*	19/2.54	19/2.54		1.6	34.6	1233.5

Features:

URD cable has characters of power-transmitting and strong mechanical. In comparison with bare wire, URD cable boasts many advantages, such as : small span in laying, higher safe reliability, better atmosphere aging resistance property. URD cable has the priority to be used in urban and rural transmitting construction project.

We can supply this cable according to different recognized standards, such as ASTM B230, B231, B232, B399, ICEA S-76-474, NF , customer's special specification also can be satisfied.

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

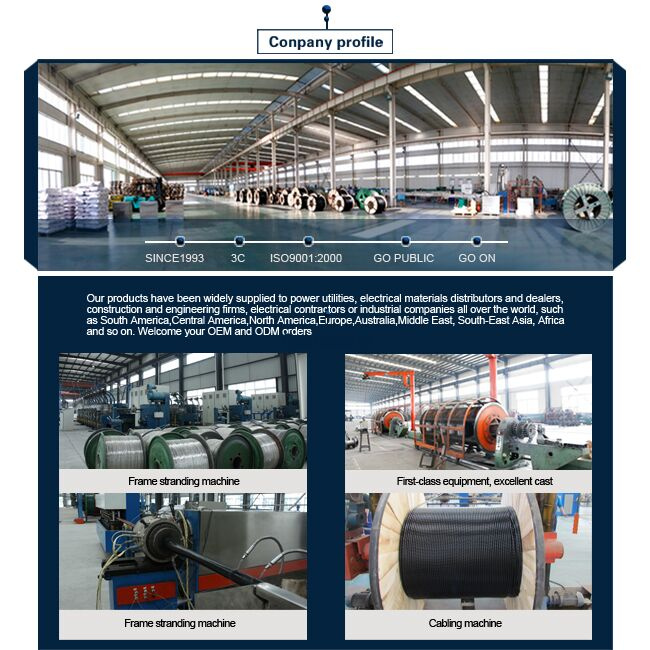

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
