Quick-Turnaround PCB 2 Layers Fr-4 Circuit Board with HASL

Name: Quick-Turnaround PCB 2 Layers Fr-4 Circuit Board with HASL
Brand: all-electronics-online.com
SKU: 822773665
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 0.52/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-226-V2.26
Outer Copper Foil:	1 Oz
Board Thickness:	1.6mm
Surface Treament:	HASL Lead Free
Solder Mask:	Green
Legend:	White
Min Line Width (Mil):	6.2 Mil
Min Line Spacing (Mil):	5.8 Mil
Forming:	V-Cut
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Electrical Test:	100% PCB Passed
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

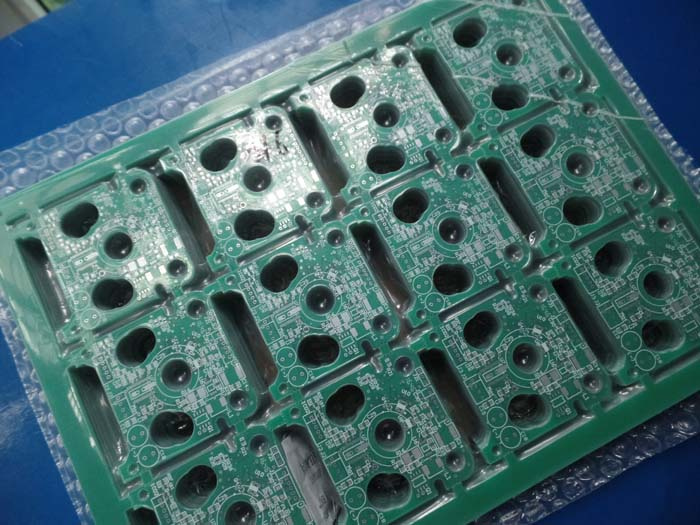

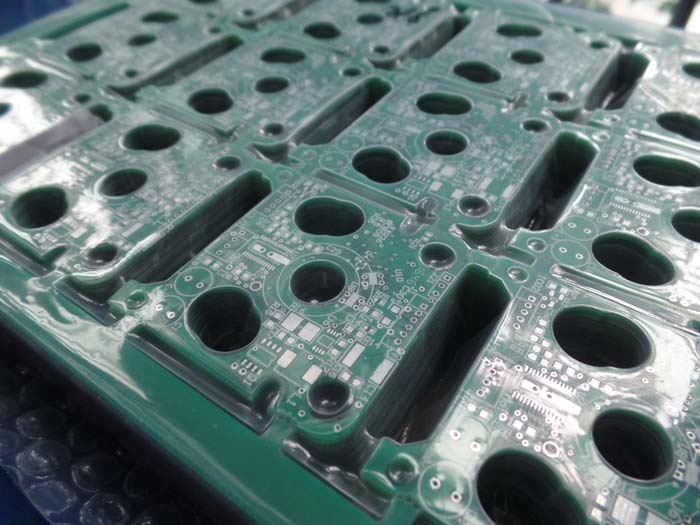

High Tg 170 Double sided PCB FR4 Routing and Milling Panel Green Solder Mask HASL lead
free PCB and White Screen in Power Supply Adaptor

Commodity Introduction
This is a type of FR-4 PCB for the application of Power Supply Adaptor. It's a 2 layer board
at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.52-1.58mm
	Outer copper foil	>=35 um	42.08um
	Inner copper foil	/	/
	Warp-twist	<= 0.75%	0.08%
Legend	Type	IJR-4000 MW300	IJR-4000 MW300
	Color	White	White
	Location	CS	CS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		6	6.2
Min line spacing (mil)		6	5.8
Min ring width (mil)		NA	NA
Solder Mask	Type	PSR-2000GT 600D	PSR-2000GT 600D
	Color	Green	Green
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface treament	HASL Lead free		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

NO	Required Dimension (tolerance)	Actual dimension
1	373.30	373.24	373.29	373.20	373.39
2	161.62	161.56	161.60	161.65	161.64

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

NO	Required	PTH	Actual dimension
1	0.600	N	0.600	0.575	0.625	0.600
2	0.600	Y	0.600	0.575	0.625	0.600
3	0.864	Y	0.850	0.825	0.875	0.850
4	0.914	Y	0.875	0.875	0.975	0.900
5	1.016	Y	0.975	0.975	1.025	1.000
6	1.143	Y	1.075	1.075	1.125	1.100
7	1.524	Y	1.475	1.475	1.525	1.500
8	1.700	Y	1.675	1.675	1.725	1.700
9	2.032	Y	1.975	1.975	2.025	2.000
10	2.500	Y	2.475	2.475	3.025	2.500
11	3.048	Y	2.975	2.975	2.525	3.000
12	3.200	Y	3.175	3.175	3.225	3.200
13	3.500	N	3.475	3.475	3.525	3.500

Learn PCB and Buy PCB --- Edge connector (Gold finger)

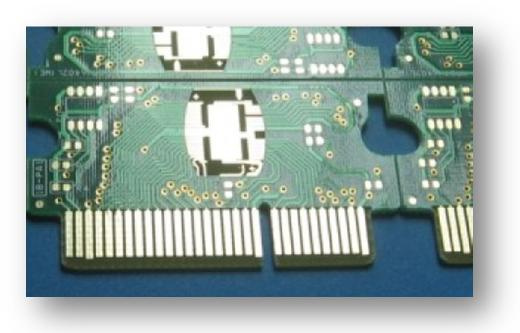

In order to ease the insertion of the PCB into the receptacle, the edge along the connector should
be chamfered or beveled. The beveling angle can be 20°, 30° and 45°, tolerance +/-5°.

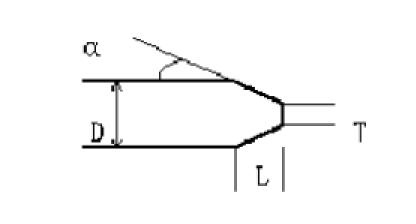

Bevel depth (L)

Calculation Formula of Bevel Depth:
L= (D/2-T/2)*tg a

Bevelling of gold finger
a (°)	T (mm)	t (mm)	L (mm)
20°	1.6	0.50	1.51
	2.0	0.65	1.85
	2.4	0.70	2.34
30°	1.6	0.50	0.95
	2.0	0.65	1.16
	2.4	0.70	1.47
45°	1.6	0.50	0.50
	2.0	0.65	0.65
	2.4	0.70	0.70

T: PCB thickness t: PCB remaining thickness
L: bevel depth a: bevel angle

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
