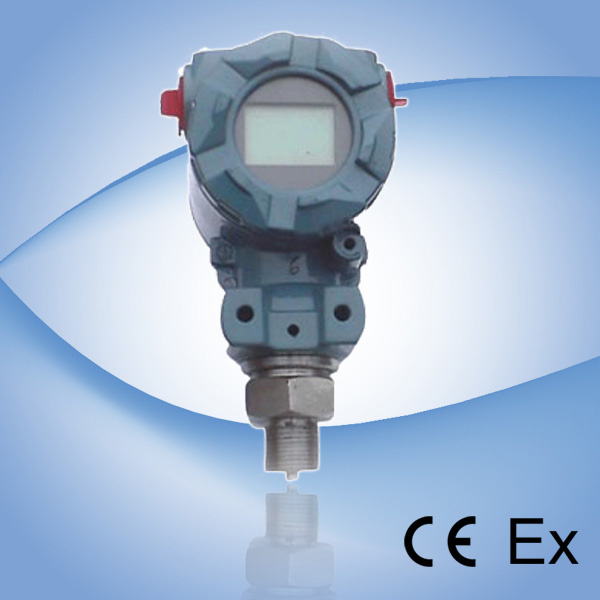

Qzp-S8 Smart Pressure Transmitter with LCD Display

Prod Model:	QZP-S8
Range-100~0kpa,0~500kpa....0~100MPa:	Accuracy 0.25%Fs

Product Description

QZP-S8 Smart Pressure Transmitter
QZP-S8 smart pressure transmitters are consist of 316L isolation membrane pressure transmitter,
high-powered MPU, integrated circuit and high-stability constant current.
It can correct the linearity and compensate temperature drift.
Also can adjust the data of transmitter by hand-helder, achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.
With characteristics of high precision, good stability, good reliability and easy handle.

Model: QZP-S8
Range: -100~0KPa, 0~5KPa….0~500KPa….0~100 MPa
Accuracy:±0.075%FS, ±0.1%FS, ±0.2%FS
 Feature:
1.With indicator Smart type pressure transmitters.
2.Can choose with HART AGREEMENT.
3.Have the characteristics of high precision, good stability, long working life and high reliability.
4.Small in size, light in weight. easy to installation.
5.LCD and LED indicator can be chose by customers.
6.Suitable for the higher accuracy measuring and control of industrial, oil, water supply etc.

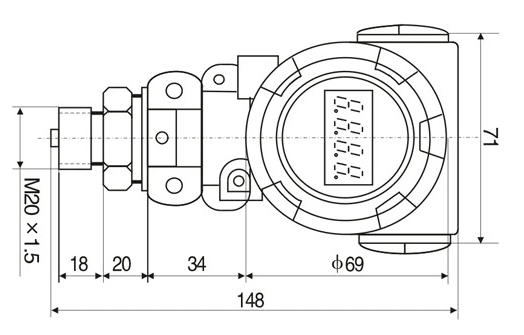

 Dimensions: (unit: mm)



Technical Specifications

Measuring media		gases or liquids which are compatible to 316L stainless steel
Measuring range		-100~0KPa, 0~5KPa….0~500KPa….0~100MPa
Pressure type		Gauge(G),Absolute(A),Sealed(S)
Signal output	Analog	transmitter, mA (2 wires)	4~20mA
		transmitter, Vdc (3 wires)	0~10V, 1~5V,0~5V,0~20mA
	Digital	Can bi-dinrectionally communication in accordance with HART AGREENMENT
Combined accuracy		%FS	±0.075, ±0.1(standard), ±0.2
Long stability		≤±0.2%FS/year
Power supply		Vdc	12~36, (24V standard)
Compensated temp.		ºC	-10~+60
Operating temp.		ºC	-30~+85
Temperature coefficient of ZERO		%FS/10ºC	≤±0.1
Temperature coefficient of SPAN		%FS/10ºC	≤±0.1
Insulation resistance		MΩ	>500 @ 100Vdc
Display		LCD or LED
Electrical connection		DIN43650,aviation connector,directly lead(selectable)
Material		stainless steel
Pressure connection		G1/4, G1/2, M20x1.5,M14x1.5,M12x1,(customized)
Environment protection		IP	65
Safe overload		%FS	200

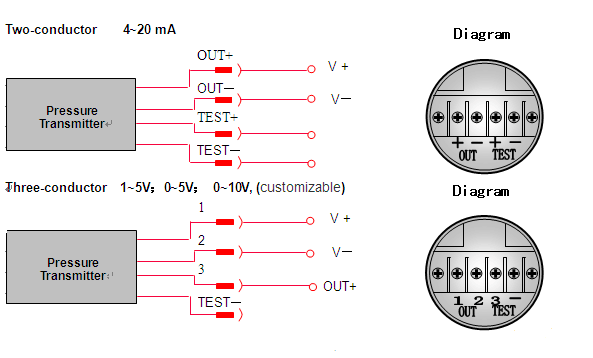

Electrical connection:



 Three-conductor  1~5V;0~5V; 0~10V, (customizable)
Ordering code: model- range & type-rated output-accuracy-pressure connection-electrical connection-defend grade-indicator-the other requests.
   Example: QZP-S8-0/300KPaG-4/20mA-0.1%FS-M20x1.5-DIN43650-IP65-LCD***
