R12F12 Digital Thermostat for Kitchen Cabinet

Name: R12F12 Digital Thermostat for Kitchen Cabinet
Brand: all-electronics-online.com
SKU: 620003214
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	Negotiable/Piece
Trade Terms:	EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	R12F12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Measuring Range:	-40° C~70° C
Resolution:	1° C3
Accuracy:	-40° C~50° C, ± 1° C, 50°
Power Supply:	230VAC± 10%, 50/60Hz
Power Consumption:	<5W
Relay Output For Refrigerating:	30A/240VAC, Max Compressor Loading 1.5HP/240VAC
Operation Temperature:	-10° C~50° C
Storage Temperature:	-25° C~75° C

Product Description

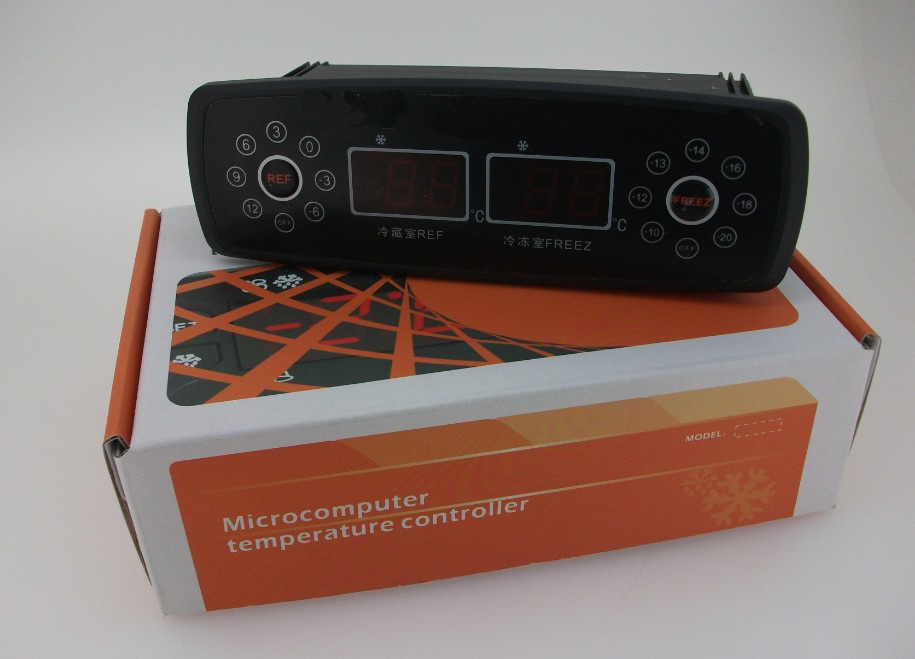

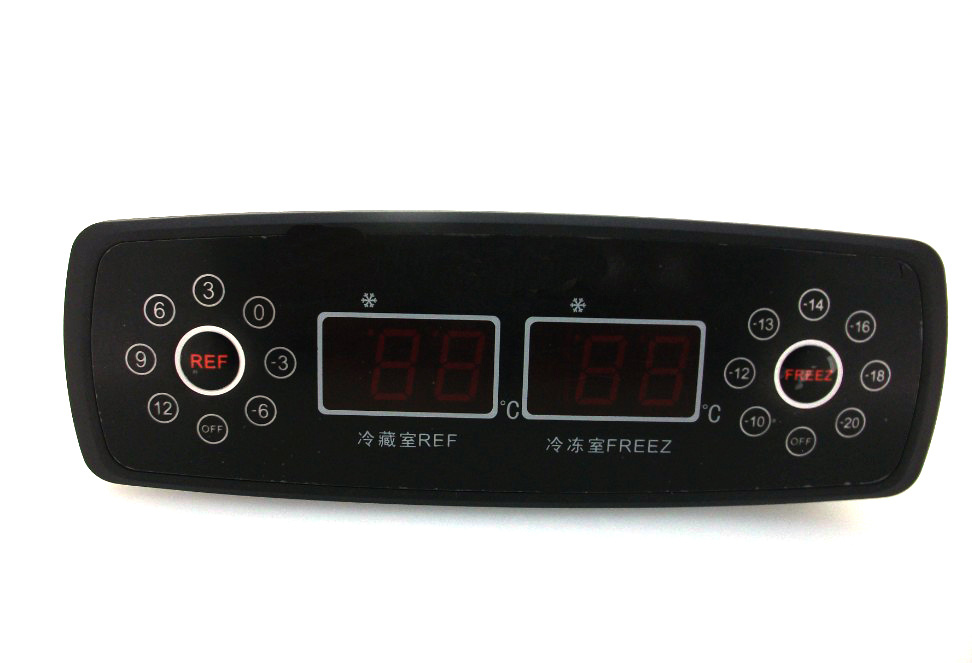

Digital Thermostat for Kitchen Cabinet R12F12

Measuring and Controlling the temperature of cold storage/cold frozen. Widely used for kitchen cabinet, and some place which need double -temperature/ double-controlling.

1. General Description

Temperature controllers could measure and control dual-way temperature (refrigerating and freezing cabinets), and has the functions of compressor start-up delay protection, code display when sensor failure. They are very easy to operate.

2. Technical parameters

Temperature measuring range: -40° C~70° C

Resolution: 1° C3 Accuracy: -40° C~50° C, ± 1° C, 50° C~70° C, ± 2° C

Power supply: 230VAC± 10%, 50/60Hz

Power consumption: <5W

Relay output for refrigerating: 30A/240VAC, max compressor loading 1.5HP/240VAC

Relay output for freezing: 30A/240VAC, max compressor loading 1.5HP/240VAC

Product size: 180mm× 60.14mm× 84.2mm

Mounting size: 157mm× 39mm

Operation temperature: -10° C~50° C

Storage temperature: -25° C~75° C

Storage humidity: 20%~85%(non-condensing)

MOQ	50 pcs
Supplying ability	5000pcs
Packaging	50PCS/CN, 42.237.260.2CM, 25KG
