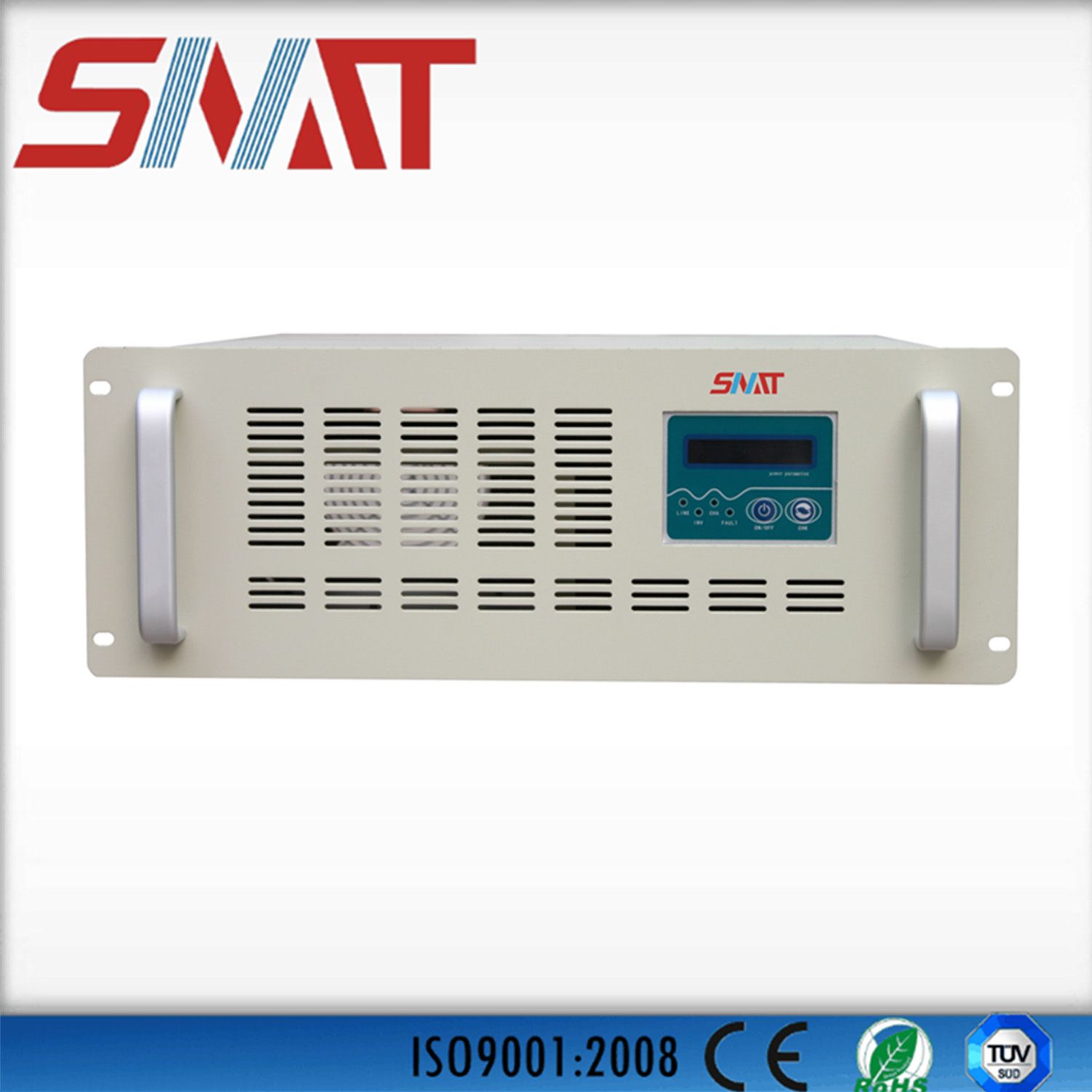

Rack Mount Inverter for Power Supply

Prod Model:	SNI-R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM/ODM Service:	Provide
Company:	Manufacturer & Trading

Product Description

Product introduction

Rack mount inverter series is a module inverter of standardized dimension, design for the power supply must be placed inside the cabinet of the user by SNAT company. uses the fully digital design concept, the real pure sine wave output, can adapt to various types of loads, design of power frequency, output voltage and frequency is very stable and can work continuously for a long time, eliminate the adverse factors by directing use of mains supply bring interruption, voltage instability, noise interference and lightning invasion etc., and overcomes the defect of power supply time is short for small inverter, to ensure electricity equipment working continuous and reliable. Equipped with sine wave inverter power source is the best guarantee of system safe and reliable operation


Application

widely be used in developmental unit room,telecommunications, mobile, unicom, aerospace, railway, finance management, office automation, industrial automatic control, medical and health, military, scientific research, and so on need to centralized management, place and space narrow places, etc., satisfy all application of areas .


Performance characteristics:

Microcomputer (MCU) control technology, performance excellence;
Power frequency transformer design, pure sine wave ac output, strong ability to adapt to the load;
Intelligent RS232 interface, humanized digital communication;
Wide range, high precision, automatic voltage regulator
Comprehensive protection function (overload, short circuit, overvoltage, undervoltage, overtemperature)
Simple LED display with LCD display, equipment running status be clear at a glance
Power grid adaptable, applicable to the generator
Intelligent battery management, overcharge protection, prolong the service life of the battery

Terminal parameters:


Model:SNI-R	2U	3U	4U	5U
Rated power(W)	300W/500W/ 800W/1000W	1500W/2000W	3000W	5000W
DC voltage(VDC)	24V/48V	48V/96V/220V
Input voltage	160-265VAC
Input frequency	45-65 Hz
Output voltage	220VAC±5%
Output waveform	Pure Sine wave
Output frequency	50Hz±1%
Switching time	5ms
Charging current	Max 15A
Inverter output protection	input is too high/low voltage protection, DC under-voltage protection, peak surge protection, overload protection: 100-120% for 30 seconds; > 120% of 100 milliseconds.> 150%, 50 milliseconds; Output short circuit < 150 microseconds.
Noise	< 45dB
Run environment temperature	0-40
storage environment temperature	-15 - +50
Run/storage environment relative humidity	0-90% No condensation
Runtime environment at high altitude	0-3,000meters
Storage environment at high altitude	0-15000 m
Dimensions D*W*H(mm)	435*484*88	485*484*132	485*484*176	485*484*220
Packaging size(mm)	540*525*210	610*540*260	590*540*330	590*540*375
N.W/G.W(kg)	16.7/18.3	27.3/29.8	41/49	56.1/63.8
