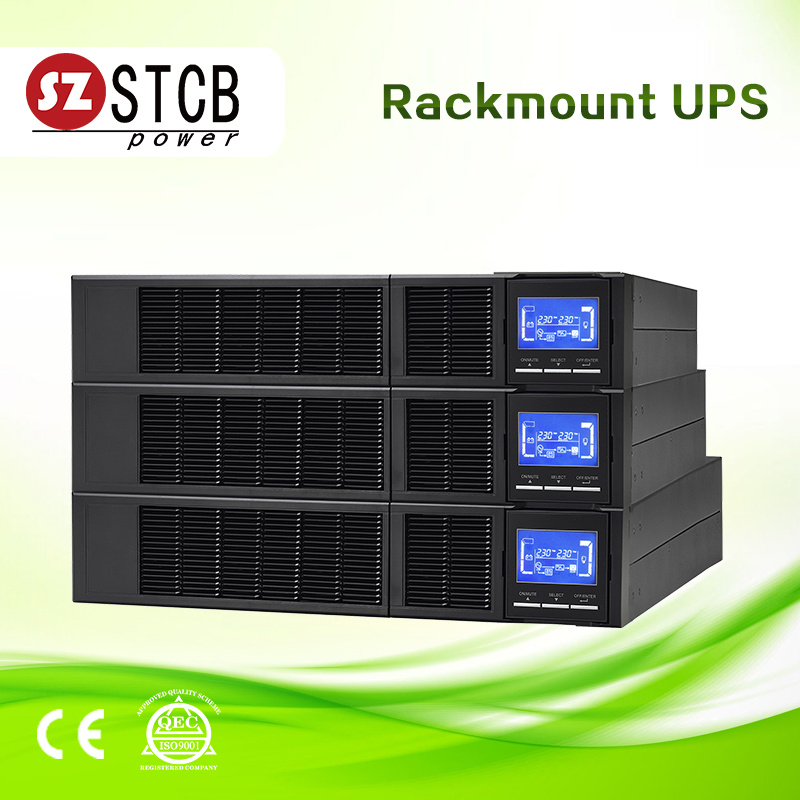

Rack Mount Online UPS for Computer and Servers
| Price: |
US $ 120-450/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GR11 series ups |
| Product Feature: |
Rack Mount |
| Install Type: |
Rack Mount and Tower Transferable |
| Power Capacity: |
8000W |
| Transfer Time: |
0 Ms |
| Power Factor: |
0.9 |
| Input Voltage: |
200V/208V/220V/230V/240V |
| Output Voltage: |
200V/208V/220V/230V/240V |
| External Battery Pack: |
Support |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Application: |
Computer Server |
Product Description
Rack Mount Online UPS for Computer and Servers
Product Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
S
3. Output power factor correction
4. Wide input voltage range(110-300VAC)
5. Converter mode available
6. ECO mode for energy saving only available for 1-3KVA models
7. Generator compatible
8. Adjustable charging current via LCD or software(1A-6A)
9. Emergency power off function(EPO) only available for 6K/10K models
Comprehensive display allows easy monitoring access of UPS status
Specification:
| Model | GR11-6K(L) | GR11-10K(L) |
| Capacity | 6KVA/4800W | 10KVA/8000W |
| Input | Nominal Voltage | 208/220/230/240VAC |
| Voltage Range | 110-300VAC±3% at 50% load
176-300VAC±3% at 100% load |
| Frequency | 40-60Hz/50-70Hz |
| Power Factor | 0.99 |
| Output | Voltage | 208/220/230/240VAC |
| Voltage Regulation | ±1% |
Frequency Range
(Synchronized Range) | 46-54HZ or 56-64HZ |
Frequency Range
(Batt. Mode) | 50HZ±0.1HZ or 60HZ±0.1HZ |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≤3% THD(Linear load) ≤6% THD(Non-linear load) |
| Transfer Time | 0ms |
| Wave Form | Pure Sinewave |
| Efficiency | AC Mode | 89% | 90% |
| Battery Mode | 88% | 89% |
Battery
(Standard Model) | Battery Type | 12V7AH | 12V9AH |
| Numbers | 16PCS | 16PCS |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | Default:1.0 A ± 10%, Max.:2.0A ± 10% |
| Charging Voltage | 218.4 VDC ± 1% |
Battery
(Long-run Model) | Battery Type | Depending on the capacity of external batteries |
| Numbers | 16-20** (adjustable) |
| Charging Current | Default:4.0 A ± 10%, Max.:6.0A ± 10% |
| Charging Voltage | 273 VDC ± 1% (based on 20 pcs batteries) |
| Indicators | LCD Panel | UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
| Alarm | Battery Mode | Sounding every 4 seconds |
| | Low Battery | Sounding every second |
| | Overload | Sounding twice every second |
| | Fault | Continously sounding |
Physical
(Standatd Model) | Dimension (mm) | UPS Unit:500*438*88(2U)
Battery pack:668*438*88(2U) | UPS Unit:580*438*133(3U)
Battery pack:668*438*88(2U) |
| Net Weight(kgs) | UPS Unit:15
Battery Pack:40 | UPS Unit:18
Battery Pack:48 |
Physical
(Long-run Model) | Dimension (mm) | 500*438*88 (2U) | 580*438*133(3U) |
| Net Weight(kgs) | 15 | 18 |
| Environment | Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 55dBA @ 1 Meter | Less than 58dBA @ 1 Meter |
| Management | Smart RS232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8,
Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
SHENZHEN SMARTKEY POWER Co., Ltd / SHENZHEN SANTAK CASTLE POWER SUPPLY Co., Ltd. is a professional engaged in an uninterruptible power supply (UPS), small uninterruptible power supply, solar inverter, solar home system, valve control maintenance free lead-acid battery, voltage regulator design, products such as the production, sales and service company 16 years ago, and has a good reputation in the local market. Professional R & D team and professional export team. The United States and Germany, battery, UPS power supply technology and reserves of high quality and efficiency to adapt to market research and management team and the development of industry demand, universities and scientific research institutions established extensive and close relations of cooperation, research and development to ensure the sustainable development of enterprises and high-tech products.
DC UPS is a backup protection power for network communication equipment. It can be widely applied to various low-power DC devices, such as routers, modems, IP cameras, closed-circuit television monitoring and POE switches, so as to ensure network communication in the case of blackout continuity, and also to charge mobile phones and tablet computers.
UPS has 16 years of experience in UPS production and sales, and has many rich experience in UPS pre-sale service after many years of operation and development in many parts of China and Europe, such as North and South America, South Asia, Middle East, Africa and many other fields. 16 years of industry struggle to build our technical team, at any time to provide customers with high quality power solutions and solutions.
The use of clean energy, such as inverting solar energy, is the trend of future energy development, and plays an important role in energy conservation and environmental protection. We have entered the solar home industry to produce high frequency and high frequency solar inverters to meet the needs of customers in different regions.
The annual sales volume in 2016 is about $4 million 500 thousand.
Shenk is still developing, is still in progress, not only is the company with the boss, and we have been in the staff. Along the way, people have experienced a lot of Shenk, forward, also has the growing stagnation; Family, also have a family of regret to leave; Have to climb the joy, also occasionally fall pain.
In this bumpy road, is the achievement of our dream journey shenk!
