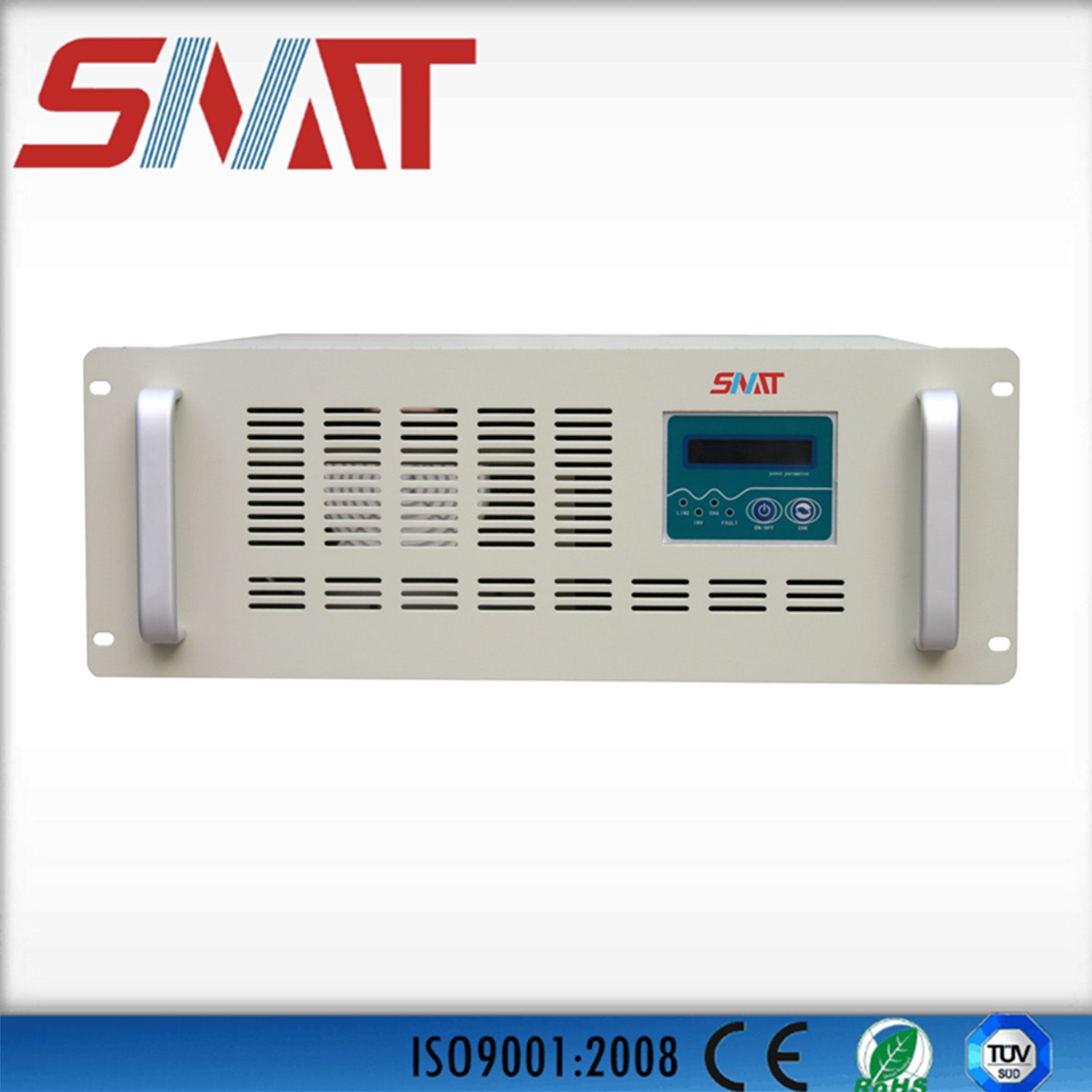

Rack Type Sine Wave Power Inverter for Solar System

Prod Model:	JF-2U
Display:	LED & LCD
Application:	Home, Industrial, Commercial
Condition:	New
OEM/ODM:	Accept
MOQ:	1unit

Product Description

Rack Type Sine Wave Power Inverter for Solar System

PRODUCT OVERVIEW
As a modular inverter with standard external dimensions, the product is designed by SNAT for the users needing to mount a power supply in the cabinet. It applies to different types of loads because of its full digital design and real pure sine wave output. With power-frequency design and highly stable output voltage and frequency, it can operate continuously for a long time. Thus, it avoids the disadvantages of direct use of the mains supply, such as interruption of power supply, voltage instability, noise, and lightning attacks, and the disadvantage of short power supply time of small inverter supplies guaranteeing continuous and reliable operation for electrical equipment. Sine wave inverter supplies are the best guarantee for the safe and reliable operation of systems. The product is now widely used in such occasions needing centralized management and with small space as the machine rooms of growing entities, China Telecom, China Mobile, China Unicom, aerospace, railways, finaancial management, office automatic, industrial automatic control, medical health, military scientific research, etc.

MAIN FEATURES
* Excellent performance because of an MCU intelligent control technology.
* A wide range of applicable loads because of power- frequency transformer design and pure sine wave AC output.
* Personalized digital communication via an intelligent RS232 interface.
* A wide range, high accuracy, and full automatic voltage stabilization.
* Overall protection functions(overload protection, short circuit protection, overvoltage protection, undervoltage protection and overtemperature protection.)
* Simple LEDs and a LCD for visualization of operation status of the equipment.
* Use with generators because of high adaptablility to power grids.
* A longer battery life because of intelligent battery management and overcharge protection.

TECHNICAL INDEXES

Model: JF-	2U
Rated power	300W/500W/800W/1000W
DC voltage	24VDC/48VDC
Input voltage	160-265VAC
Input frequency	45-65Hz
Output voltage	220VAC±5%
Output frequency	50Hz±1%
Switching time	5ms
Charge current	Max 15A
Inverter output protection	Input voltage/undervoltage protection protection, DC undervoltage prottection, peak surge protection, overload protection: 100-120%, 30s; >120%, 100ms; >150%, 50ms; output short circuit <150μs.
Noise	<45dB
Ambient temperature for storage	0-40ºC
Ambient temperature for storage	-15- +50ºC
Relative humidity for operation/storage	0-90%(no condensation)
Altitude for operation	0-3,000m
Altitude for storage	0-15,000m
Product dimensions: D*W*H(mm)	435*484*88
Packing dimensions: D*W*H(mm)	540*525*210
Net weigh/gross weight(KG)	16.7/18.3
