| Prod Model: |
heating element |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
300-1500W |
| Dia: |
8-12mm |
| Peak Wave Length: |
2-9.5 Microm |
| Heating Unit: |
Carbon Fiber |
| Lifetime: |
Over 5000 Hours |
| Surface Treatment: |
Clear, Golden Plated or Coated White Processing |
| Structure Material: |
Non-Metallic Material |
| Heat Transfer Surface: |
Tubular Heat Exchanger |
| Principle: |
Infrared Heating |
Product Description

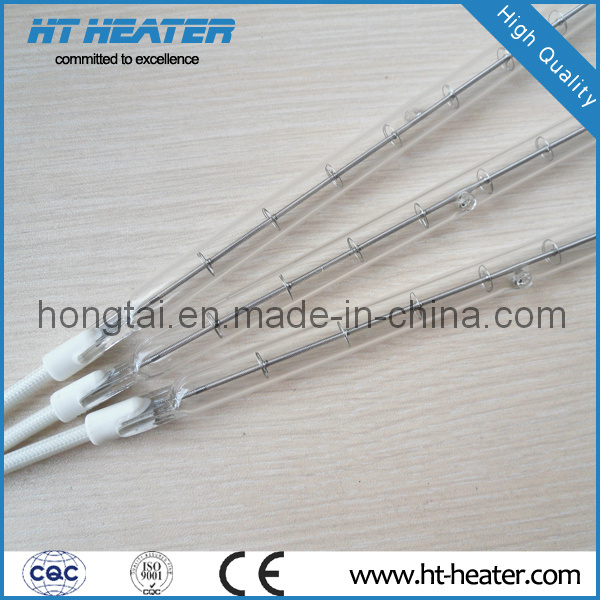

Radiant electric heating element1 IntroductionQuartz carbon fiber infrared heating lamp is a new type infrared radition product comparing to traditional metal wire and halogen infrared heating lamp. It applys imported carbon fibe as heating unit and the main peak value is 2-9.5 micron. Its color and lustre are downy with small visible light intensity. The startup current is small. Electric convension efficiency is high, and the energy saving effect is remarkable. The lifetime is over 5000 hours. Emanatory farinfrared light are absorbable by human body, clothing, water, etc. The heat loss in the heat transfer process is low. It doesn't have light pollution and stimulate eyes or burn skin.
2 Features1. Emanatory farinfrared light are absorbable by human body, clothing, water, etc.
2. The heat loss in the heat transfer process is low.
3. It doesn't have light pollution and stimulate eyes or burn skin.
4. Small starting current
5. Resistance to vibration
6. Energy-saving
7. Long lifetime
3 ApplicationsIndustrial machinery
01. High temperature curing for glue and printing ink
02. PET bottle blowing and laminating
03. Paper drying
04. Wood drying and preheating before painting
05. Plastic softening and synthesis cable production
06. Industrial production oven
07. Car painting
08. High temperature disinfection
Food device
01. Food baking heating and heating preservation
02. Flavor Oven
Healthy
01. Beauty apparatus, infrared physical therapy care
4 When you inquiry, pls sspecify the following details
1. Diameter, total length, voltage, power, working temperature
2. Termination zone, how you want the heater to be connected with the electricity (screws, cable, cap etc. )
3. Surface quartz tube color
4. Connection
5. It is perferred to offer a drawing with all parameter

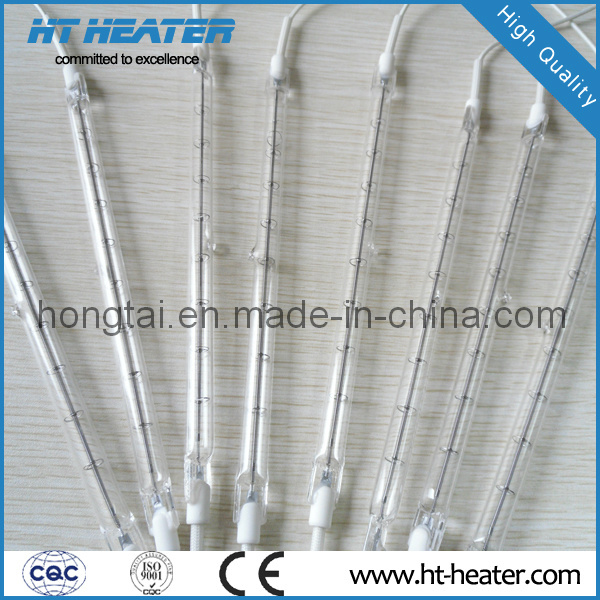

| Quartz c arbon fiber infrared straight tube |
| Model | Power (W) | Voltage
(V) | Color temperature
(K) | The peak wavelength
(um) | Life
(H) | Diameter
(mm) | Size
(mm) |
|
| LW-1 | 300 | 100-240 | 750 | 4-9.5 | 6500 | 8-10 | 250-600 |
| LW-1 | 500 | 100-240 | 980 | 3.0-9.3 | 6500 | 10-11.5 | 250-600 |
| LW-1 | 600 | 100-240 | 1000 | 2.8-8 | 6000 | 10-11.5 | 250-600 |
| LW-1 | 800 | 100-240 | 1050 | 2.7-7.6 | 6000 | 10-11.5 | 350-800 |
| LW-1 | 900 | 100-240 | 1100 | 2.6-5.5 | 5000 | 10-11.5 | 350-800 |
| LW-1 | 1000 | 100-240 | 1200 | 2.5-5 | 5000 | 10-11.5 | 350-800 |
| LW-1 | 1200 | 100-240 | 1250 | 2.3-4.8 | 5000 | 10-11.5 | 550-1000 |
| LW-1 | 1500 | 100-240 | 1300 | 2.3-4.5 | 5000 | 10-11.5 | 550-1000 |
| Quartz carbon fiber infrared twin tube , c arbon r ing |
| Model | Power (W) | Voltage
(V) | Color temperature
(K) | The peak wavelength
(um) | Life
(H) | Diameter
(mm) | Size
(mm) |
|
| LW-CS | 300 | 100-120 | 700 | 4.25-5.5 | 6500 | 10-12 | 60-80 |
| LW-CS | 500 | 100-120 | 800 | 4-5 | 6500 | 10-12 | 60-80 |
| LW-CS | 600 | 100-120 | 900 | 3-5.5 | 6000 | 10-12 | 60-100 |
| LW-CS | 900 | 100-120 | 950 | 2.5-5.5 | 5000 | 10-12 | 80-120 |
| LW-CS | 1000 | 100-120 | 1050 | 2.6-5.2 | 5000 | 10-12 | 100-140 |
| LW-CS | 1200 | 100-120 | 1100 | 2.5-5 | 5000 | 10-12 | 100-160 |
| LW-CS | 1500 | 100-120 | 1250 | 2-4.6 | 5000 | 10-12 | 120-160 |
| LW-CS | 300 | 220-240 | 850 | 3-6 | 6500 | 10-12 | 80-100 |
| LW-CS | 600 | 220-240 | 1000 | 2.5-5.5 | 6000 | 10-12 | 80-100 |
| LW-CS | 800 | 220-240 | 1100 | 2.2-5.2 | 5000 | 10-12 | 90-120 |
| LW-CS | 1000 | 220-240 | 1250 | 2-4.6 | 5000 | 10-12 | 90-140 |
| LW-CS | 1200 | 220-240 | 1350 | 2-4.4 | 5000 | 10-12 | 100-160 |
