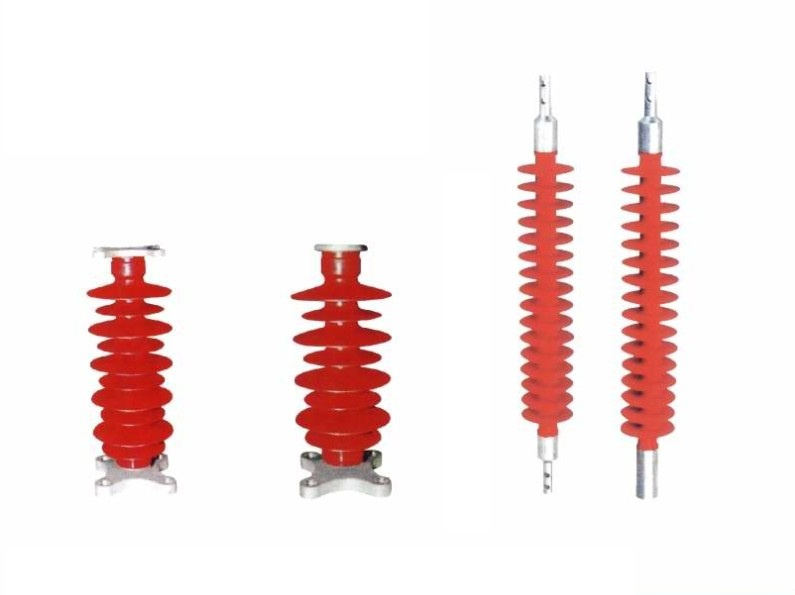

Railway Composite Insulator (FQX Series)

Name: Railway Composite Insulator (FQX Series)
Brand: all-electronics-online.com
SKU: 707676445
Availability: InStock
Rating: 5 (99 reviews)

Price:	US $ 16.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQX Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Railway Insulator:	Composite Insulator
Structure:	Post Insulator
Material:	Composite Polymer
Type:	A Type Insulator
Application:	High-temperature
Brand:	Refine

Product Description

Model No.: FQX Series
Material: Silicon Rubber / Polymer
Rated Voltage: 25KV
Standard: IEC Standard

The series products are specially used for electric railway; It can effectively prevent flashover due to pollution, and lessen the job of maintenance, which is the necessary device that the porcelain type or glass type insulators can never replace.

We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.

For your reference under below is the main technical parameter of each model type.

Type	Rated Voltage (KV)	Rated Mechanism Stretch Withstand (KN)	Structural Height (mm)	Creepage Distance (mm)	Lighting Impulse Withstand BIL (KV)	Power Frequency Withstand (wet) (KV)
FQX1-25	25	60	650	1400	270	130
FQX2-25	25	20	840	1400	270	130
FQX3-25	25	20	930	1400	270	130
FQX4-25	25	20	760	1400	270	130
FQX5-25	25	60	806	1400	270	130
FQE3-25	25	20	645	1400	270	130
FQE4-25	25	20	836	1400	270	130
FQE5-25	25	20	695	1400	270	130
