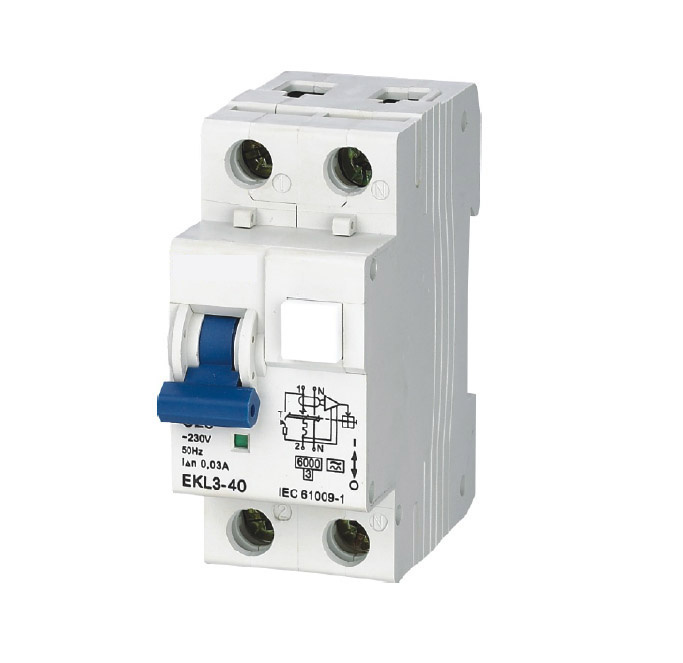

RCBO RCCB with Overcurrent Protection Ekl3-40

Prod Model:	EKL3-40
Markets:	Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	2
Certification:	CCC
Structure:	RCCB

Product Description

EKL3-40
(Electronic Type) RCBO
RCCB with Overcurrent Protection
Technical Data
Electrical Features
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated current In: 6, 10, 16, 20, 25, 32, 40A
Poles: 1P+N
Rated voltage Ue: 230/240V
Rated sensitivity I n: 0.01, 0.03, 0.1, 0.3A
Rated residual making and breaking capacity I m: 500A
Rated short-circuit capacity lcn: 4, 500/6, 000A
Break time under I n: 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4, 000A
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 300V
Pollution degree: 2
Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average 35 ): -5...+40
Storage temperation: -25...+70
Installation
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 16mm2 18-5AWG
Terminal size top/bottom for busbar: 16mm2 18-5AWG
Tightening torque 2.0 N*m 11In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top
