RCBO RCCB with Overcurrent Protection Ekl5-63

Prod Model:	RCBO RCCB with Overcurrent Protection EKL5-63
Markets:	Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	2
Certification:	CCC
Structure:	RCCB

Product Description

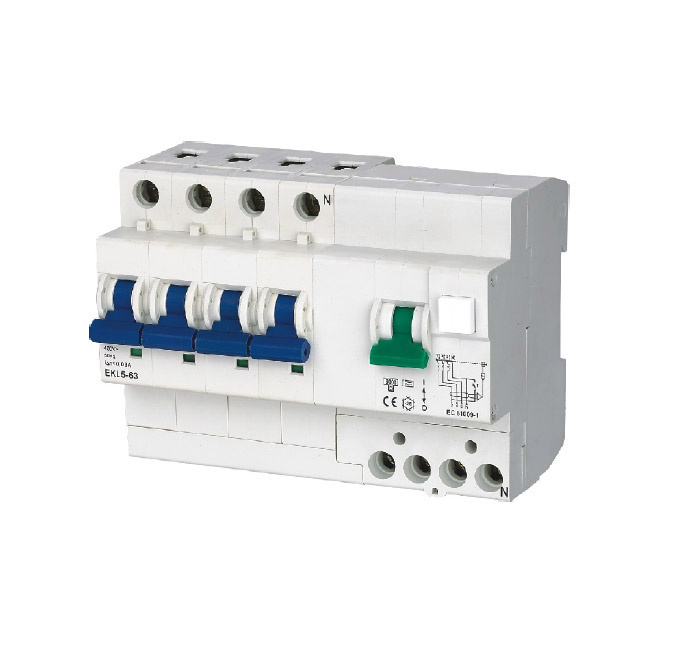

EKL5-63
(Electronic Type) RCBO
RCCB with Overcurrent Protection
Technical Data
Electrical Features
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated c urren t In MCB+add-on RCD block: 6, 10, 16, 20, 25, 32, 40, 50, 63A
Poles: 2P(1P+N), 4P (3P+N)
Rated voltage Ue: 240/415V
Rated sensitivity I n MCB+add-on RCD block: 0.03, 0.1, 0.3A
Rated residual making and breaking capacity I m: 500A(In 40A) 630(In 40A)
Rated short-circuit capacity lcn: 4, 500/6, 000A
Break time under I n: 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 6, 000A
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average 35 ): -5...+40
Storage temperation: -25...+70
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block)
