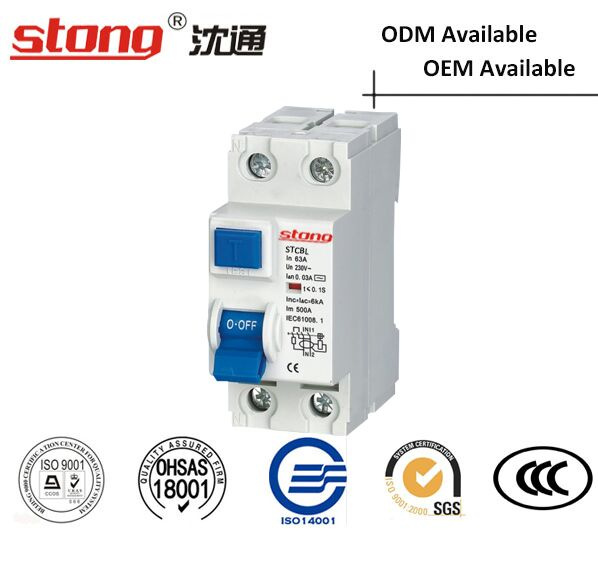

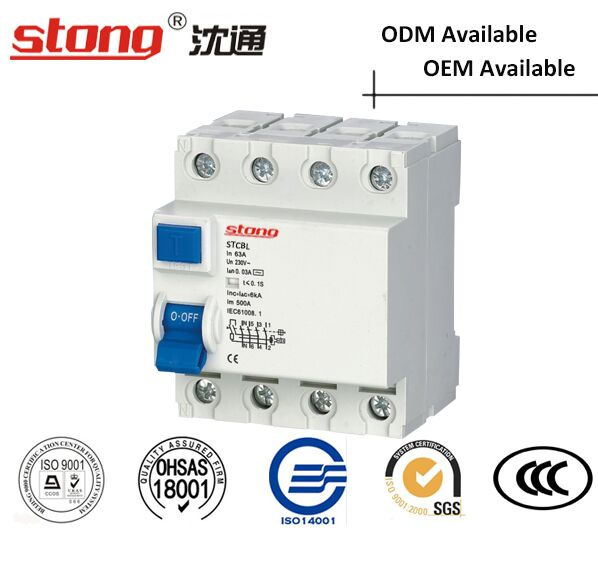

RCCB Residual Current Circuit Breaker Mini Circuit Breaker MCB

RCCB Residual Current Circuit Breaker Mini Circuit Breaker MCB
Price: US $ 2.1-2.2/Piece
Min Order: 300/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: stcbl 4p
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: High-Speed Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Poles Number: 4
Certification: CCC

Product Description

Advantages:
                     1.Our Company Has Great Reputation In The Market.
                           2.Good Quality Guaranteed With Reasonable Price.
                           3.OEM, ODM Are Welcomed.
                           4.Goods Will Be Delivered On Time.

                           5.Factory Selling Directly

Description

Electrical Features
Type (wave form of the earth leakage sensed): AC, A,AC~S,A~S
Rated current In: 25, 40, 50, 63A
Poles: 2P, 4P
Rated voltage Ue: 240/415V
Rated sensitivity In: 0.03, 0.1, 0.3A
Insulation voltage Ui: 500V
Rated residual making and breaking capacity
Im: 500A(In=25A/40A) 1000A(In=50A/63A/80A/100A)
Short-circuit current Inc=Ic: 6000A
SCPD fuse:
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2.5kV

Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Fault current indicator: Yes
Protection degree: I P20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Pollution degree: 2

Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 35mm2 18-3AWG
Terminal size top/bottom for busbar: 35mm2 18-3AWG
Tightening torque 2.5 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom

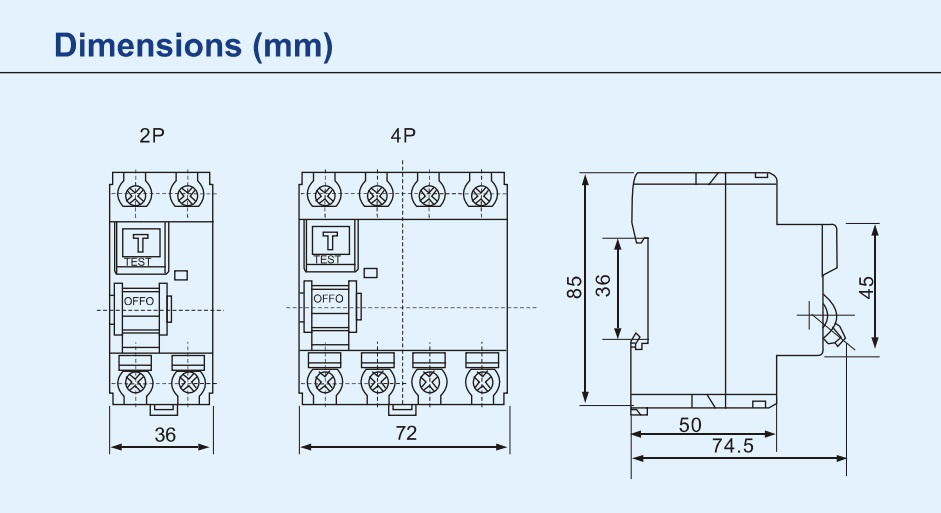

Dimensions
