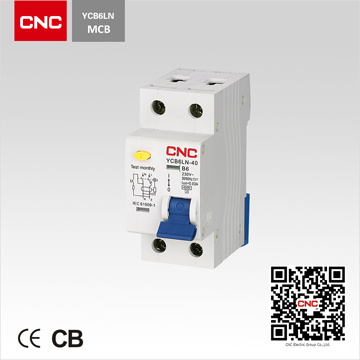

RCCB Residual Current Circuit Breaker (YCB6LN-40)

Name: RCCB Residual Current Circuit Breaker (YCB6LN-40)
Brand: all-electronics-online.com
SKU: 717720065
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 8.1-8.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB6LN-40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCCB
Certification:	CCC
Installation:	DIN Rail
Poles Number:	1p+N
Function:	RCCB

Product Description

General
1. Protection against overload and short-circuit currents
2. Protection against the effects of sinusoidal alternating earth fault currents
3. Protection against indirect contacts and additional protection against direct
Contacts.
4. Protection against fire hazard caused by insulation faults
5. Used in residential building
6. Classified as follows according to the type of instantaneous release: Type B(3-5)ln,
Type C(5-10)ln

Type	Standard		lEC/EN 61009-1
Electrical features	Rated current In	A	1,2,3,4,6,10,16,20,25,32,40
	Type (wave form of the earth leakage sensed)		A,AC
	Poles	P	1P+N
	Thermo-magnetic release characteristic		B,C
	Rated voltage Ue	V	230
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity Icn	A	4500
	Break time under IΔn	s	≤0.1
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1min	kV	2
	Rated sensitivity IΔn	A	0.01,0.03,0.1
	Rated residual making and breaking capacity IΔm	A	500
	Pollution degree		2
Mechanical features	Electrical life	t	4000
	Mechanical life	t	4000
	Protection degree		IP20
Installation	Terminal connection type		Cable/U-type bar/Pin-type busbar
	Terminal size top / bottom for cable	mm²	16
	Terminal size top / bottom for cable	AWG	18-5
	Terminal size top / bottom for busbar	mm²	25
	Terminal size top / bottom for busbar	AWG	18-3
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top
