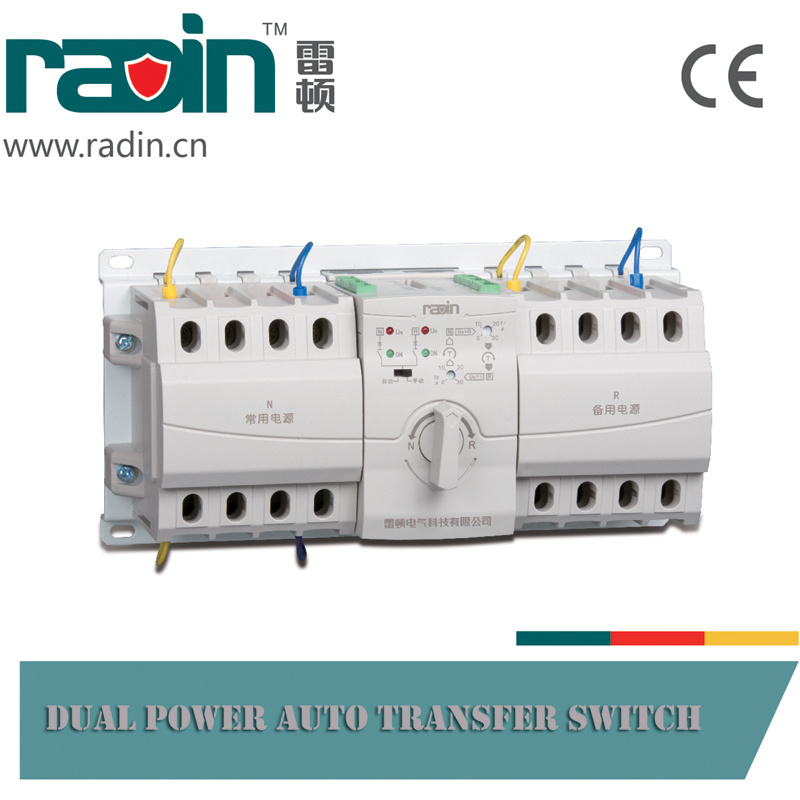

Rdq3nx Series Dual Power Automatic Transfer Switch (ATS)
| Price: |
US $ 37-39/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
RDQ3NX |
| Rated Current: |
63A |
| Rated Voltage: |
AC150-265V |
| Frequency: |
50/60Hz |
Product Description
Rdq3nx Series Dual Power Automatic Transfer Switch (ATS) The new designed RDQ3NX-A/B/C/D series Auto transfer switch is based on deep development on power transfer switch, make new design to product structure, controller, executive unit, electromagnetic compatibility etc, completely overturned the traditional dual power atuo transfer switch design concept. It is a one of the smallest ATS, compact construction, easy for installation; Modularized design, enhance the power supply continuity, energy saving effect is better than other similar product. It have passed "CCC" test certificate and accord with KEMA qualification standard.Basic Structure RDQ3NX-A/B/C/D series ATS is comprised with two MCB and accessories, mechanical interlock transmission mechanism, intelligent controller. It have A,B,C,D four type controller, A type is basic type, B is intelligent type, C/D is improved type, based on A/B type increased with three phase monitoring function, meanwhile the MCB inside the ATS have its original over load and short circuit protection function. Product Features1. Product with modularized design, executive unit, transmission mechanism, control circuit completely independent, easy for replacement.
2. Mechanical transmission device adopt gear transmission, completely eliminate the possibility of closing at same time;
3. Compact appearance, it is one of the smallest product on the market;
4. The control circuit layout adopt working power and sampling power separate with single chip control, to overcome the electromagnetic interference from the hardware construction;
5. Working power voltage range: AC200-400V;
6. Less power consumption, max. peak power loss 4.8W, only 20% of other similar products;
7. Product have complete functions, with generator start, fire linkage, ON delay functions etc.;
8. Modularized design, good components interchange performance, easy installation;
9. Can use various executive circuit breaker; Technical Specification | Model | RDQ3NX-A/B/C/D |
| Working Voltage | AC150-265V 50/60Hz |
| Operation Mode | Auto and Manual |
| Transfer Mode | Auto Transfer with Auto Recovery |
| Transfer time delay | 0.2s Fixed / 0~30s adjustable |
| Rated Current | 6A to 63A 3P and 4P |
RDQ3NX Series Advantages:1. Product with modularized design, executive unit, transmission mechanism, control circuit completely independent, easy for replacement.
2. Mechanical transmission device adopt gear transmission, completely eliminate the possibility of closing at same time;
3. Compact appearance, it is one of the smallest product on the market;
4. The control circuit layout adopt working power and sampling power separate with single chip control, to overcome the electromagnetic interference from the hardware construction;
5. Working power voltage range: AC200-400V;
6. Less power consumption, max. peak power loss 4.8W, only 20% of other similar products;
7. Product have complete functions, with generator start, fire linkage, ON delay functions etc.;
8. Modularized design, good components interchange performance, easy installation;
9. Can use various executive circuit breaker; Working ConditionsAmbient Temperature
Max. +60ºC
Min. -20ºC
24h average not more than +35ºC
Altitude : Not more than 2000m
Atmospheric conditions: humidity not more than 50% at max.+40ºC, higher humidity is allowed at lower temperature, at most wet month, the average max humidity is 90% at the average min temperature +25ºC, and have considered the condensation on the product surface due to temperature variation. Dlivery TermsShipment & Express & Air express
