Real Time Tracking System for Vehicle Quad Band Web Based GPS Tracker Tr02

Name: Real Time Tracking System for Vehicle Quad Band Web Based GPS Tracker Tr02
Brand: all-electronics-online.com
SKU: 802742485
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	US $ 34/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TR02
Function:	GPRS
Warranty:	5 Years
Monitoring Range:	5m
GPS Sensitivity:	-144dBm
GSM Network:	850/900/1800/1900MHz
Material:	Aluminum
Weigh:	45g
Size:	90X45X13.5(mm)
Certifications:	Ce, RoHS
Color:	Black
Type:	GPS Tracker
Use:	Automotive

Product Description

Real Time Tracking System for Vehicle Quad Band Web Based GPS Tracker Tr02

Support:

GPS + GSM + GPRS wireless network

High Sensitive Chip

Built in Antenna

Locating & Tracking

Realtime tracking

Automatically Failure Recovery

Password settings

Main Features
GPS + GSM + GPRS wireless positioning system
Quad band GMS frequency for global use
Built-in high sensitive GPS chipset
Built-in GSM & GPS antenna
Real-time tracking
Auto start when power connected
Built-in watchdog function, auto reboot when accident happens
Built-in switch power supply, with wide voltage input
Built-in acceleration sensor, intelligent power saving and static drifts resisting
Installing method: covert / open

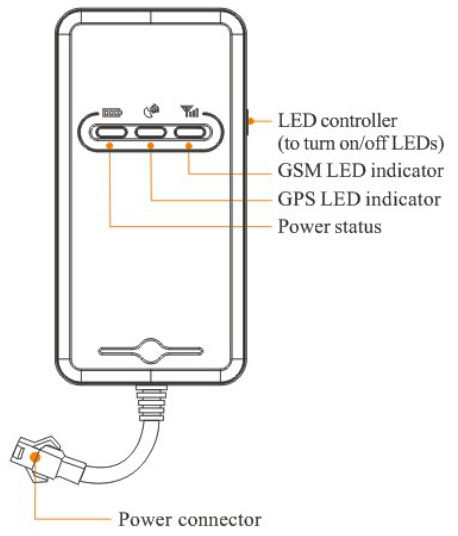

Three LED indicators: GPS - Blue; GSM - Green; Power - Red
Check location via platform service

Specification

Dimension	86.6(L) x 44(W) x 13.6(H) mm
Weight	50.5g
Operation Temperature	-20ºC - 70ºC
Operation Voltage	9-36vDC
Humidity	20% - 80%
GSM Frequencies	850/900/1800/1900 MHz
GPRS	Class 12
GPS Sensitivity	-159dBm
Acquisition Sensitivity	-144dBm
Position Accuracy	10m
TTFF (Open Sky)	Cold Start: < 38s
	Warm Start: < 32s
	Hot Start: < 2s
GSM/GPS Antenna	Built-in design
LED Indicator	GSM-green, GPS-blue, Power-red
Data Transmit	TCP, SMS
Non-movement Detection	Movement alarm based on built-in 3D motion sensor
Mileage Report	Track by time/distance interval

Installation

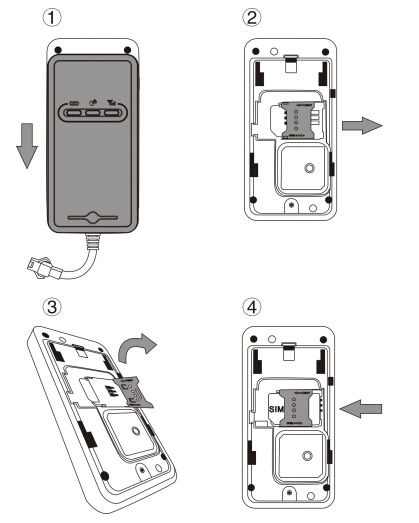

Insert the SIM Card
Place the SIM card into the device with the gold-colored side facing down.
Note: Make sure there is enough credit on the SIM card. It is also important that the SIM card has Called ID Display
function. If you will be using the GPRS function, you should pay attention to the current SIM card GPRS charge.

Package include:
1* GPS Tracker TR02
1* Charging Cable
1* User manual
