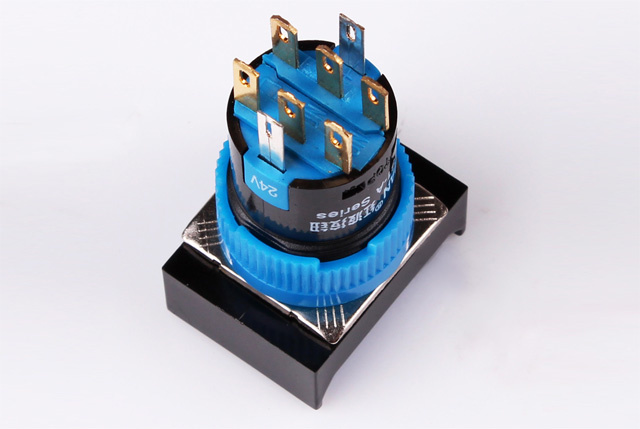

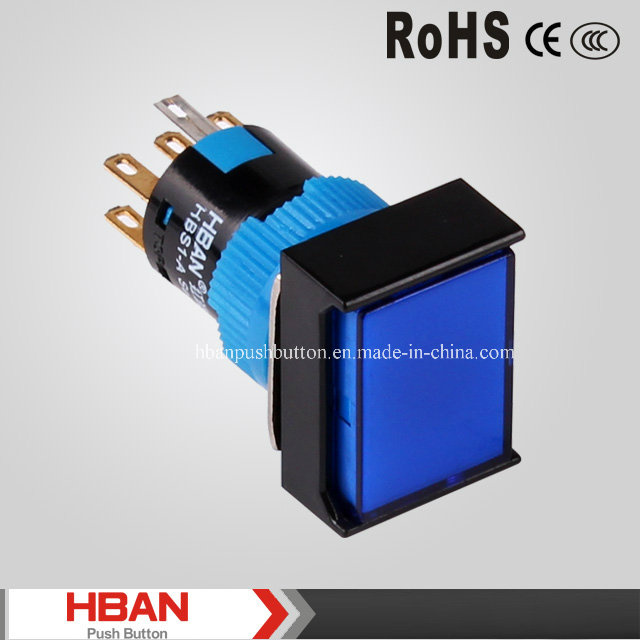

Rectangular on-off Plastic Push Button Switch

Name: Rectangular on-off Plastic Push Button Switch
Brand: all-electronics-online.com
SKU: 693056222
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 0.1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBS1-AJ-11, 11Z, 11D, 11DZ, 22, 22Z, 22D, 22DZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mounting Hole Size:	16mm
Rating Value:	5A/250V AC
Head Shape:	Round/Square/Rectangle
Terminal Type:	Pin Terminal
Crust Material:	Plastic
Head Color:	Red/Green/Blue/White/Orange/Yellow
Contact Configuration:	1no1nc/2nocnc
Operation Type:	Momentary/Latching
Protection Degree:	IP40,IP65
Illuminated Type:	Head Illuminated
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	Hban
Certification:	CE,RoHS,ISO9001
Type:	1no1nc,2no2nc

Product Description

Double Throw Pushbutton On Off Switch 16mm

Mounting hole size :16mm
Rating Value :5A/250V AC
Contact Configuration:1NO1NC/2NOCNC
Head shape:Round/Square/Rectangle
Operation Type:Momentary/Latching
Terminal type :Pin terminal
IP Degree:IP40,IP65

Packing details:

We pack 40 pieces diameter 16mm metal push button switches into 1 foam box to protect them .We supply 1 piece guarantee card with these switches.Then we packed this foam box into a kraft paper box,25boxes will be packed into a carton.
About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers,
waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control,
medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel:0086-577-62708000 Fax :0086-577-62708007

Item NO.		HBS1-AJ-11	HBS1-AJ-11Z	HBS1-AJ-11	HBS1-AJ-11DZ
Front Head Shape		Square,1NO1NC,non-illuminated,Momentary	Square,1NO1NC,non-illuminated,Latching	Square,1NO1NC,illuminated,Momentary	Square,1NO1NC,illuminated,Latching
Item NO.		HBS1-AJ-22	HBS1-AJ-22Z	HBS1-AJ-22	HBS1-AJ-22DZ
Front Head Shape		Square,2NO2NC,non-illuminated,Momentary	Square,2NO2NC,non-illuminated,Latching	Square,2NO2NC,illuminated,Momentary	Square,2NO2NC,illuminated,Latching
Terminal Type		Pin terminal (2.8x0.5mm)
Switch Type		1NO1NC/2NO2NC
Switch Specification		5A/250VAC
Contact Resistance		≤50mΩ
Insulation Resistance		≥100 MΩ
Dielectric Strength		2000V,AC 50Hz,1 min
Operating Temperature		1000V,AC 50Hz,1 min
Shock Resistance		≥10g
Operating Temperature		-25°C ~ +55°C
Mechanical Life		1,000,000 times
Electric Life		>30,000 times
Operating Stroke		About 3 mm
Protection Degree		IP40 ,IP65
Materisl	Contact	Sliver ,Sliver Alloy,Golden-plate silver
	Lamp Type	AC LED Lamp (Standard)
	LED Rated Voltage	AC/DC 6V,AC/DC12V,AC/DC/24V, AC/DC110V,AC/DC220V
Lamp Parameters	LED Color	Red,Green,Yellow,Orange,Blue,White
	Life	About 40,000 hours

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.

Tel: 0086-577-62708000 Fax: 0086-577-62708007
