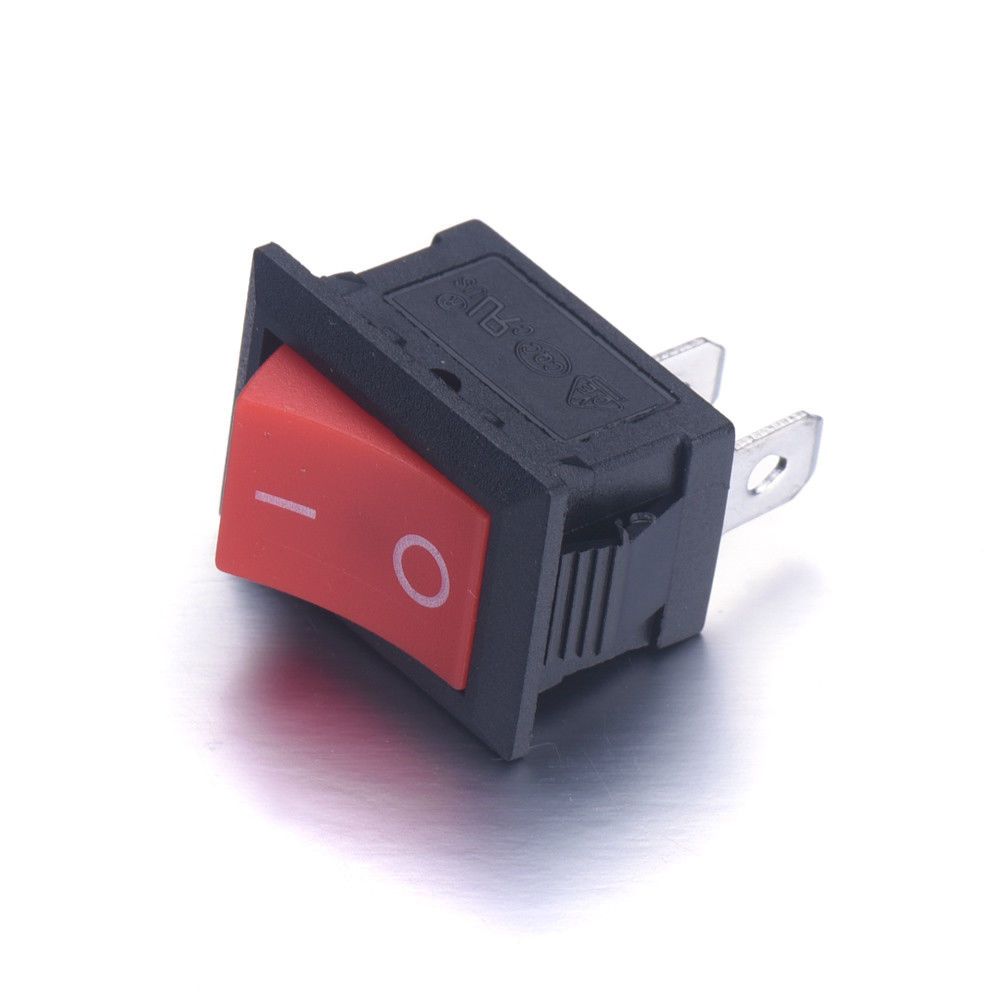

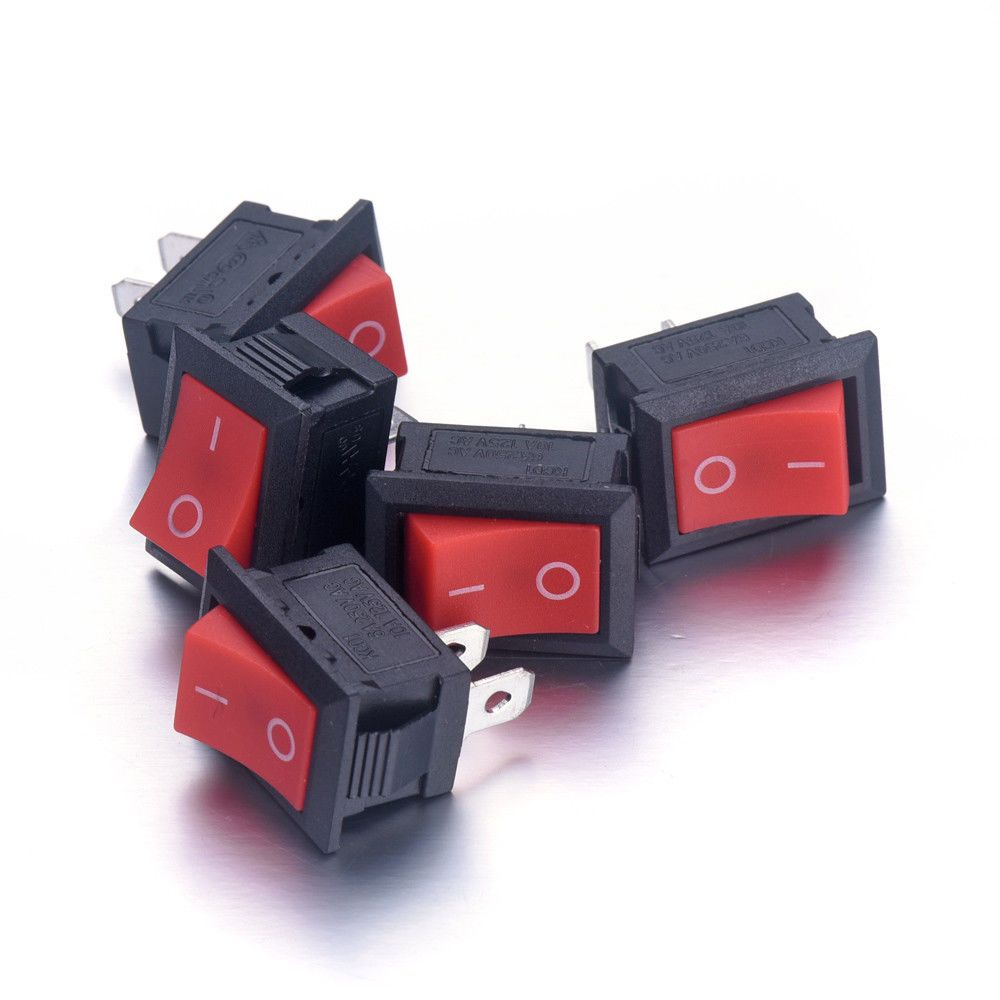

Red on-off Large Rectangle Rocker Switch Kcd1-101 250V/6A

Name: Red on-off Large Rectangle Rocker Switch Kcd1-101 250V/6A
Brand: all-electronics-online.com
SKU: 834634795
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	US $ 0.078-0.095/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KCD1-101
Usage:	Electrical Appliance
Standard:	Standard
Lamp:	Without Lamp
Color:	Red
Certification:	TUV UL
Condition:	New

Product Description

The Main Technical Parameters

Item	Mini ON OFF Rocker Switch
Mterial	PA66 /PC
Rating	10A 125VAC/6A 250VAC
Contact Resistance	≤50MΩ
Insulation Resistance	≥500VDC100mΩ
OperatingTemperature	-25C~+85C
Ambient Temperature	-10ºC~+85 ºC
Dielectric Strength	1500VAC,1 Minute
Type	ROCKER SWITCH

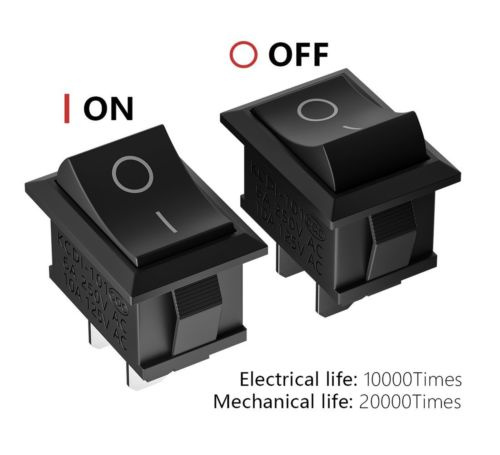

Elactric life	>10000 Cycles
Electrical Life	>50000 Cycles
Terminals & Mid pins	Copper with silver plated
Contacts	Copper with compound silver
Terminals & Mid pins	Copper with silver plated

--Production Material---

Base PLASTIC	Nylon 66 T85
Button plastic	PC
Copper parts such as terminal	Copper
Terminal surface treatment	Silver plating
Contact	Ag or Composite silver
Spring	Tungsten steel
Cover plastic	PC

Rectangular mini-rocker switch / toggle / rocker.

The snap-in mounting allows a variety of ways obstruction.

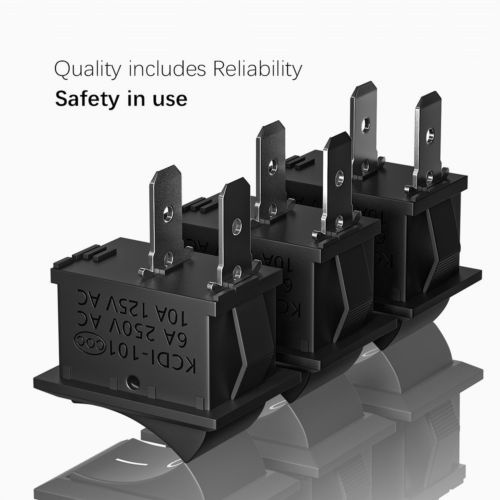

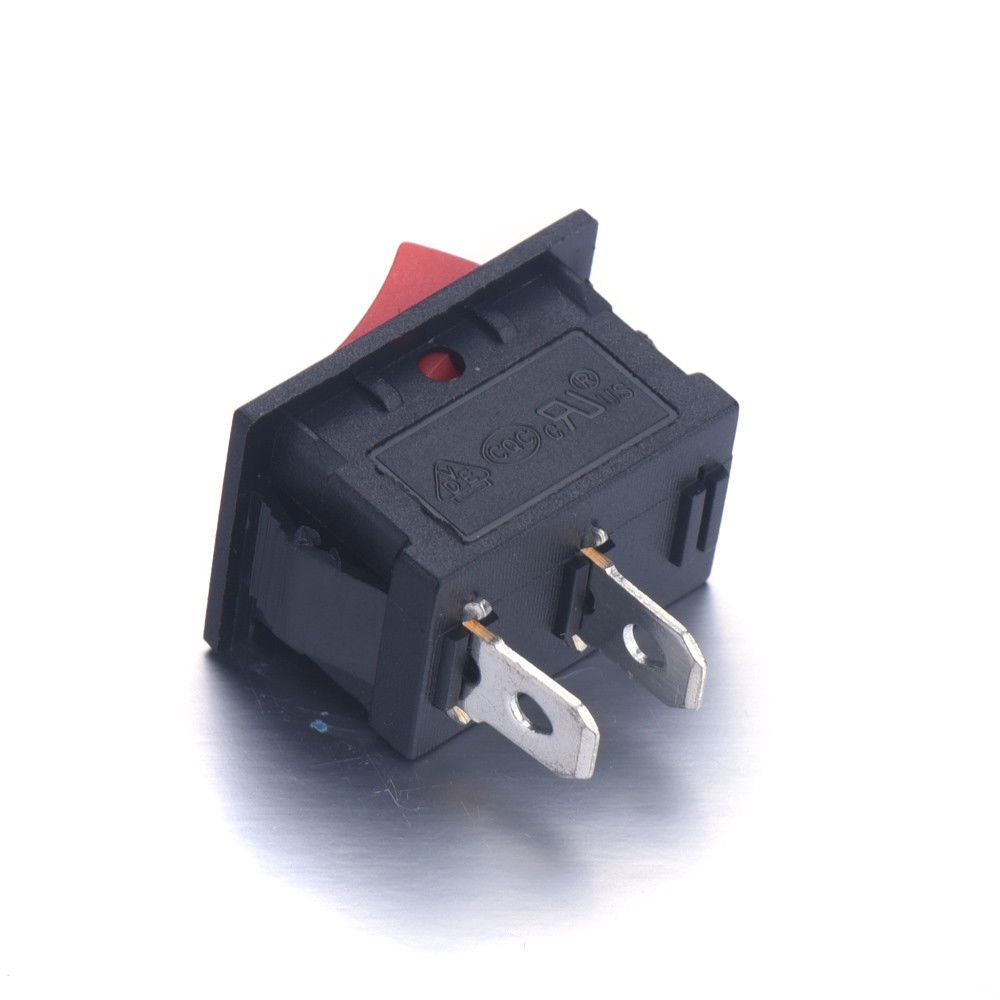

The connection is via 2 x 4,8 mm tab terminals.

Product Features

Rectangular Mini-Rocker
Snap-in mounting
Switching capacity:
AC 250V 6A
AC 125V 10A
Blade Coupling: 2 x 4,8 mm
Color: black
white position imprints
1x on / off
1 pole (2 contacts, 1x contact)

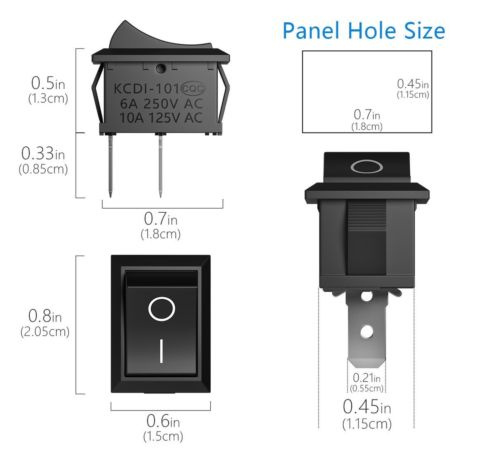

Dimensions (incl contacts.): 21 x 15 x 24 mm
Weight: 3 gr

Manufacturer

CQC KCD1-101
