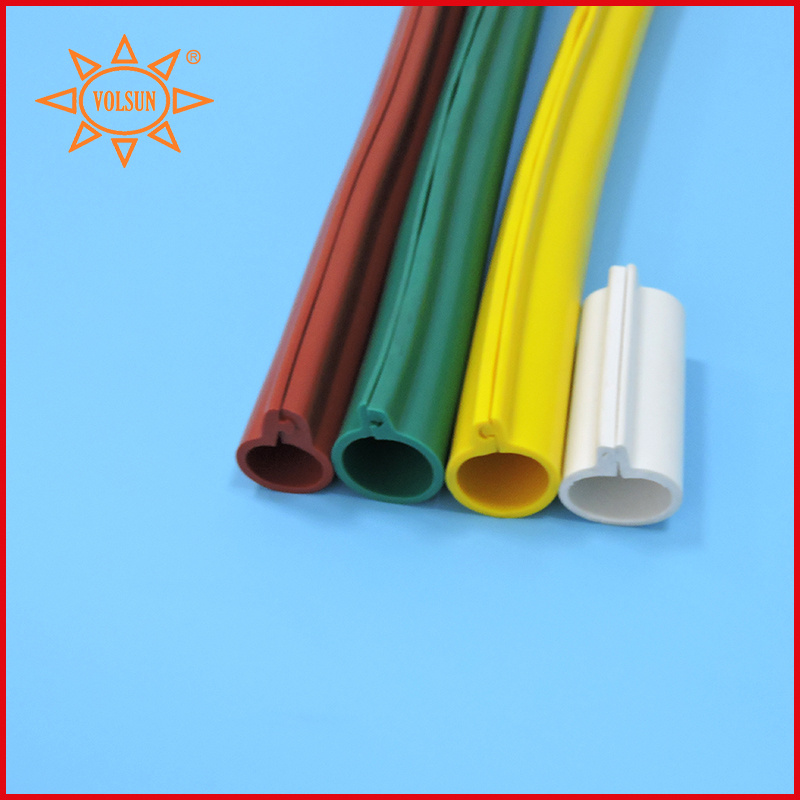

Red Silicone Rubber Overhead Line Cover for Cable Insulation
| Price: |
US $ 2-2.5/Meter |
| Min Order: |
200/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
RUBNS-OLC |
| Product: |
Red Silicone Rubber Overhead Line Cover |
| Heat Shrink Ratio: |
No Shrink, Split Line Hose/ Overhead Line Cover |
| Standard Color: |
White/ Black/ Red/ Green |
| Operating Temperature: |
-40 Degree to 200 Degree |
| Sample: |
Free for Existing Sample |
| Dielectric Constant: |
GB/T 1409-2006 |
| Electrical Strength Test: |
GB/T 1408.1-2006 |
| Application: |
Insulating Varnish |
| Type: |
Insulation Sleeve |
| Chemistry: |
Inorganic Insulation |
| Material: |
Rubber |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
220kv |
| Color: |
Red, Grey, Green |
| Brand: |
Volsun |
Product Description
RUBNS-OLC
Red silicone rubber overhead line cover for cable insulation
Description
RUBNS-OLC The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway catenary system, a significant effect in the cross-lines.
| Serial No. | Properties | Unit | Standard Data | Test Results | Test Methods |
| 1 | Electrical Strength Test | KV/mm | 20 | 22 | GB/T 1408.1-2006 |
| 2 | Volume Resistivity | Ω.cm |
1×10 14 | 2×10 14 | GB/T 1410-2006 |
| 3 | Dielectric Constant | | 2-3 | 2.3 | GB/T 1409-2006 |
| 4 | Shore Hardness | | 70±5 | 7.1 | GB/T 531 |
5
5.1
5.2 | Mechanical Properties
Before ageing
Tensile Strength
Elongation at break
After Heat ageing(180degrees C, 7d)
Tensile Strength Change
Elongation Change |
MPa
% | 200
±30
±30 |
5.5
243
13
-22 | GB/T 528 |
| 6 | Low Temperature Elongation(-15degree C , 2h) | % | 20 | 190 | GB/T 2951.4-1997 |
| 7 | Low Temperature Flexibility(-50degree C , 4h) | - | No cracks | No cracks | UL224-2004 |
| 8 | High Temperature Crack Resistance(155degree C, 2h) | - | No cracks | No cracks | GB/T2951.6-1997 |
l Product Dimensions
| LJ Stranded Wire Cross-sectional Area(Nominal) | O.D. Of LJ Stranded Wire(mm) | Silicone Rubber Sleeving Covers Models |
| 16 mm²ID | | |
| | | ID10 |
| 35 mm² | 7.50 | ID10 |
| 50 mm² | 9.00 | ID12 |
| 70 mm² | 10.80 | ID12 |
| 95 mm² | 12.48 | ID17 |
| 120 mm² | 14.25 | ID17 |
| 150 mm² | 15.75 | ID20 |
| 185 mm² | 17.50 | ID20 |
| 210 mm² | 18.75 | ID24.2 |
| 240 mm² | 20.00 | ID24.2 |
| 300 mm² | 22.40 | ID24.2 |
| 400 mm² | 25.90 | ID30 |
| 500 mm² | 29.12 | ID32 |
| 630 mm² | 32.67 | ID35 |
| 800 mm² | 36.90 | ID39.8 |
l Voltage Ratings/Wall Thickness
| Voltage(kV) | ≤10kV | ≤35kV | ≤110kV | ≤220kV |
| Thickness(mm) | 2.3mm | 2.3-3.0mm | 4.0-6.0mm | 6.0-8.0mm |
