Silicon Rubber Overhead Line Insulation Sleeving
| Price: |
US $ 0.4-0.6/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
RUBNS-OLC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Silicon Rubber Overhead Line Insulation Sleeving |
| Sample: |
Free for Existing Sample |
| Thickness: |
2.6mm |
| Electrical Strength Test: |
22kv/Mm |
| Dielectric Constant: |
2.3 GB/T 1409-2006 |
| Shore Hardness: |
71 GB/T 531 |
| High Temperature Crack Resistance: |
No Cracks |
| Usage: |
Substation Protection Works and Railway Catenary S |
| Type: |
Insulation Sleeve |
| Material: |
Silicone |
| Thermal Rating: |
200 200 |
| Maximum Voltage: |
10KV~20KV |
| Brand: |
Volsun |
Product Description

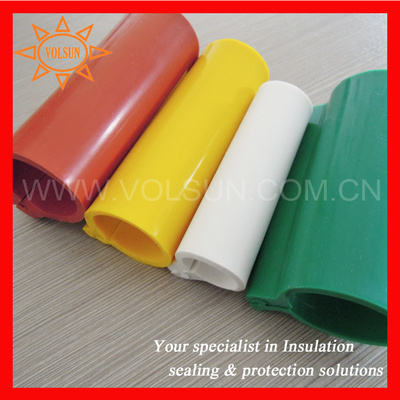

Silicon rubber overhead line insulation sleeving
Description
RUBNS-OLC The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway catenary system
, a significant effect in the cross-lines.
Technical Performance
| Serial No. | Properties | Unit | Standard Data | Test Results | Test Methods |
| 1 | Electrical Strength Test | kV/mm | ≥20 | 22 | GB/T 1408.1-2006 |
| 2 | Volume Resistivity | Ω·cm | ≥1×1014 | 2×1014 | GB/T 1410-2006 |
| 3 | Dielectric Constant | | 2~3 | 2.3 | GB/T 1409-2006 |
| 4 | Shore Hardness | A | 70±5 | 71 | GB/T 531 |
| 5 | Mechanical Properties | | | | GB/T 528 |
| 5.1 | Before heat ageing | | | |
| | Tensile Strength | MPa | ≥4.0 | 5.5 |
| | Elongation at break | % | ≥200 | 243 |
| 5.2 | After Heat ageing(180ºC, 7d) | % | ±30 | 13 |
| | Tensile Strength Change
Elongation Change | % | ±30 | -22 |
| 6 | Low Temperature Elongation(-15ºC, 2h) | % | ≥20 | 190 | GB/T 2951.4-1997 |
| 7 | Low Temperature Flexibility(-50ºC, 4h) | - | No cracks | No cracks | UL224-2004 |
| 8 | High Temperature Crack Resistance(155ºC, 2h) | - | No cracks | No cracks | GB/T2951.6-1997 |
Product dimensions
| LJ Stranded Wire Cross-sectional Area(Nominal) | O.D. Of LJ Stranded Wire(mm) | Silicone Rubber Sleeving Covers Models(mm) |
| 50 | 9.00 | 12 |
| 70 | 10.80 | 12 |
| 95 | 12.48 | 17 |
| 120 | 14.25 | 17 |
| 150 | 15.75 | 20 |
| 185 | 17.50 | 20 |
| 210 | 18.75 | 24.2 |
| 240 | 20.00 | 24.2 |
| 300 | 22.40 | 24.2 |
| 400 | 25.90 | 30 |
| 500 | 29.12 | 32 |
| 630 | 32.67 | 35 |
| 800 | 36.90 | 39.8 |
| LGJ Stranded Wire& LGJF Stranded Wire Cross-sectional Area(Nominal) | O.D. Of LJ Stranded Wire(mm) | Silicone Rubber Sleeving Covers Models(mm) |
| 35 | -- | 12 |
| 50 | -- | 15.6 |
| 70/10 | 11.4 | 17 |
| 70/40 | 13.6 | 17 |
| 95/15 | 13.61 | 17 |
| 95/20 | 13.87 | 17 |
| 95/55 | 16 | 17 |
| 120/7 | 14.5 | 20 |
| 120/20 | 15.07 | 20 |
| 120/25 | 15.74 | 20 |
| 120/70 | 18 | 20 |
| 150/8 | 16 | 20 |
| 150/20 | 16.67 | 20 |
| 150/25 | 17.1 | 20 |
| 150/35 | 17.5 | 20 |
| LGJJ-120 | 15.5 | 20 |
| LGJJ-150 | 17.5 | 20 |
| LGJQ-150 | 16 | 20 |
| 185/10 | 18 | 24.2 |
| 185/25 | 18.9 | 24.2 |
| 185/30 | 18.88 | 24.2 |
| 185/45 | 19.6 | 24.2 |
| 210/10 | 19 | 24.2 |
| 210/25 | 19.98 | 24.2 |
| 210/35 | 20.38 | 24.2 |
| 210/50 | 20.86 | 24.2 |
| 240/30 | 21.6 | 24.2 |
| 240/40 | 21.66 | 24.2 |
| 240/55 | 22.4 | 24.2 |
| LGJJ-185 | 19.6 | 24.2 |
| LGJJ-240 | 22.4 | 24.2 |
| LGJQ-185 | 18.4 | 24.2 |
| LGJQ-240 | 21.6 | 24.2 |
| 400/20 | 26.91 | 32 |
| 400/25 | 26.64 | 32 |
| 400/35 | 26.82 | 32 |
| 400/50 | 27.63 | 32 |
| 400/65 | 28 | 32 |
| 400/95 | 29.14 | 32 |
| 500/35 | 30 | 32 |
| 500/45 | 30 | 32 |
| 500/65 | 30.96 | 32 |
| 800/55 | 38.4 | 39.8 |
| 800/70 | 38.58 | 39.8 |
| 800/100 | 38.58 | 39.8 |
Voltage Ratings/Wall Thickness
| Voltage(KV) | ≤10KV | ≤35KV | ≤110KV | ≤220KV |
| Thickness | 2.0±0.3mm | 2.6±0.4mm | 4.0±0.5mm | 6.0±1.0mm |
