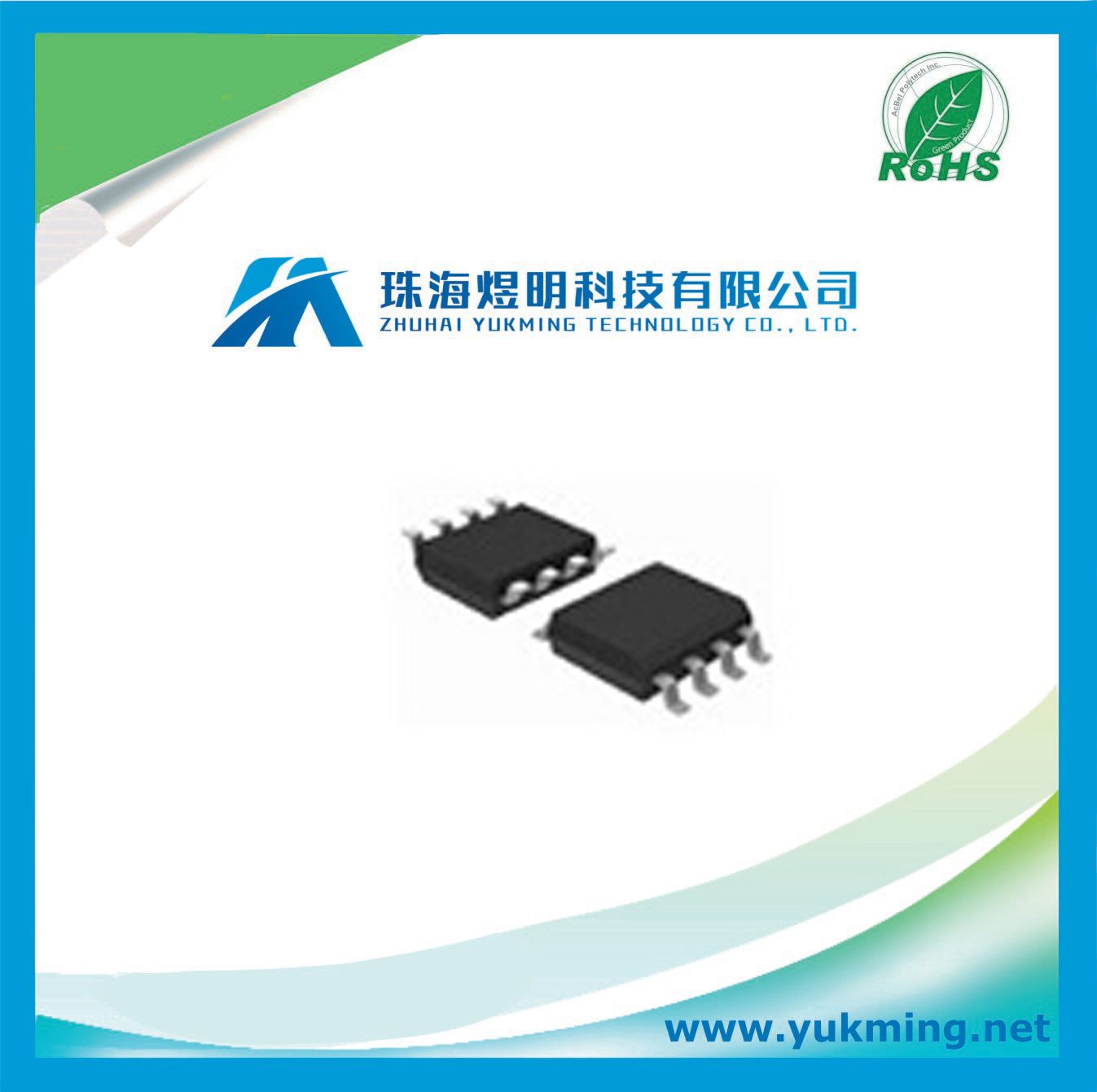

Regulation Pfc Controller IC Integrated Circuit Ap1682mtr-G1

Name: Regulation Pfc Controller IC Integrated Circuit Ap1682mtr-G1
Brand: all-electronics-online.com
SKU: 799159985
Availability: InStock
Rating: 4.8 (99 reviews)

Price:	US $ 0.05-0.3/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AP1682MTR-G1
Number Of Outputs:	1
Maximum Output Current (a):	0.3
Minimum Operating Supply Voltage (V):	9
Maximum Operating Supply Voltage (V):	21
Operating Temperature Range:	-40 to 105 Degree C
Lead Shape:	Gull-Wing

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

SPECIFICATION
EU RoHS Compliant
Type Primary Side PWM Controller
Number of Outputs 1
Maximum Output Current (A) 0.3
Minimum Operating Supply Voltage (V) 9
Maximum Operating Supply Voltage (V) 21
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 105

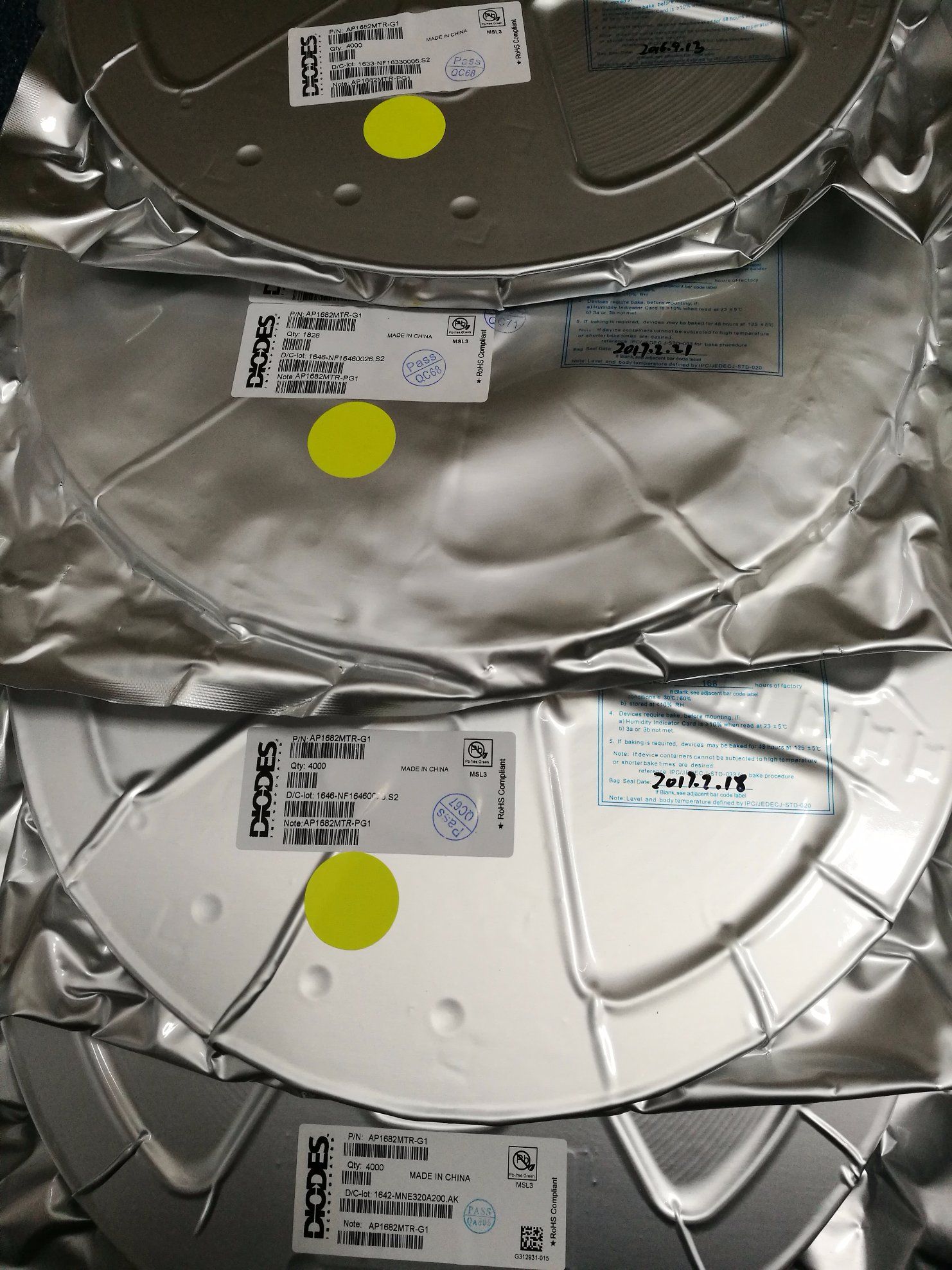

Packaging Tape and Reel
Temperature Grade Industrial
Mounting Surface Mount
Package Height (mm) 1.45(Max)
Package Length (mm) 5.1(Max)
Package Width (mm) 4(Max)
PCB changed 8
Standard Package Name SOP
Supplier Package SOIC
Pin Count 8
Lead Shape Gull-wing

Features
• Primary Side Control for Output Current
Regulation Without Opto-coupler and Secondary
CV/CC Control Circuitry
• Low Start-up Current
• High Power Factor and Low THD for Universal
Input Range
• Tight CC Regulation Performance for Universal
Input Mains Voltage Range
• Eliminates Control Loop Compensation
Circuitry
• Built-in Acceleration Start
• Open-load and Reload Detection
• Over Voltage and Short Circuit Protection
• Over Temperature Protection
• Over Current Protection
• Cost Effective Total PFC LED Driver Solution

Applications
• Single Stage Power Factor Correction Power
Supply for LED Lighting
