Remote Control Automatic Transfer for Dual Power (GLD-1600A/3P)

Name: Remote Control Automatic Transfer for Dual Power (GLD-1600A/3P)
Brand: all-electronics-online.com
SKU: 714414302
Availability: InStock
Rating: 4.4 (142 reviews)

Price:	US $ 596-660/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLD-1600A/3P
Frame Current:	1600A
Rated Working Voltage:	400VAC
Protection Function:	Phase Detection Protection
Application:	hospital, Shopping Malls, Banks, etc.
Rated Insulation Voltage:	to 1000V
Rated Frequency:	50/60Hz
Change-Over Time:	I-0-II or II-0-I(S):1.2 I-0 or II-0(S): 0.8

Product Description

GLD DUAL POWER AUTOMATIC CHANGE OVER SWITCH

GLD automtic change-over switch (ATSE) integrates switch and logic control. Thus it is not necessary to provide external controller. This truly electrome chemically integrated automatic change-over switch has the following functions, such as voltage detection, frequency detection,communication inferface, electrical and mechanical interlocking etc. So automatic control, electrical remote control and emergency manual control can be performed.

The operation is carried out through the logic control board, which gives various commands to control the motor and gear-box. The motor drives the accelerator which can take Switch-spring power accumulating and instantaneous released, Thereby quickly turning on the breaking circuit or circuit conversion, through the visible state to achieve security isolation,and extremely increasing the various electrical and mechanical performance.

The shell of switch is made of metal, being small and compact, While the shell of switch GLD is made of different materials: Its control section is made of metal, but the switching section is made of glassfibre unsaturated polyester resin, having stronger dielectric and protective capability as well as safe operation performance

The kind of switch is suitable for the automatic change-over of the main power source and the
Secondary power supply system or the automatic change-over and safe separation of the 2 sets
of load-equipment. This kind of switch has beautiful, novel and simple structure, a small volume
But complete functions, being the best choice among congener of products.

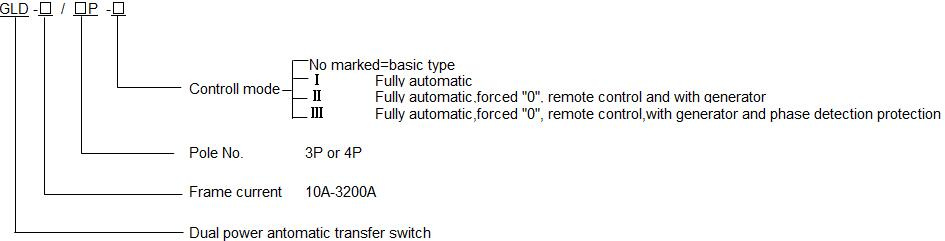

Example for model selection
GLD-100A 4P III~380V In 50A
Automatic change-over switch, Appointed clarify current is 100A, AC rate voltage 380V, rate current 50A, 4poles(3 poles+on and off neutral pole), Suitable for automatic change and automatic recovery of municipal power oil generator power supply system.

GLD Series Automatic Change-Over Switch Complies with the Following Standards:
IEC60947-1(1998)Low-voltage switchgear and controlgear, part one: General Rules
IEC60947-3(1999) Low-voltage switchgear and control gear, switches, disconnetors, switch-disconnectors and fuse-combination units.
IEC60947-6(1999)Low-voltage switch equipment and control equipment multi-function-switch automatic change-over switch electrical device
National Standard:
GB/T14048.1-2002Low-voltage switchgear and controlgear, part one: General Rules
GB14048.3-2002Low-voltage switchgear and control gear, switches, disconneetors, switch-disconnectors and fuse-combination units
GB14048.11-2002Low-voltage switch equipment and control equipment multi-function-switch automatic changeover switch electrical device

Enclosures of ATS
Can be easily fitted in enclosures and cabinets designed for electrical distribution.
Specification of ATS

1.Specifications		GLD-100					GLD-160		GLD-250		GLD-400	GLD-630	GLD-800	GLD-1250		GLD-1600
Rated current(th)		20	40	60	80	100	125	160	200	250	400	630	800	1000	1250	1600
		A	A	A	A	A	A	A	A	A	A	A	A	A	A	A
Rated insulation voltage(UI)		750V									1000V
Rated concussion withstand voltage(Ulmp)		8KV									12KV
Rated working voltage(Ue)		AC440V
Rated	AC-31A	20	40	63	80	100	125	160	250		400	630	800	1000	1250	1600
working	AC-35A	20	40	63	80	100	125	160	250		400	630	800	1000	1000	1600
current(Ie)	AC-33A	20	40	63	80	100	125	160	250		400	400	630	800	800	1000
Rated connection capacity		10le
Rated breaking capacity		8le
Rated limited short-circuit current(Is)		50kA									70kA				100kA 120kA
Rated short-time withstand current(Is)		7kA						9kA			13kA		26kA		50kA
Transfer time I-0-II or II-0-I		0.5s					1.0s		1.1s		1.2s
Control power voltage		DC24V 48V 110V AC220V
Electrical	Start
consumption	Normal	300W						325W			355W		400W	440W
Rated frequency		55W						62W			74W		90W	98W
Weight(kg)		7	7.2	7.2	7.2	7.5	7.5	8.8	9		16.5	17	32	36	40	43

Part No.	A	B	C	D	E	F	H	K	L
GLD-32-100/3	215	120	175	100	70	124	200	85	7
GLD-32-100/4	245	120	175	130	70	124	230	85	7
GLD-125-160/3	268	135	225	140	85	172	245	110	7
GLD-125-160/4	298	135	225	170	85	172	275	110	7
GLD-250/3	310	170	260	180	110	205	285	110	7
GLD-250/4	360	170	260	230	110	205	335	110	7
GLD-400/3	375	240	320	225	160	240	350	180	9
GLD-400/4	435	240	320	290	160	240	415	180	9
GLD-630/3	375	260	320	378	160	240	350	180	9
GLD-630/4	435	260	320	498	160	240	415	180	9
GLD-1000/3	505	312	370	378	200	295	470	220	11
GLD-1000/4	625	312	370	498	200	295	590	220	11
GLD-1250/3	505	356	370	378	200	295	470	220	11
GLD-1250/4	625	356	370	498	200	295	590	220	11
GLD-1600/3	505	356	370	378	200	295	470	220	11
GLD-1600/4	625	356	370	498	200	295	590	220	11

P/No.	A	B	D	H
GLD-2000/3P	520	460	378	350
GLD-2000/4P	645	460	498	470
GLD-2500/3P	520	460	378	350
GLD-2500/4P	645	460	498	470
GLD-3200/3P	520	510	378	350
GLD-3200/4P	645	510	498	470
