| Application: |
Automatic Doors |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Metal |
Product Description
Features of Remote Control for Automatic Doors:
* High current electricity lock output module
* AC/DC 12~36V power input, easy to get power from automatic door operator
* Exquisite and fashionable shell design, compact size
* With built-in surge absorber, able to effectively prevent the backflow sparks of electric lock action
* Four key humane remote control design , easy to switch the four working states
* With voice prompts to confirm effective remote operation

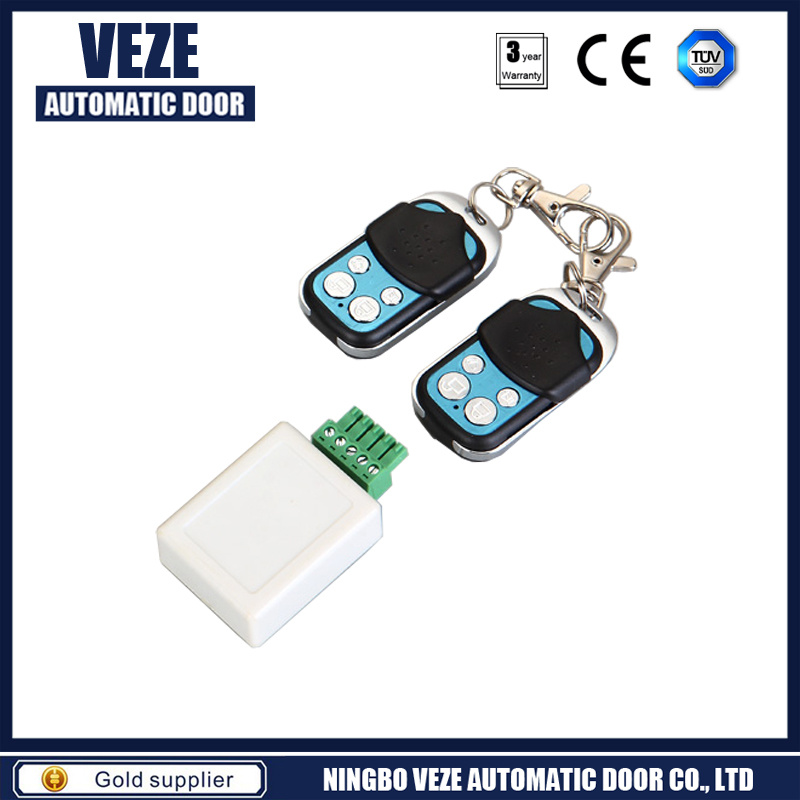

The Picture of Remote Control for Automatic Doors
Technical Specifications of Remote Control for Automatic Doors
| Supply voltage | AC/DC12~36V |
| Permissible max. current of electric lock | 3A (12V) |
| Static current | 35mA |
| Dynamic current | 85mA (not include current of electric lock ) |
| Professional device | Built-in surge absorber |
| Transmitting and receiving mode | Microwave rolling code |
| Ambient temperature | -42~55 degree |
| Relative humidity | 10~90%RH |
| Dimensions | 123mm(L)*50mm(W)*32mm(H) |
| Weight | 280g |

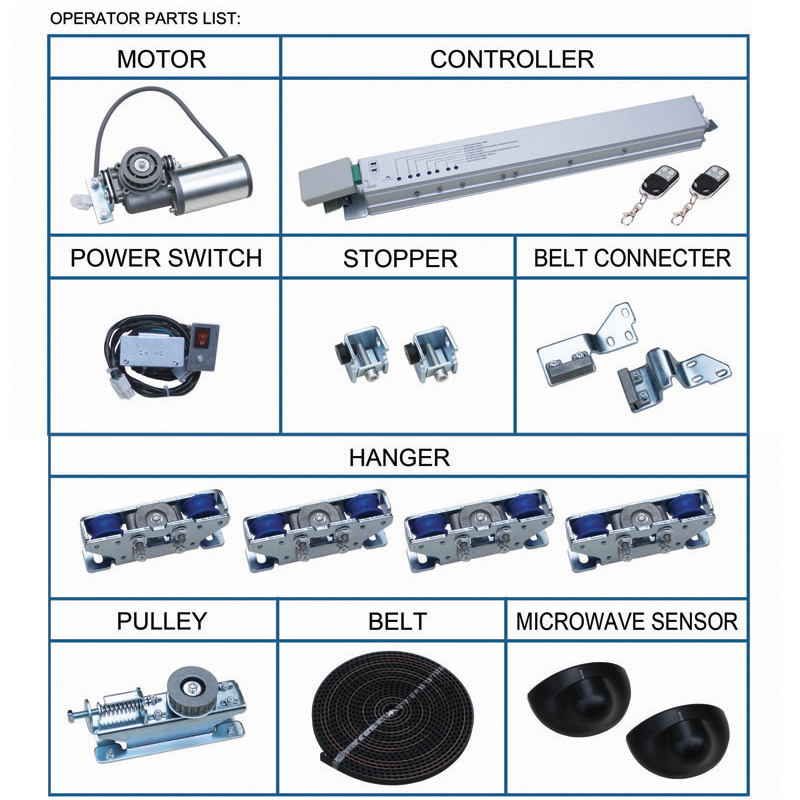

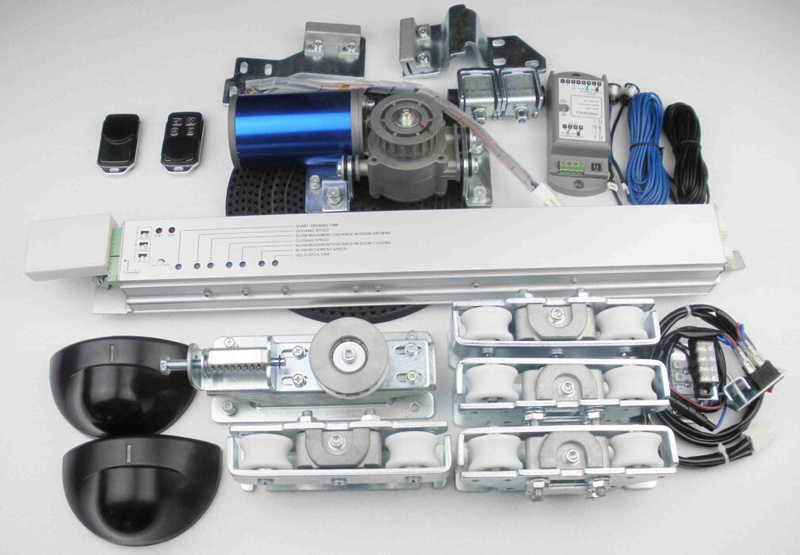

The Other Components of Automatic Doors
1. Operation
The automatic door operator is to be fully electronic operator, housed in a fully anodised aluminum transom section.
2.Controller
The intelliget controller unit can be programmed for connection to any security/alarm systems, is self monitoring and calibrating, has memory for all data on door stoke and brake positions.
3.UPS
The operator has built-in uninterrupted power supply (Battery back up) operation and security during power failure.
4.Belt Drive
Drive is by way of toothed belt, which is reinforced with fiberglass tensile members, and has nylon facing surface for tooth protection on the pulleys. This combination produces silent accurate operation.
5.Tracking
The track is self-cleaning duel linear. The upper track is made of harder stronger alloy 6351T6, and can be replaced without moving the transom. The wheel trolley is fitted with anti-rise wheels, resulting in very firmly fitted doors with operation free of any racking.
6.Locking
Electromechanical Locking: An electric lock option is available to give total security and can be adapted where manual locking cannot be achieved, i. E. Frameless toughened Glass doors. Lock is the microprocessor controlled electric locking system. The microprocessor monitors all aspects of the lock functions. E. G. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security system both door positions and lock status.
Ningbo VEZE Automatic Door Co., Ltd. Was established in September 2005 and is a professional enterprise specialized in researching, designing, manufacturing and selling automatic door systems, automatic sliding doors, automatic swing doors, hospital hermetic doors, automatic curved doors, automatic telescopic doors, automatic revolving doors and high quality automatic door accessories: Brushless DC motors, infrared sensors, controllers, access control system, etc.
Safety Certification
Our products have certificates of CE, UL, RoHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)
R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check that all electronic devices are working well, each motor will go through severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with high-class quality and competitive price.
Sales & Services
VEZE Automatic doors Co., Ltd takes Quality, Efficiency and Service as our motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new parts for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
OEM&ODM Service
We have a professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
Competitive Advantages:
1. We are professional manufacturer in automatic door field.
2. We have the certificates of CE, UL, RoHS, TUV, CCC, ISO9001.
3. We provide 24 months warranty.
4. We use wooden carton packing to ensure security in transit.
5. We could control our products quality by our quality control dept.
6. We have a large storage to ensure supplying in time.
