| Prod Model: |
8623SC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
220V AC ±10% at 50/60Hz |
| Working Frequency: |
433/303.825MHz |
| Standby Current: |
60ua |
| Remote Control Distance: |
60m |
| Application: |
LED Products |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
3V |
| Material: |
Metal |
Product Description

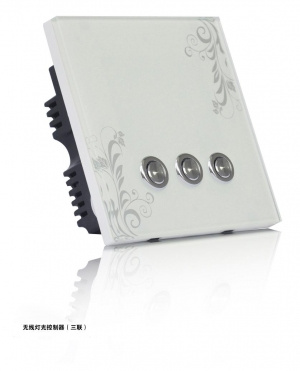

Smart RF 3 button wireless smart remote switch
Model:8623SC
Specifications
Can be used not only separately, but also work with whole smart home system for more functions
Key Specifications/Special Features
Specifications:
Working voltage: 220V AC ±10% at 50/60Hz
Working frequency: 433/303.825MHz
Standby current: <60μA
Load power: 5 to 500W (resistive load)
Remote control distance: 60m
Size: 86*86*35mm (86 standard)
Materials: tempering glass (cover) + ABS fireproof(housing)
Wire connection: single wire (no neutral wire)
Features:
Crystal glass cover
Single-wire technology, no neutral wire
RF wireless, no direction and no interference
Low standby power
Single on/off, all-on, all-off and scene control functions
Studying encode mode
Single wire technology, no need neutral wire
RF wireless technology, no direction with quick response
Low power circuit and magnetic latching relay design
Anti-lightning, anti-surge circuit, to improve security
Millions of different learning codes
Memo:
Please do not use in overload condition
When do code pairing, please power off lamp first
Please install switch according to instruction
Not working with inductive fluorescent
Installation: please refer to support, download memo
Adapts RF, single wire, learning code technology which make switch easy to install and use, meanwhile smart switch has strongability of compatibility and scalability
Can be used not only separately, but also work with whole smart home system for more functions
