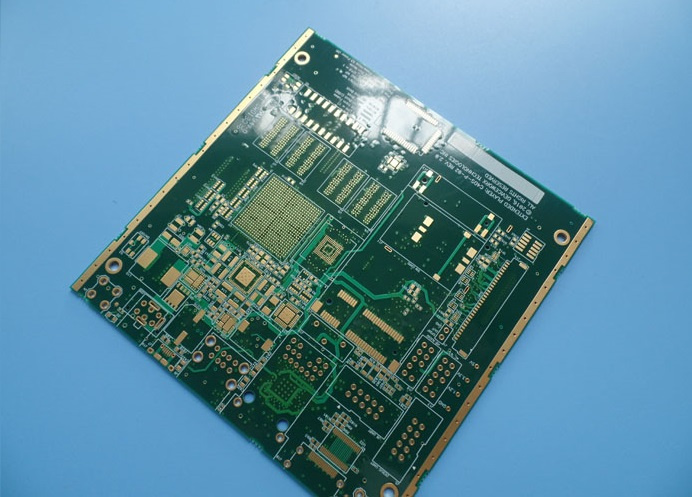

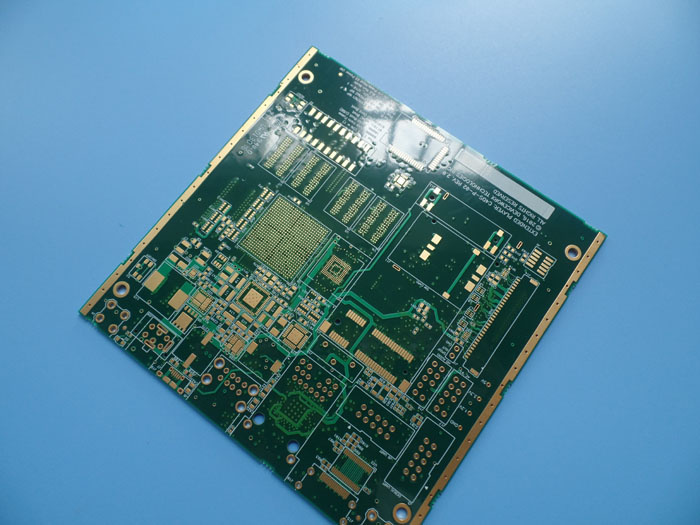

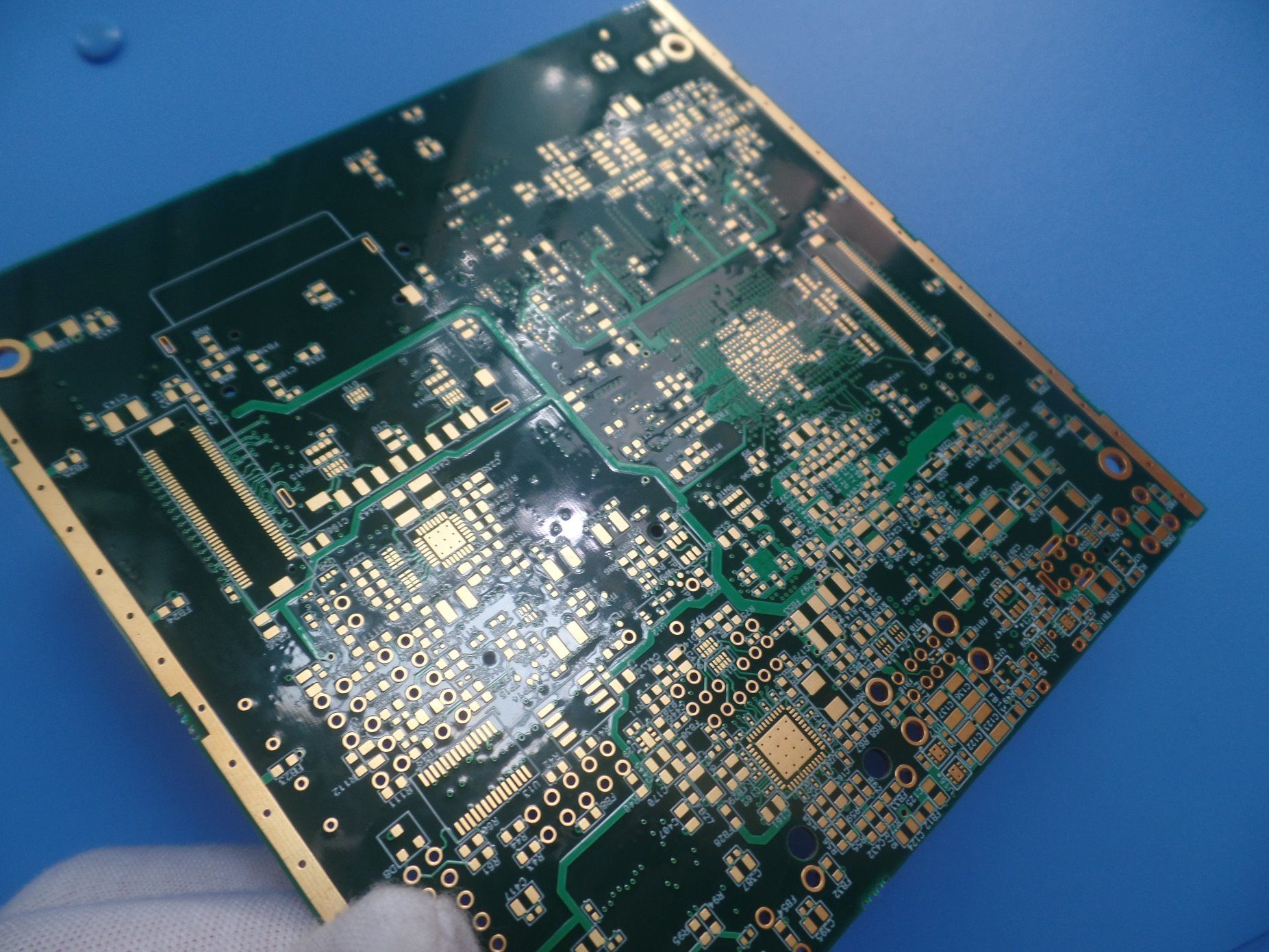

Resin Via Plug Multilayer PCB 8 Layer Impedance Controlled Board
| Price: |
US $ 0.98/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-187-V1.87 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.3/6.19mm |
| Via: |
Resin Via Plug |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multilayer PCB Manufacturing Via In Pad 8 Layer FR-4 1.6mm Thick Immersion Gold Applied
In GPRS Navigation
Commodity IntroductionThis is a type of FR-4 PCB for the application of GPRS Navigation. It's an 8 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 109.3 x 107.41mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 8 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18 um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz) MidLayer 1 |
| FR-4 0.2mm |
| copper ------- 35 um(1 oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz) MidLayer 3 |
| FR-4 0.2mm |
| copper ------- 35 um(1 oz) MidLayer 4 |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz) MidLayer 5 |
| FR-4 0.2mm |
| copper ------- 35 um(1 oz) MidLayer 6 |
| Prepreg 7628 0.195mm |
| copper ------- 18 um(0.5 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil/4 mil |
| Minimum / Maximum Holes: | 0.3/6.19mm |
| Number of Different Holes: | 24 |
| Number of Drill Holes: | 5158 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | Single trade Impedance control and Different
Impedance controlled |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG170ºC, er<5.4.IT-180, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (26.1% ) 0.05 µm over 3 µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, stamp holes. |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), Via in pad, Resin via plug, via capped. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | GPRS
Bluetooth Adapter
Wifi Range Extender
Gps Navigation
Bluetooth Devices
Radar Detector |
TYPE OF ARTWORK
TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
The standard 8layer PCB stackup with 1.6mm thickness from Bicheng Company
Frequently Asked Questions
1. Do you sell high temperature PCB?
Yes. The material stability of high Tg (glass transition temperature) is high so that a high Tg PCB
can be desirable. Multilayer and high layer PCB uses this material much.
2. Do you sell via in pad PCB?
Yes. Via in pad (VIP) is a good real estate saving. We offer this kind of PCB for many applications
like microcontroller, GPRS etc.
Green PCB
Human beings have only one earth. Caring for the entire ecological environment and our lives are
closely related. Fresh work environment and sewage recycling are our responsibility.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
