Resistance 12 Gauge Stranded PFA Electrical Wire with Certificate

Name: Resistance 12 Gauge Stranded PFA Electrical Wire with Certificate
Brand: all-electronics-online.com
SKU: 831112645
Availability: InStock
Rating: 4.5 (23 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1859
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Teflon
Certification:	Tsa, CSA16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Sheath Material:	PFA
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

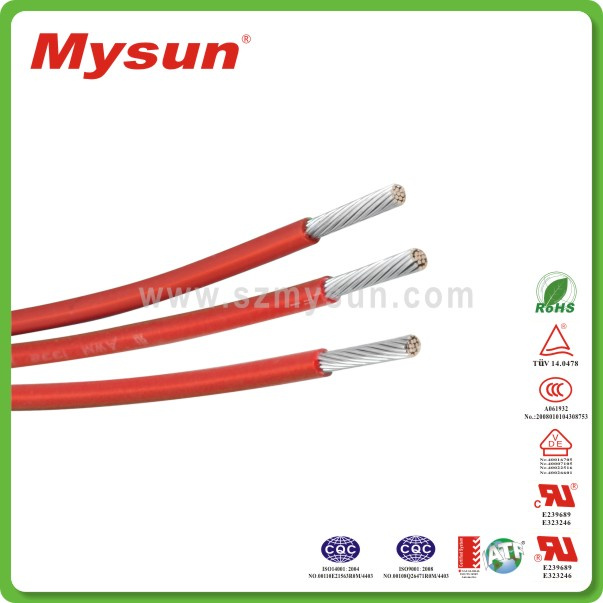

resistance 12 gauge stranded PFA Electrical wire with certificate

Specifications:

Nominal voltage: 600V

Temperature range: 150C

Standard: UL 758

Insulation: PFA

Conductor: Tinned copper wire

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
32	7/0.08	0.24	0.51	1.26	563	610/2000
30	7/0.10	0.30	0.51	1.32	361	610/2000
28	7/0.12	0.36	0.51	1.38	227	610/2000
26	7/0.16	0.48	0.51	1.50	143	610/2000
24	7/0.20	0.60	0.51	1.62	89.3	610/2000
22	19/0.15	0.75	0.51	1.77	56.4	305/1000
20	19/0.185	0.93	0.51	1.95	35.2	305/1000
18	19/0.235	1.17	0.51	2.19	22.2	305/1000
16	19/0.30	1.50	0.51	2.52	14	305/1000
14	19/0.37	1.85	0.51	2.87	8.78	305/1000
12	19/0.47	2.35	0.51	2.37	5.53	305/1000
10	37/0.43	3.00	0.51	4.02	3.476	305/1000
8	37/0.54	3.78	0.80	5.38	2.16	customized
7	37/0.60	4.20	0.80	5.80	1.716
6	37/0.68	4.76	0.80	6.36	1.361
5	37/0.76	5.32	0.80	6.92	1.079
4	37/0.86	6.02	0.80	7.62	0.8859
3	7/2.21	6.63	0.80	8.23	0.6788
2	7/2.48	7.44	0.80	9.04	0.5384
1	7/2.78	8.34	1.20	10.74	0.4268
0	7/3.20	9.60	1.20	12.00	0.3367
2/0	7/3.57	10.71	1.20	13.11	0.267
3/0	7/3.94	11.82	1.20	14.22	0.2119
4/0	7/4.42	13.26	1.20	15.66	0.168

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
