RF 20 Keys RGB Controller

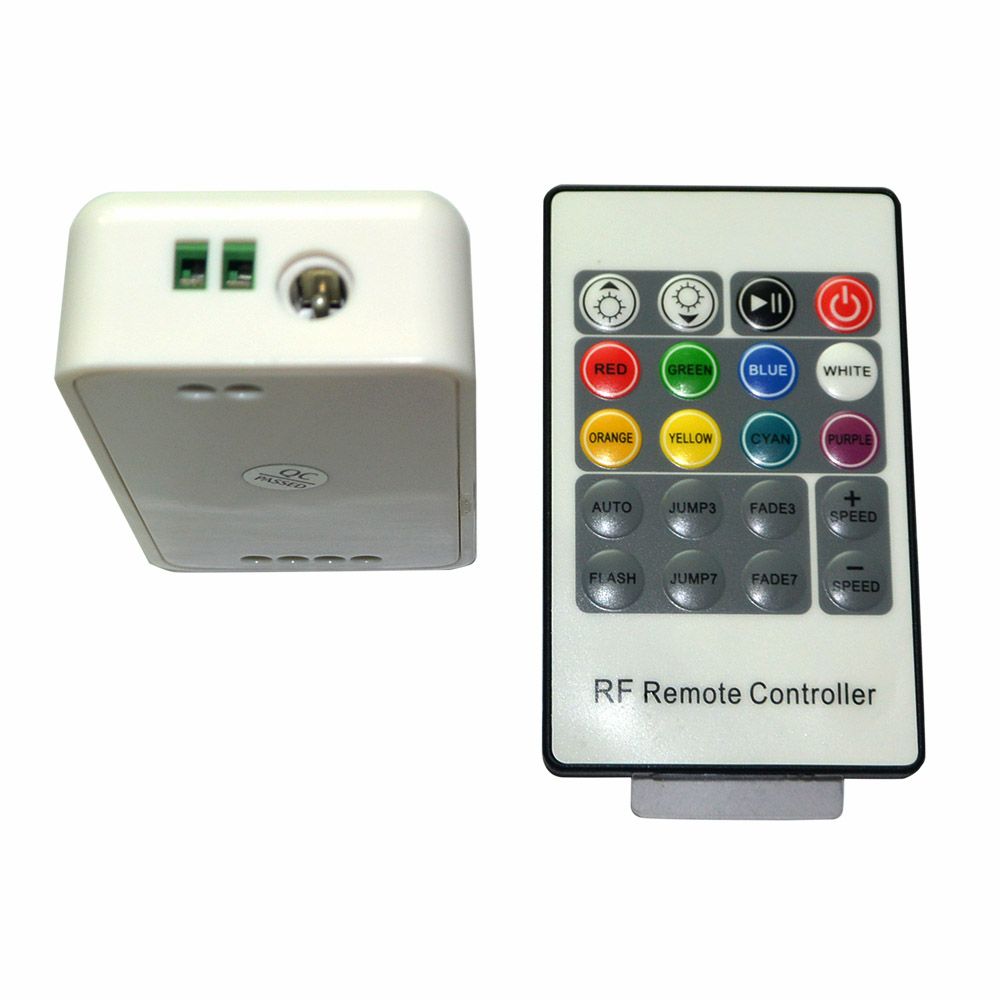

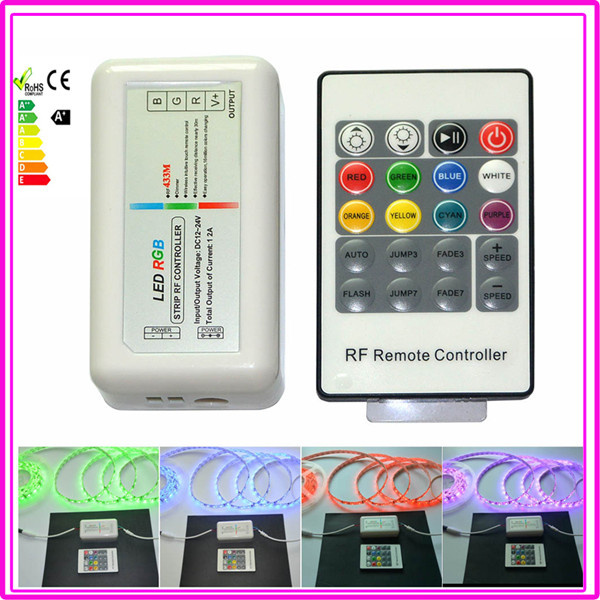

Name: RF 20 Keys RGB Controller
Brand: all-electronics-online.com
SKU: 801696645
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	US $ 4.6-4.7/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-20
Working Temperature:	-20 - 60
Output:	3 Channels
Output Current:	<4A /CH
Application:	Industrial Machinery
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC12V~24V

Product Description

Basic Info

brand :	louita	Output:	3 CMOS Open drain output	place of origin:	Shenzhen,China
Output Current:	<4A/CH	External dimension:	L85W45H23mm	RF frequency:	433.9M
Static power consumption:	<1W	Connection mode:	Common anode

Product Description

Button Number	20 Keys
Controled Method	RF Wirless Remote
Applicable Lights	RGB LED Strips
is_customized	Yes
Remote Distance	a long distance
Max. Load Power	288W
Power Source	DC
Wattage	288W
Brand Name	OEM
Model Number	3Channels LED Controller
Material	Plastic
Color	Beige
Voltage	12-24V
Certification	CE,FCC,RoHS
Features	Wirless Remote
Warranty	other
Connection Mode	common anode
Item Type	RGB Controler

Features:
Plastic RF 20 Keys RGB controller adopted the advanced computer control chip.

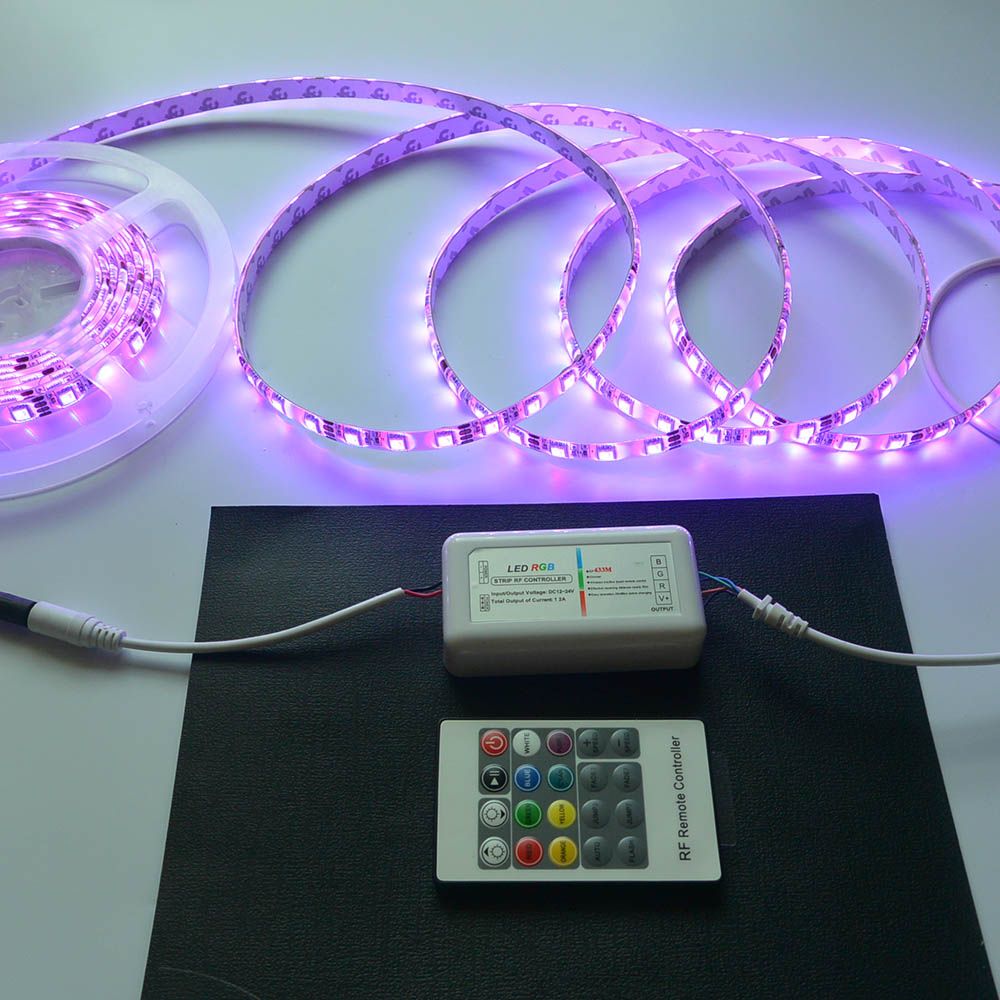

Mainly used to adjust the brightness and color changing speed of RGB LED light source, such as point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on.
3 channels output.
Matched with a Radio Frequency wireless remote control, ensures long remote distance.
Easy to install.
It is mainly used to controlled all kinds of constant voltage led lights, such as, LED source, LED strips, led wall washer, wall Glass curtain lights, etc.

Specifications:
Controller case material: Plastic
Working temperature: -20-60
Supply voltage: DC12V ~ 24V
Output: 3 channels
Connecting mode: common anode
Remote Control Battery: 1 * CR2025 Battery (not included)
Static power consumption: <1W
Output current: <4A /ch
Output power: 12V: <144W, 24V: <288W
Controller size: approx. 8.5 * 4.5 * 2.3cm / 3.3 * 1.7 * 0.9in
Controller weight: approx. 41g / 1.46oz
Package size: approx. 9.5 * 6.2 * 4.0cm / 3.7 * 2.4 * 1.6in
Package weight: approx. 82g / 2.91oz

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
