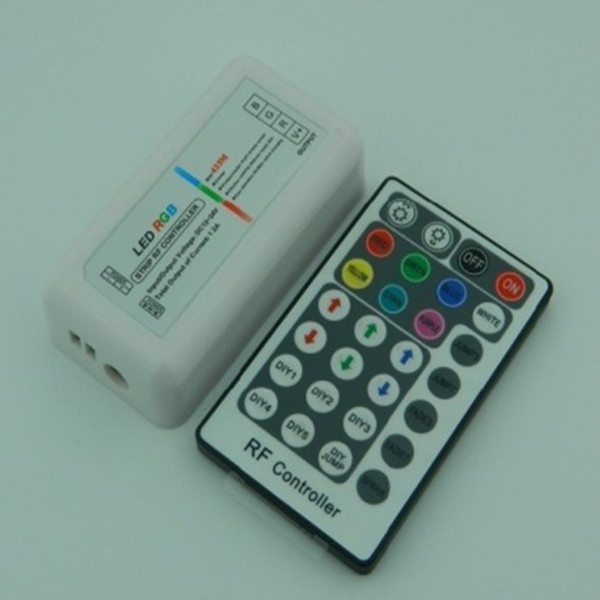

RF 28 Keys RGB Controller

Name: RF 28 Keys RGB Controller
Brand: all-electronics-online.com
SKU: 801701585
Availability: InStock
Rating: 4.9 (66 reviews)

Price:	US $ 4.6-4.7/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-28
Working Temperature:	-20 - 60
Output:	3 Channels
Output Current:	<4A/CH
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC12V~24V

Product Description

Basic Info

Item Type	RGB Controler
Button Number	28 Keys
is_customized	Yes
Brand Name	OEM
Features	RF Wirless Remote
Warranty	other
Applicable Lights	RGB LED Strips
Max. Load Power	288W
Wattage	12V: <144W 24V: <288W
Certification	CE,FCC,RoHS
Remote Distance	a long distance
Color	Beige
Voltage	12-24V
Material	Plastic
Power Source	DC
Connection Mode	common anode
Controled Method	RF Wirless Remote
Oscillation frequency	as the description
Model Number	RGB LED Controller

Product Description

It is a multi-function Touching RGB LED Controller. You can easily change mode, speed and color brightness. It widely applies to RGB LED strip light.

Features:
Plastic RF 28 Keys RGB controller adopted the advanced computer control chip.

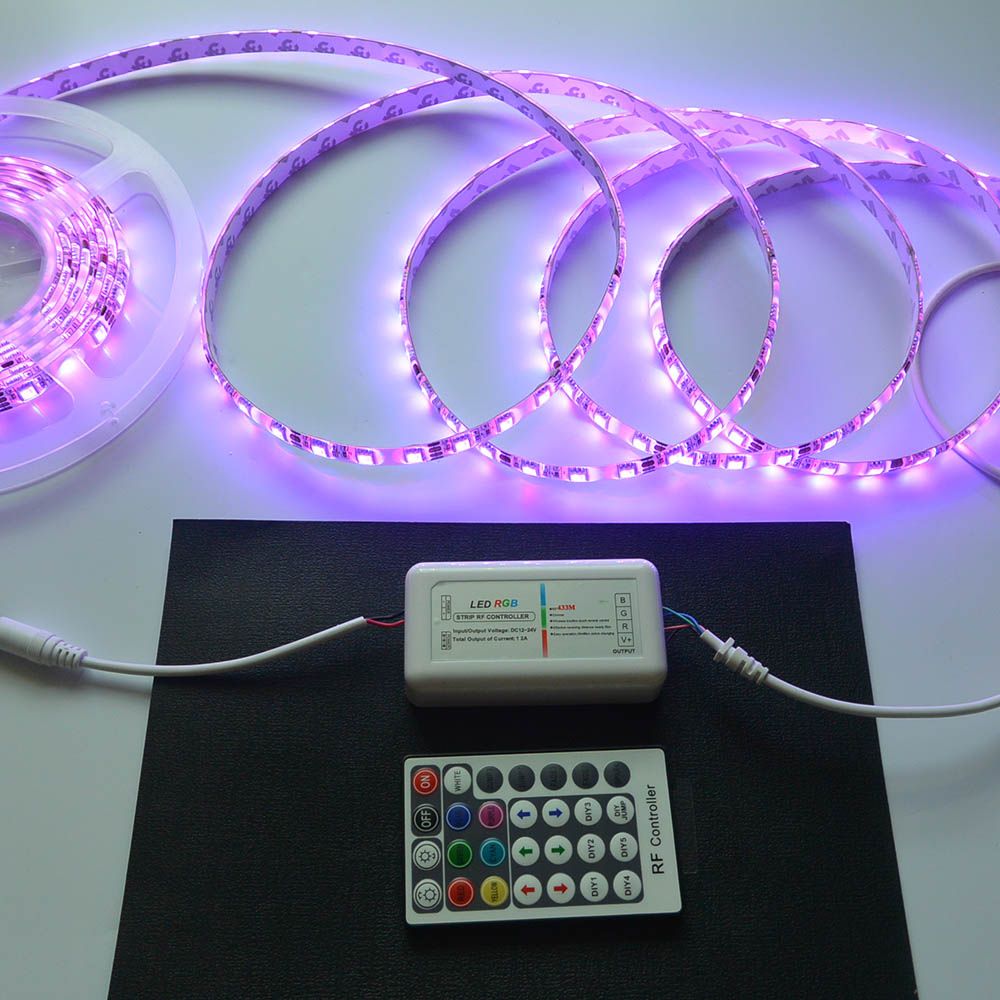

Mainly used to adjust the brightness and color changing speed of RGB LED light source, such as point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on.
3 channels output.
Matched with a Radio Frequency wireless remote control, ensures long remote distance.
Easy to install.
It integrated with easy connection,simple manipulation and power off memory function.

Specifications:
Controller case material: Plastic
Working temperature: -20-60
Supply voltage: DC12V ~ 24V
Output: 3 channels
Connecting mode: common anode
Static power consumption: <1W
Output current: <4A/ch
Output power: 12V: <144W, 24V: <288W

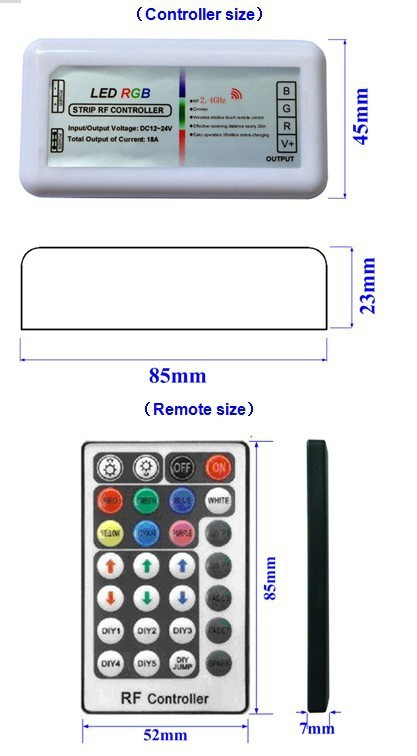

Controller size: approx. 8.5 * 4.5 * 2.3cm / 3.3 * 1.7 * 0.9in
Controller weight: approx. 41g / 1.46oz
Package size: approx. 9.5 * 6.2 * 4.0cm / 3.7 * 2.4 * 1.6in
Package weight: approx. 87g / 3.04oz

Note:
Input voltage of this product is DC12-24V and other input voltage are not allowed.

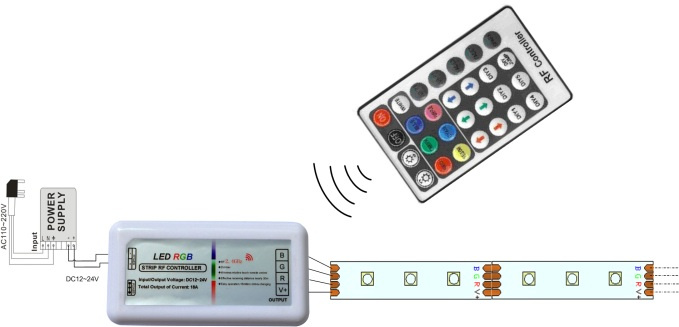

Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
Overload are prohibited.
