RF PCB 4 Layer Circuit Board on RO4350b and RO4450b
| Price: |
US $ 2.05/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-355-V2.1 |
| Final Foil External: |
1.0oz |
| Final Height Of PCB: |
1.0mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Mininum Trace (Mil): |
5.0 Mil |
| Minimum Gap(Mil): |
4.9 Mil |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
| Dielectric: |
RO4350b |
Product Description

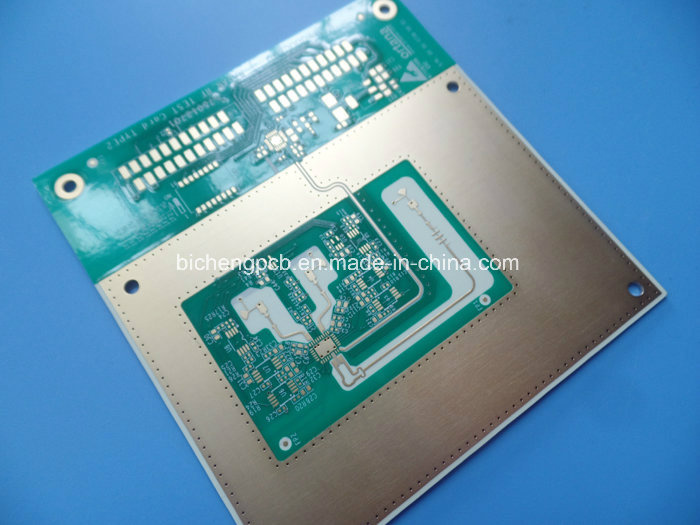

RF PCB 4 Layer Circuit Board on RO4350B and RO4450B
Commodity Introduction

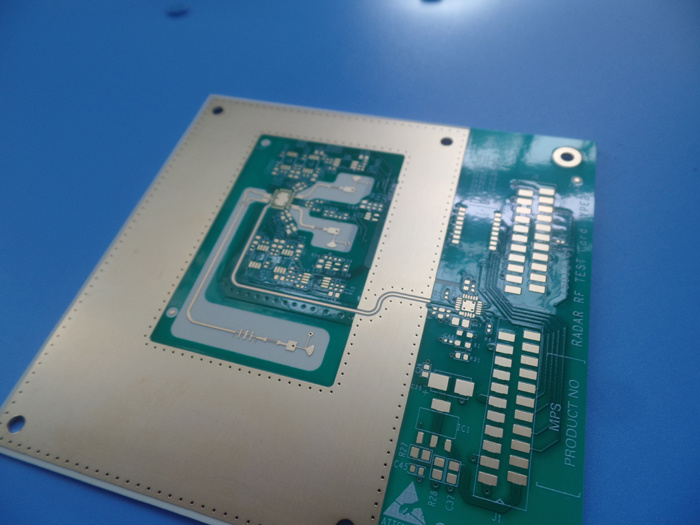

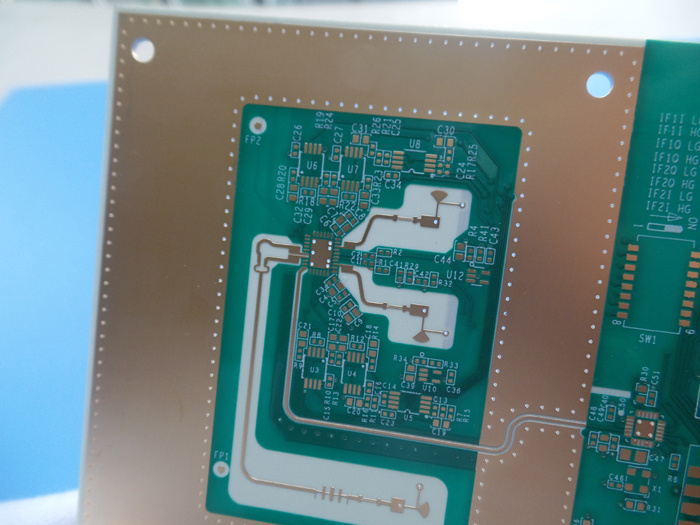

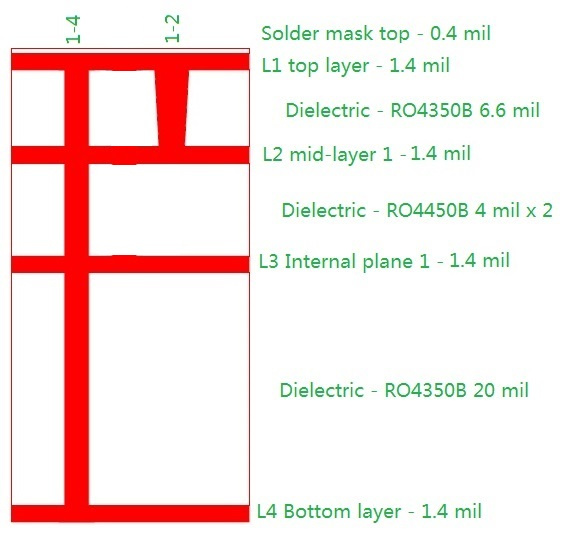

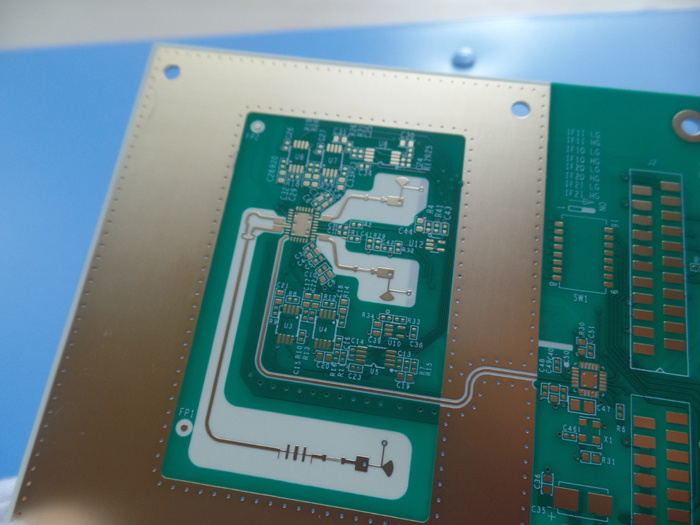

This is a type of 4 layer high frequency circuit board at 1.0mm thick for the application of Radar RF. The base laminate is from RogersCorp RO4350B with prepreg RO4450B.Green solder mask and White silkscreen on top side. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately. There're blind via from top to inner layer 1 which increase the difficulty of making the plate.
Parameters & Data Sheet| Number of Layers | 4 |
| Board Type | Multilayer PCB |
| Board Thickness | 1.00 mm +/-0.1 |
| Board Material | RO4350B 6.6mil, RO4350B 20mil |
| Board Material Supplier | Rogers Corp |
| Tg Value of Board Material | 280ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | 1 oz (1.4mil) |
| Surface Cu thickness | 1 oz (1.4mil) |
| |
| Solder Mask Type and Model No. | LP-4G/G-05 |
| Solder Mask Supplier | NANYA |
| Solder Mask Colour | Green |
| Number of Solder Masks | 1 |
| Thickness of Solder Mask | 15.3 um |
| |
| Type of Silkscreen Ink | S-380W |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | Whie |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 5.0 mil |
| Minimum Gap(mil) | 4.9 mil |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Warpage | 0.21% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 22.800 | 22.300 | 23.700 | 23.700 | 22.300 | 24.500 | 23.000 |
| 2 | 27.000 | 22.300 | 22.500 | 22.500 | 22.500 | 22.600 | 23.600 |
| 3 | 23.000 | 22.300 | 27.000 | 27.000 | 22.300 | 22.800 | 23.400 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 97.00 | ±0.15 | 97.02 | 97.01 | 97.01 | 97.02 |
| 2 | 100.00 | ±0.15 | 100.02 | 100.01 | 99.99 | 100.01 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.250 | ±0.076 | Y | via | via | via | via |
| 2 | 0.406 | ±0.076 | Y | via | via | via | via |
| 3 | 3.174 | ±0.076 | Y | 3.200 | 3.175 | 3.175 | 3.200 |
Standard specifications of RO4350B and RO4003C Substrate
RO4000 Series High Frequency Circuit Materials
Standard Thickness
RO4003C
0.008" (0.203mm)
0.012" (0.305mm)
0.016" (0.406mm)
0.020" (0.508mm)
0.032" (0.813mm)
0.060" (1.524mm)
RO4350B
0.0040" (0.101mm)
0.0066" (0.168mm)
0.010" (0.254mm)
0.0133" (0.338mm)
0.0166" (0.422mm)
0.020" (0.508mm)
0.030" (0.762mm)
0.060" (1.524mm)
Standard Panel Size
12" x 18" (305 x 457 mm)
24" x 18" (610 x 457 mm)
24" x 36" (610 x 915 mm)
48" x 36" (1.224m x 915 mm)
0.004"(0.101mm) material is not available in panel size larger than 24" x 18" (610 x 457 mm)
Standard Copper Cladding
1/2 oz(17µm) electrodeposited copper foil (0.5ED/0.5ED)
1 oz (35µm) electrodeposited copper foil (1ED/1ED)
2 oz (70µm) electrodeposited copper foil (2ED/2ED)
Frequent Ask Questions1).
What courier do you use for shipment?
Our courier includes DHL, FedEx, TNT and EMS. As per your order weight and location, we'll choose the most economic method to send you your boards to help to save the freight cost.
2).
How do you pack the PCBs?
PCBs are packed with Polyethylene air cushion film (vacuum plastic bags) per 20-25 pieces. Pearl cotton (Polyethylene foamed sheet) are put inside carton box.
The hardness of carton box is KK grade (the highest hardness). Maximum gross weight for one carton is less than 12 kgs.
3).
How to Pay?
We accept bank wire transfer, PayPal. It's sorry, we currently do not accept credit card.
4).
How to order PCBs?
1st step, sending your gerber files for quotation.
2st step, placing your order form to our market department and make the payment.
3rd step, Our CADCAM department is dealing with your gerber files, sending you EQ (if it has) for final confirmation.
4th step, PCB is manufactured.
5th step, Shipment and send you tracking number.
5).
How do you control the quality?
We believe engineering design prevents problems from occurring in preproduction. Our PCB and Manufacturing process are certified by authorized organizations.
100% tests are inclusive of electrical test and AOI inspection, high voltage test, impedance control test, micro-section, solder-ability test, thermal stress test,
reliability test, insulation resistance test and ionic contamination test etc.Hybrid PCB
6).
Do you sell cheap FR-1, CEM-1 PCB?
Yes, we just offer single sided PCB made of FR-1 and CEM-1. We also use punching tool for the contour for the mass production.
7).
Do you sell flexible PCB (FPC)?
Yes, we offer flexible printed circuits (FPC) with single sided and double sided. Immersion gold and OSP are usually used for this flexible board.
8).
Where do you sell your PCBs?
We sell our PCB's world widely.
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, and Middle East.
9).
Do you sell high frequency PCB?

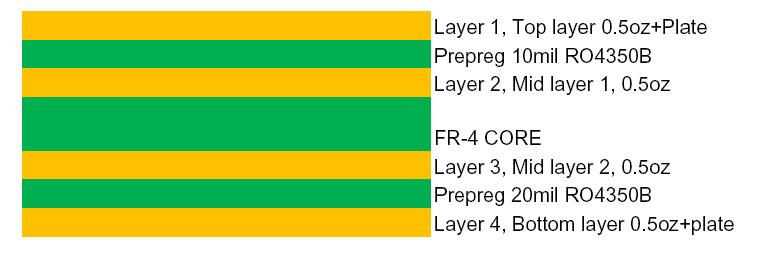

Yes. We offer high frequency PCB and hybrid of high frequency and FR-4 mixed. The most used high frequency material is RO4350B and RO4003C, double sided and multilayer.
10).
Do you sell impedance controlled PCB?
Yes. Impedance controlled PCB's are used more and more popular in our common life. We can offer differential impedance and single end impedance PCB.
