RF PCB RO4003c and Fr-4 Printed Circuit Board Electronics
| Price: |
US $ 2.32/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-102-V1.02 |
| Outer Copper Foil: |
1 Oz |
| Inner Copper Thick: |
0.5 Oz |
| Surface Finish: |
HASL |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Via: |
Plated Through Hole(Pth) |
| Board Thick: |
1.2mm |
| Minimum Trace and Space: |
5.5 Mil/4.9 Mil |
| Minimum / Maximum Holes: |
0.3/6.4mm |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c 32mil (0.813mm), Tg 288 |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description

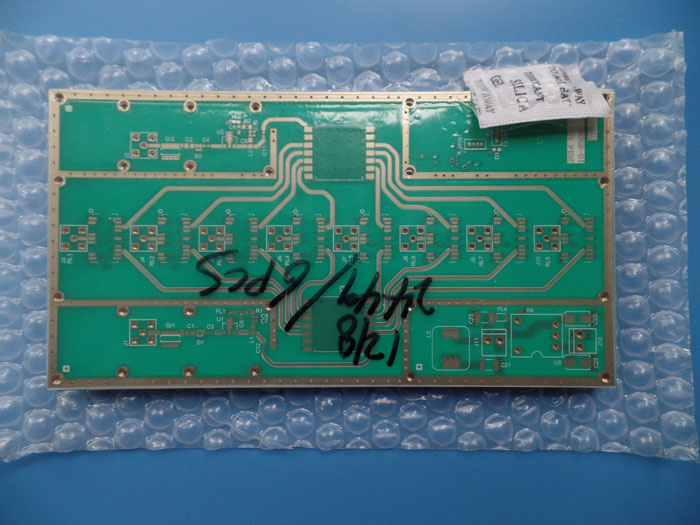

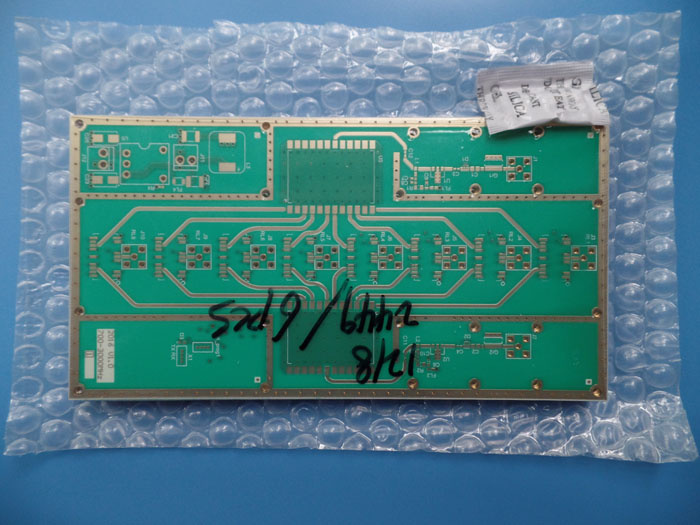

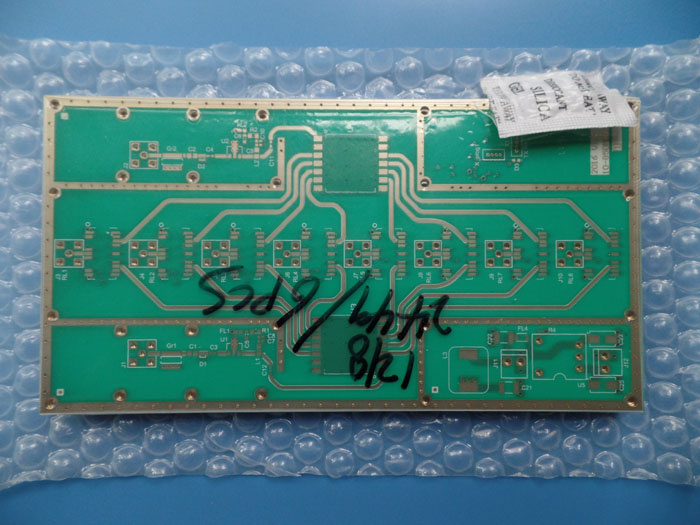

4 Layer Hybrid Material PCB board RO4003C 12mil Mixed With FR-4 0.5mm printed circuit
board Thick Applied In Digital Transmitter design
Commodity Introduction
This is a type of RO4003C Mixed With FR-4 PCB for the application of Digital Transmitter.
It's a 4 layer board at 1.2mm thick. The base laminate is from ROGERS CORP and ITEQ,
Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied
Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 183x 115mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5oz)+plate TOP layer |
| RO4003C 12mil Er 3.38 |
| copper ------- 18um(0.5oz) MidLayer 1 |
| FR-4 0.5mm |
| copper ------- 18um(0.5oz) MidLayer 2 |
| RO4003C 12mil Er 3.38 |
| copper ------- 17um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.5mil/4.9mil |
| Minimum / Maximum Holes: | 0.3/6.4mm |
| Number of Different Holes: | 6 |
| Number of Drill Holes: | 951 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4003C 12mil mixed with FR-4 0.5mm |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.2mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), Via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Digital transmitter, Fleet Tracking
Electronic Board
PLC Omron
Led Light Box
Access Control Panel |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Design For Manufacturability
This manufacturability guide provides an overview of various areas that printed circuit board
designer may take into consideration on the fabrication possibility, manufacturing cost and
reliability of their products.
OUR ADVANTAGES
* Your satisfied source to buy printed circuit boards (PCBs)
* All PCBs are 100% tested (flying probe or fixture test)
* Free panelizing
* Special price for partners
* On time delivery
* No minimum order quantity
* Worldwide shipping, door to door service
OUR PRODUCTS
* PCB Prototypes and PCB mass production
* Rigid PCB Fabrication
* Flexible PCB (FPC)
* PCB up to 32 layers
* RoHS complaint, Lead free PCBs
* Material: FR-4, High Tg (Tg170, Tg180), RO4350B, RO4003C, Polyimide, Aluminum core.
* Controlled Impedance
* Hybrid PCB
* Heavy copper
* Surface finish: HASL, HASL lead free, Immersion tin, Immersion silver, Immersion gold, Gold
finger
* Blind via, countersunk hole, castellation hole, press-fit hole
* 3 days to 4 weeks lead time
