| Prod Model: |
LM-ACT3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
2 Years |
| Delivery Date: |
8~15 Days |
| Origion: |
Zhongshan,Guangdong,China |
| Package: |
Natural Packing |
| Brand Name: |
Leomay |
| Application: |
LED Products |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Battery Type: |
Button Battery |
| Transmission Distance: |
5~10 Meters |
| Voltage: |
12V~24V |
| Material: |
Electronic |
Product Description
Based on the principle of 'Provide high quality Led lights and professional service for all customers', Leomay is is engaged in researching, manufacturing and selling newly Led Lighting Products.
Now Leomay products mainly cover Led Rope Light, SMD Led strip, Led Flood Light,Led Down Light,Led Tube, Led Spotlights, Led Guardrail Lamp, Led Wall Washier, Led Underground Light, Led Underwater Light, Led Modules, Led Outline Lamp, Led Light Cup, Led Bulbs, Led String Lights, Led Screen, Led Curtain Light etc.
With 8PCS automatic production lines, 4PCS imported injection molding machines, 6PCS automatic punchers, wave solderling machine, reflow machine, LED color test instrument, automatic logic analyzer, high and low temperature test chamber etc., Leomay and all Leomay LED products are well recognized by GS, KEMA,CE, UL, NEMKO, CB ,RoHS, CCC and ISO. Now Leomay Led products are sold well all over the world and highly recognized by all customers.
Features:
Use RF signal for telecontroller, free and easy operation, no direction in 20 meters;
Wide options of over 640, 000 colors, change according to your mood
8 grades brightness adjusting, to achieve real energy-saving;
With auto & manual color change mode
Long life, lifespan up to 40000hours;
Low energy consumption;
No UV radiation, no stroboflash
Accord with European Union CE, RoHS directive.
Specifications:

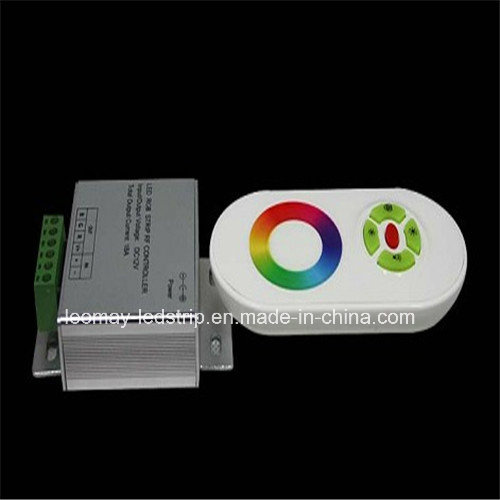

Name: LED Controllers
Input Voltage: DC12V, DC24V(optional)
Connection type: Common anode
Radio frequency: 433.92MHz
Receiver sensitivity: -105dBm
Radio receive way: ASK
Max STDBY current: 10mA
Max load: 5A(each circuit)
Control mode: PWM
Control way: 3 ways, respectively corresponding R, G, B three colors
Static power consomption: 30LED/M: ≤ 5.4W 60LED/M: ≤ 10.8W
Static current: 30LED/M: 450mA 60LED/M: 900mA
Working temperature: -20~80 degrees
Material: Controller: Aluminum remote: ABS+PC
Life span: 50, 000h
Size: Remote: 114*56*22mm Controller: L46*W64*H24
Packing: 7*7*12.5cm
G. W.: 0.15kgs/set
Telecontrol distance: 20m
Max no. Of memory telecontroller: 6PCS
| Name | LED controllers |
| Working Temperature | -20~80 degrees |
| Input Voltage | 12V DC or 24 DC |
| Output: | Three COMS output |
| Connecting method | Common anode |
| Control ways | 3 ways |
| Radio frequency | 433.92MHz |
| Receiver sensitivity | -105dBm |
| Max STDBY current | 10mA |
| Max load | 5A |
| Control mode | PWM |
| Life span | 50,000h |
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.
Now Leomay products mainly cover LED Light Strip, Aluminum LED Profile, High Volt LED Strip, LED Rope Light, LED Panel Light. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.
Meanwhile, Leomay has advanced LED luminaire manufacturing and test facilities such as Imported Panasonic Auto Soldering and SMD Machines, Programmable Constant Temp and Humidity Testing Machine, IP65 and IP68 Waterproof Production Lines, High and Low Temperature Test Chamber, Optical Testing Devices such as Everfine Integrating Spheres and Distribution Photometer.
Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.
Leomay products are highly recognized and sold very well more that 30 countries and regions, such as Germany, Austria, Swiss, Italy, Hungary, Slovakia, Croatia, Slovakia, Slovenia, Finland, Denmark, Spain, UK, Russia, Canada, US, Costa Rica, Brazil, Argentina, Singapore, Hong Kong, Taiwan etc.
As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
