RF Touch RGBW LED Remote Control

Prod Model:	LYD-QC17W
Working Temperature:	-20 - 60
Output:	4 CMOS Output
Static Power Consumption:	<1W
RF Frequency:	2.4G
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Battery Type:	AAA Battery
Voltage:	DC12V~24V

Product Description

Basic Info

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	louita	Model Number:	LYD-QC17W
Type:	Remote Control	Max. Load Power:	576W	Voltage:	12V~24V
Item:	Long plastic shell 2.4G RGB Touch Controller	Supply voltage:	12V~24V	0utput:	common anode
Output power:	12V:<216W, 24V:<432W	Output current:	<6A(each channel)	Connecting mode:	common anode
Working temperature:	-20-60ºC	Packing size:	L152*W41*H28mm	RF frequency:	2.4G
Output:	4 CMOS output

Product Description
This 4 zone 2.4G RF remote RGB led controller adopt the most advance PWM control technology, can control all kinds of 3 channel (common anode) LED lights. Such as LED module, led strip, led control box, led source,etc. This controller is with indicating light and power off memory function, next time to used it, will start with the model it save.  Easy connection and simple to used is the representative advantages of this controller. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote control according to their preference.

Features
Supply Voltage:DC12~24V
Output:4 CMOS output
Output current: <6A/CH
Receiver size:L152*W41*H28mm
Connection mode:common anode
Static power consumption:<1W
Output Power:12V:<288W, 24V:<576W
RF frequency:2.4G
Remarks:This remote are not support 4 group control version.

Direction for use

Function introduction:

1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.
2,In the open area remote control distance is about 30 meters.
3,Adopt the press key and touch wheel control remote, slightly touch the color wheel can adjust the light's color smoothly .


 Operation method:

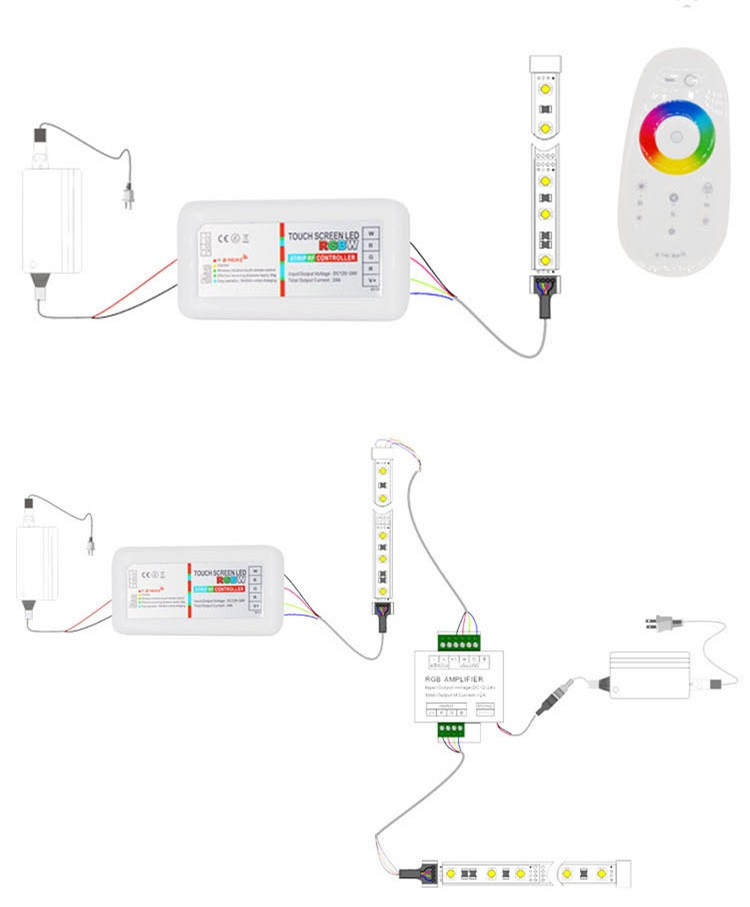

 1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2.Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function).
3.In ON station,only press the "MODE+" button or "MODE -"button to choose the the former or later mode, total are 28 modes as below table:


NO.	MODE	Adjustable station	NO.	MODE	Adjustable station
1	Static Red	Brightness adjustable(total 10level), speed can not adjust	15	Green stroboscopic	Brightness adjustable(total 10level), speed  adjustable(total 1o level)
2	Static Green		16	Blue stroboscopic
3	Static Blue		17	Yellow stroboscopic
4	Static Yellow		18	Purple stroboscopic
5	Static Purple		19	Cyan stroboscopic
6	Static Cyan		20	White stroboscopic
7	Static White		21	Red blasting flash
8	RGB 3 color jump	Brightness adjustable(total 10level), speed  adjustable(total 1o level)	22	Green blasting flash
9	Six color fade		23	Blue blasting flash
10	Seven color jump		24	Red-Blue jump
11	RGB 3 color fade		25	Green-Blue jump
12	White color fade in and fade out		26	Red-Green jump
13	Seven color fade		27	Single white flash
14	Red stroboscopic		28	8th-27th mode cycle


4.When in the cycle mode ,Press the "MODE +" Button it will turn into"Static Red MODE"(The 1st mode). Press the "MODE -" Button it will turn into the "Single white flash MODE"(The 27th mode)
5.Press the "MODE+/MODE -" Button when is in the touch color wheel adjust color mode, it will turn into The last of the selected mode.
6.Long Press "Speed +/Speed -"or "Brightness +/Brightness -" button can quickly adjust the speed/brightness.

 Match code and clean code Instruction:

Match code:For a new combination, the remote must to match code withe the receiver then it can be used normally.
Please press the ON Button for 5 times within 8 seconds when power the controller, then the output led light will be flash for 6 times, this means the remote is match code with this receiver successfully, they can used normally.

Clean code:if user want to change the light control group,he can clean the code off. After clean code the remote and receiver will be in the initial state. Operation method: Press the OFF Button for 5 times within 8 seconds when power the controller, till the output light flash for 6 times, means clean code successfully.

Remarks:The regular product for sale is a kit (one remote and 1 receiver). The user can re-programmed freely as needed. One remote can control countless receivers, but one receiver can only be controlled by two remotes max.
