Rg174 Coaxial Cable

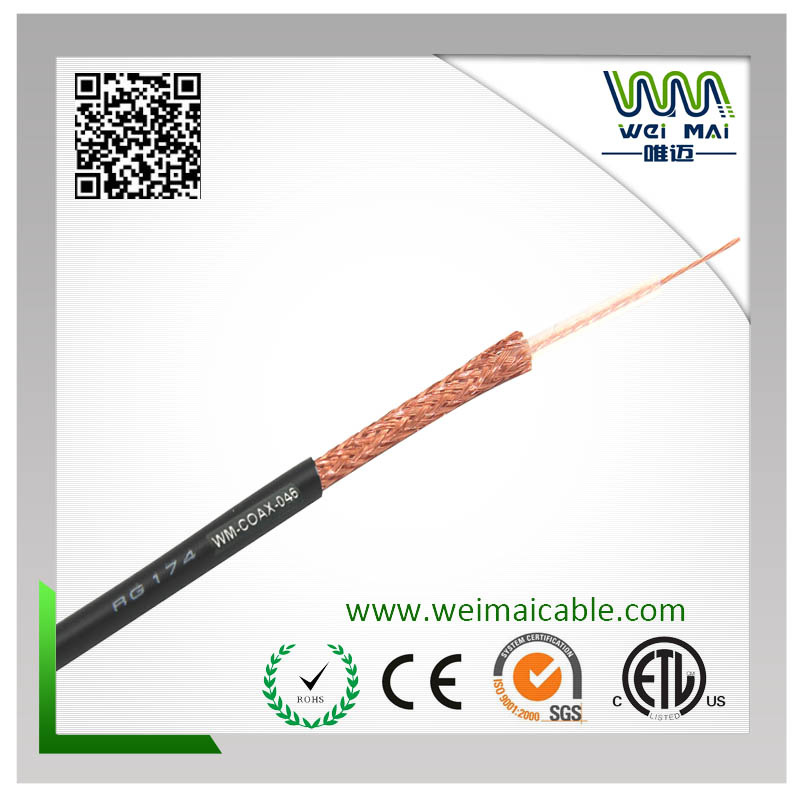

Name: Rg174 Coaxial Cable
Brand: all-electronics-online.com
SKU: 774927575
Availability: InStock
Rating: 4.5 (62 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WM-COAX-046
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Name:	Rg174 Coaxial Cable
Number Of Conductors:	1
Al Foil:	Al Foil( Bonded or Unbonded)
Advantage:	Great Service
ODM/OEM:	Available
MOQ:	30km Rg174 Coaxial Cable
Free Sample:	Available
Sample Time:	One Day for Our Available Model
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	UL
Type:	Coaxial
Model:	Rg174
Brand:	Weimai

Product Description

Coaxial Cable RG174 99% Braiding 50 ohm china manufacturer supplier
Item: WM-COAX-046

1) Construction

Center Conductor:

7X0.16mm Bare Copper

Dielectric:

1.90mm Solid PE

Braid Coverage:

16X6X0.12mm Bare Copper 99% Coverage

Jacket:

2.7+0.10mm PVC

Jacket Thickness:

0.5mm

2) Characteristics

Sparker Test:	3000VAC
Impedance:	50+2Ohm
Capacitance:	100pF/m (Nom.)
Velocity of Propagation:	66.0%
SRL:	50- 300 MHz >23
	300- 1000 MHz >21

3) Attenuation	68 o F. (20 o C.)
Frequency (MHz)	Nom.(dB/ 100 ft .)
10	2.99
100	9.50
400	22.57
1000	36.60
2000	51.85
3000	64.05

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
