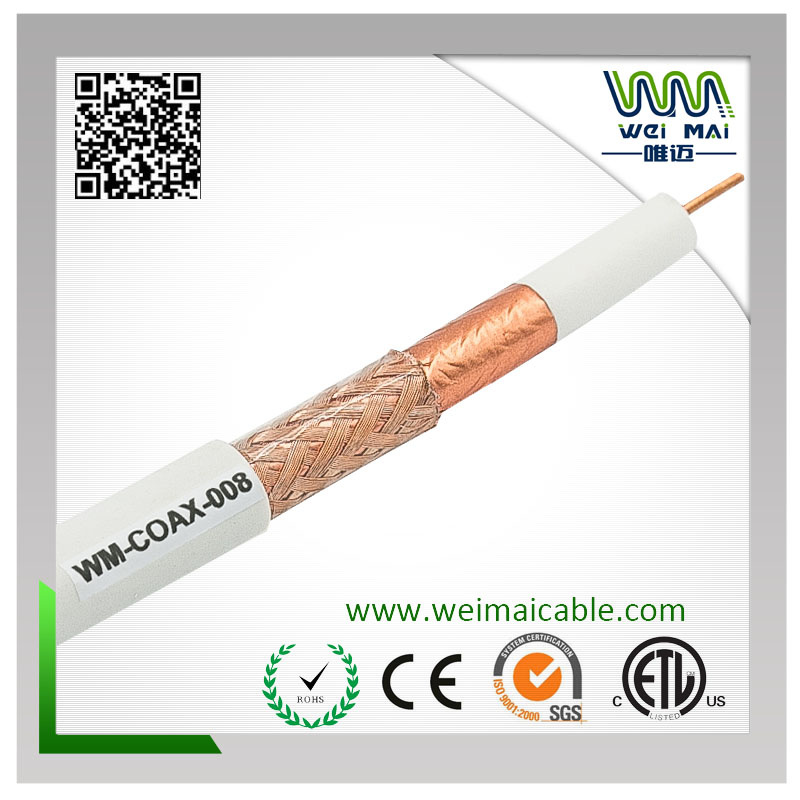

90% Braiding 18AWG Bc RG6 Coaxial Cable

Name: 90% Braiding 18AWG Bc RG6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 727299165
Availability: InStock
Rating: 4.8 (83 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WM-COAX-008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductors:	1
Linan Coaxial Cable Foil:	Al Foil (Bonded or Unbonded
Linan Coaxial Cable Application:	Broadband CATV/Video
Linan Coaxial Cablecenter Conductor:	Cu or Cu Clad Steel(CCS) or CCA
Linan Coaxial Cable Insulation Material:	Foam PE
Linan Coaxial Cable Braid Shied Material:	Bc, Tc, CCA, CCS, Al-Mg
Linan Coaxial Cable Jacket:	PVC
Linan Coaxial Cable 1st Shield:	Bonded Foil
Linan Coaxial Cable 2ND Shield:	Braided Shield
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Certification:	UL
Cover Material:	PVC or PE
Type:	Coaxial Cable
Model:	R6
Brand:	Weimai

Product Description

90% Braiding 18AWG BC RG6 COAXIAL CABLE
Item: WM-COAX-008

1) Construction

Center Conductor:

0.90+0.01mm Copper /CU

Dielectric:

4.75+0.05mmFoam PE

Shield:

CCA Foil

Braid Coverage:

128X0.12mm CCA Al alloy Braiding Pitch24 96%Coverage

Jacket:

6.80+0.05mm PVC white/black 75Degree

Package:

100M/Roll 305M/Drum 1000ft/500ft/Pull Box

2) Characteristics

Sparker Test:	4000VAC
Impedance:	75+3 Ohm
Capacitance:	54+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3) Attenuation

Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.81	2.65
50	1.5	4.9
100	2.0	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.68	21.9
1450	8.15	26.72
1800	9.0	29.5
2250	10.56	34.62

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
