18AWG CCS 90% Braiding Messenger RG6 Coaxial Cable

Name: 18AWG CCS 90% Braiding Messenger RG6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 727842685
Availability: InStock
Rating: 4.8 (106 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	20KM
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WM-COAX-028
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang China (Mainland
Brand Name:	Weimai or OEM
Linan Coaxial Cable Application:	Broadband CATV/Video
Linan Coaxial Cable Insulation Meterial:	Foam PE
Linan Coaxial Cable Center Conductor:	Cu or Cu Clad Steel(CCS) or CCA
Linan Coaxial Cable Braid Shied Meterial:	Bc, Tc, CCA, CCS, Al-Mg
Linan Coaxial Cable Jacket:	PVC
Linan Coaxial Cable 1st Shield:	Bonded Foil
Linan Coaxial Cable 2ND Shield:	Braided Shield
Linan Coaxial Cable Impedance:	75 Ohm
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	VDE
Type:	Coaxial Cable
Wire Core Material:	CCS
Model:	RG6 Coaxial Cable
Brand:	Weimai

Product Description

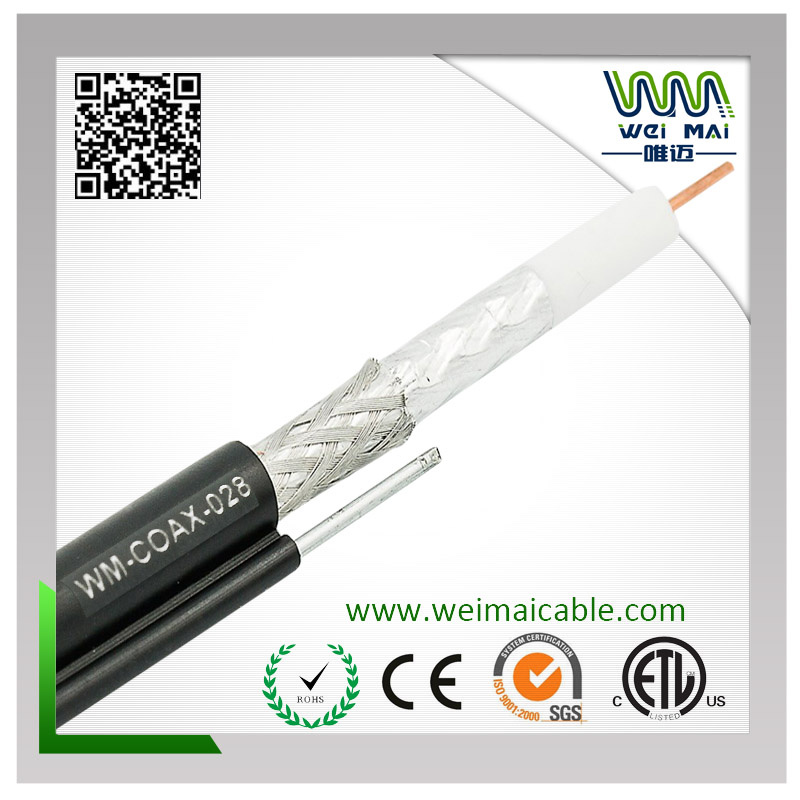

18AWG CCS 90% Braiding Messenger RG6 Coaxial Cable
Item: WM-COAX-028

1) Construction

Center Conductor:

1.02+0.01mm Copper Clad Steel/CCS Conductivity 18%

Dielectric:

4.75+0.05mmFoam PE

Shield:

Bonded Al Foil

Braid Coverage:

112X0.12mm Al alloy Braiding Pitch22 90%Coverage

Jacket:

6.80+0.05mm PVC white/black 75Degree

Messenger:

1.3mmSteel

Package:

305M/Drum

2) Characteristics

Sparker Test:	4000VAC
Impedance:	75+3 Ohm
Capacitance:	54+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3) Attenuation

Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.81	2.65
50	1.5	4.9
100	2.0	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.68	21.9
1450	8.15	26.72
1800	9.0	29.5
2250	10.56	34.62

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
