Rg58 Cable Female Jack Clamp 17.5mm Flange Mount TNC Connector

Name: Rg58 Cable Female Jack Clamp 17.5mm Flange Mount TNC Connector
Brand: all-electronics-online.com
SKU: 827053535
Availability: InStock
Rating: 4.3 (129 reviews)

Price:	US $ 1.29-1.74/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TNC-17KF3
Frequency Range:	DC-11GHz

Product Description

TYPE TNC is a kind of RF Coaxial Connector with screw coupling mechanism, characteristic impedance
is 50ohm. The characteristic of connector is in wide working frequency, reliable connection,great vibration performance etc. They are used in connection with RF coaxial cable in the computer network, radio station,
the mini-car telephone, navigation of spaceflight, microwave monitor system using radar and all kinds of
radio equipments.

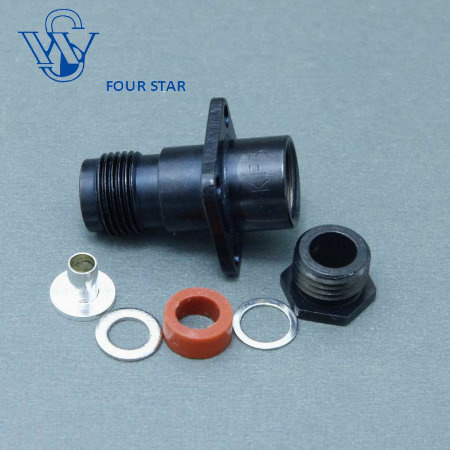

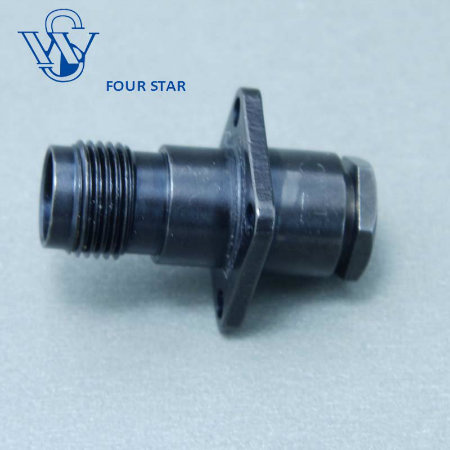

Picture show:

TNC Female clamp 17.5mm flange connector for RG58 cable
Model No.	TNC-17KF3
Interface	IEC 60169-17;CECC 22200
Electrical
Characteristic Impedance	50ohm
Frequency Range	DC-11GHz
VSWR	≤1.20@DC-3GHz
Working Vlotage	500V RMS,50Hz,at sea level
Dielectric Withstanding Voltage	≥1500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤10mΩ	Outer Contact ≤2.5mΩ
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Cr
Insulator	PTFE(Teflon)	-
Inner Conductor	Phosphor Copper	Au
Back Nut	Brass	Cr
Washer	Brass	Ag
Cable Clamp	Brass	Ag
Gasket	Silicone Rubber	-
Environmental
Operating Temperature	-40 ºC~-85 ºC
Weatherproof Rate	IP67
RoHs Compliant	Yes

Company information:

Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province
China (230Km away from Shanghai).
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF
cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,F , FME,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly(Jumper Cable)
Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.

Founded in 1994, Four Star Communication Parts Co., Ltd (Originally named Four Star Electronics Co. Ltd) is No. 88 S338 Road Zhenjiang City Jiangsu Province China (220Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to supply RF coaxial connectors, RF cable assembly, Microwave components and installation accessories of mobile base stations. Our products are widely used by Telecom Equipment manufacturer, Telecom operator and antenna manufacturer and are sold to Asia, North America, Middle East, Australia, south America.

Four Star Communication has 46 employees and 12000 square meters of manufacturing and office facility.

We are capable of producing over 5 million RF connectors, 1 million RF cable assemblies, and 0.2 millian microwave components(including surge arrestor, terminator, attenuator etc) annually.

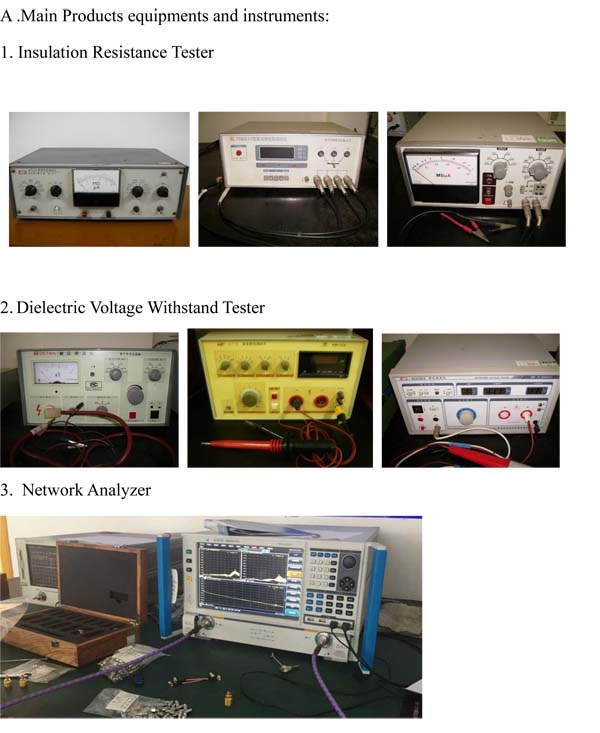

We have strict quality guarantee system and advanced integrated testing equipments which guarantee us to provide excellent products to customers.

Our products range focus on as follows:

1. RF coaxial connectors Series: SMA, SMB, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43, HDC), UHF (PL259), MCX, MMCX, 4.3/10 Mini DIN, EIA flange etc.

2. RF coaxial cable Jumper (Cable assembly): RG Series coaxial cable Jumper; LMR Series coaxial cable Jumper; Corrugated foam coaxial cable Jumper; JS (FB) Series coaxial cable Jumper; 75ohm Series coaxial cable Jumper; Mini-coaxial cable Jumper etc.

3. Micro-wave Components: Dummy Load(Terminator); Attenuator; Surge Arrestor;

4. Other Communication Parts: Power Splitter, Directional Coupler; Grounding Kits; Cable Clamp.

We are able to offer competence of OEM manufacturing and high flexibility to customized demand with punctual delivery and perfect service. We sincerely Look forward to working with you and make better service and support in the future.
