RG6 Coaxial Cable for CCTV Camera Cable

Name: RG6 Coaxial Cable for CCTV Camera Cable
Brand: all-electronics-online.com
SKU: 760066055
Availability: InStock
Rating: 4.7 (34 reviews)

Price:	US $ 5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6 cable (FS-RG6)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	RG6/Rg6u
Model:	RG6 Coaxial Cable
Brand:	Fulsan

Product Description

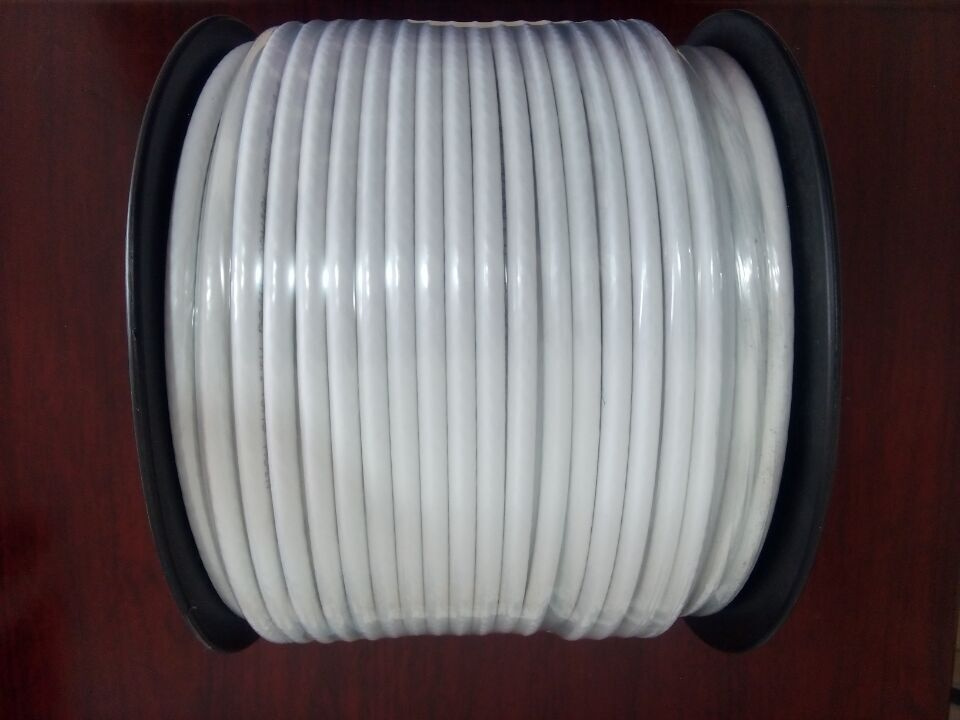

RG6 Coaxial Cable for CCTV Camera Cable

Coaxial Cable( RG6/RG6U) 17vatc / 19vatc:

Specifications:
1) 1.02mmCCS +4.57mmFoamed PE +A/P(bonded)+60% AL Braiding + 6.91mmPVC
2) Customers' specifications are welcomed.

Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.

Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
5MHz: 1.90dB 500MHz: 15.09dB
55MHz: 5.25dB 600MHz: 16.73dB
83MHz: 6.40dB 750MHz: 18.54dB
187MHz: 9.35dB 1000MHz: 21.49dB
211MHz: 10.00dB 1450MHz: 26.16dB
250MHz: 10.82dB 1800MHz: 27.73dB
350MHz: 12.63dB 2100MHz: 31.15dB
400MHz: 13.61dB 2250MHz: 34.03dB

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Usage: Securitity alarm
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Established in 1992, Ningbo Fulsan Trading Co., Ltd. is a modern enterprise specialized in research, develop and produce all kinds of telecommunication products. It's main products include HDMI cable, Scart Cable, computer connector, Audio and Video Cable, USB cable, and other accessories. The products are totally exported to the world market especially to US., Europe, Middle East Asia, Russia and has earned high reputation from our customers.

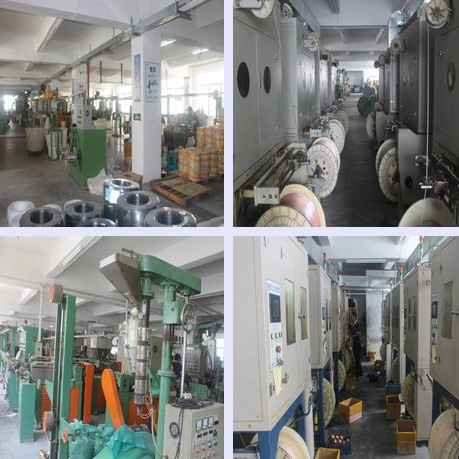

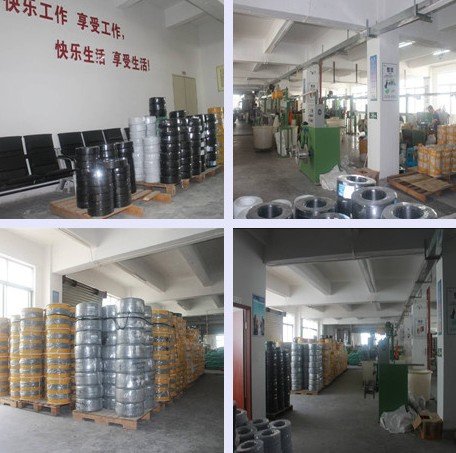

The company owned well-trained and skillful personnel, including outstanding engineer and technician team and managers and quality control team as well as 1200 workers. The company occupied 200, 000 sqms working area and has introduced many modern and advanced manufacturing machines and inspection equipment. The total assets has reached 52 million and was honored as Hi-Tech Enterprise and Strenth model factory by Zhejiang Government.

The principle of our company is " Guided by science and technology, take production and quality as the foundation, investment and management as the guarantee, with the backing of brand and marketing for omnidirectional development"...The company has passed the certification of ISO9001quality system and ISO14001 environment system. All the products are accordance with RoHS Standard while the HDMI cable also got the HDMI Association certification. Our brand " FULSAN" Has won a good reputation among our customers.

Looking into the future, we will always adhere to the managing idea of " Developing the industry, serving and repaying the society". We are willing to advance hand in hand with friends from all walks of life for mutual benefit.
