| Prod Model: |
RG8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tinned Copper Wire: |
Low Loss |
| PVC Jacket: |
Braiding Material |
| Application: |
RF Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
UL |
Product Description
Detailed Product Description

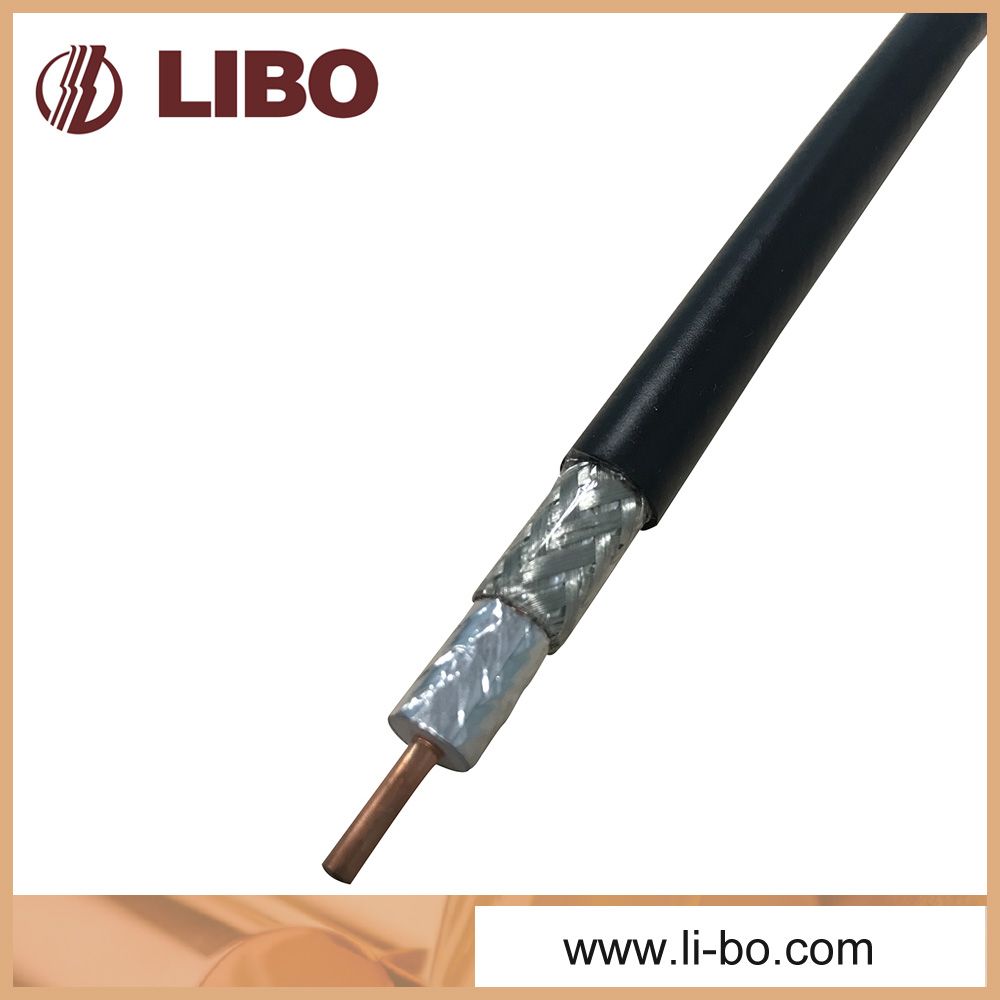

Tinned Copper Wire RG8 Coaxial Cable , Low Loss RG8 50 Ohm Cable for CCTV
RG8 coaxial cable, solid copper or copper clad aluminum as inner conductor, Dielectric core is insulating grade virgin polyethylene, tinned copper wire for braiding material, and PVC jacket.
Applications
Transmission of data signals in applications such as antenna feed cables or Ethernet backbones
CCTV installations, Control Video-cameras and Video-security in public and private places, for supervisory of buildings, enclosed spaces and open outdoor areas and any other Video frequency application of an RG8 C/U MIL standards.
Suitable for Broadcast application and other equipment in: Laboratories, Supermarkets, Airports, Hospitals, Big Areas, Sport facilities etc.
Industrial/instrumentation and control, computer cable, medical, RF
Specifications:
construction
|
Testing item |
Unit |
Standard |
Inner conductor |
material |
- |
solid copper or CCA |
diameter |
mm |
2.74 |
Dielectric |
material |
- |
foamed PE |
diameter |
mm |
7.24 |
shield, Braid |
Material |
- |
Tinned copper wire |
Coverage |
% |
35%-75% |
Electrical properties |
jacket |
PVC |
mm |
10.24 |
Nominal velocity of propagation |
% |
85 |
Capacitance |
pF/M |
81 |
Characteristic impedance |
Ω |
50 +/-2 |
SRL |
dB |
20 |
Attenuation
20ºC(max)
|
10MHZ |
|
1.64 |
50MHZ |
dB/100m |
3.28 |
100MHZ |
4.59 |
200MHZ |
5.90 |
400MHZ |
8.52 |
700MHZ |
11.80 |
900MHZ |
13.44 |
1000MHZ |
14.43 |
1500 MHZ |
18.03 |
1800 MHZ |
20.00 |
2000 MHZ |
21.31 |
2500 MHZ |
24.59 |
3000 MHZ |
27.21 |
Competitive Advantage:
RG8 has lower signal loss than smaller diameter cable such as RG 174
Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
Shaoxing is a place propitious for giving birth to great men and a place endowed with the fine spirits of the universe. The towering Jishan Mountain and flowing Jianshui River nurture the prosperous civilization of this famous historic and cultural city.
About 2500 years ago, Pingshui at the foot of Kuaijishan Mountain had been the manufacturing base of bronze weapons for the ancient kingdom of Yue. Stories of Rizhu Mountain that got the name from the sword-casting in one day by Ou Yezi, as well as the Sanzao (Three Furnances) of Shangzao, Zhongzao and Xiazao, have been widely told by generations. Now, relying on the innovative technology and ideas and top-class quality, Libo Group of Shaoxing is leading the new trend of copper and aluminum processing.
Libo Group is a nationally recognized Hi-Tech Enterprise specializing in copper and aluminum processing, electronic wire and cable, machinery manufacturing, new energy materials and real estate development, including 12 subsidiaries and 2000 employees. It is one of the 500 largest private enterprises in China and has been awarded Advanced Labor and Social Security Enterprise and a Key and Major Enterprise in Shaoxing. "Libo" has been the Well-known Trademark of China.
Libo Cable is subsidiary of Libo Group, it is specialized in the manufacturing of physical-foamed RF coaxial cable, seamless aluminum tube trunk cable, leaky feeder cable, solar PV ribbon and cable. With the advanced physical high-foam production lines and continuous-extruding seamless aluminum tube production lines, it now possesses the yearly capacity of 60, 000 km of coaxial cables, with the world-class quality. Products have been certified by UL and CE and exported to European and American market. The solar PV ribbon and cable makes use of the oxygen-free copper strip as the blank and it possesses the excellent electric conductivity and favorable solder ability and flexibility, which has been favored by the majority of users.
