| Prod Model: |
LYD-TOUCH-MB03 |
| Working Temperature: |
-20 - 60 |
| Net Weight: |
128g |
| Gross Weight: |
187g |
| Static Power Consumption: |
<1W |
| Output Current: |
<4A(Each Circuit) |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Material: |
Plastic |
| Type: |
Manual Switch |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | louita | Model Number: | LYD-TOUCH-MB03 |
| Type: | Manual Switch | Voltage: | DC12-24V | Product name: | Wall mounted Touch LED Controller |
| Keyword: | Lighting Controller | Input Voltage: | DC12V-24V | Output power: | 12V:<144W, 24V:<288W |
| Application: | Digital LED Light | Working Temperature: | 20C - +60C | Output: | 3 Channels |

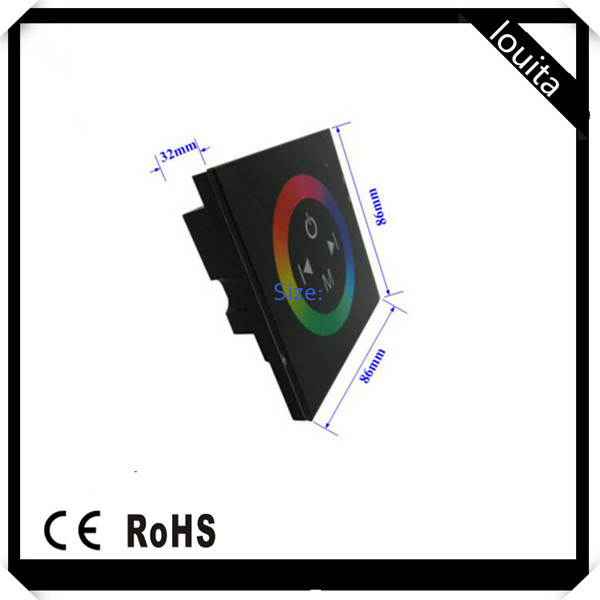

| Output Current: | 4A(each Channel) | Size: | L86*W86*H36 mm | Color: | Black |
Product DescriptionTouch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Technical Parameters(Controller):Working temperature: -20-60 ºC
Supply voltage: 12V-24V(for orders specify voltage)
Output: 3 channels

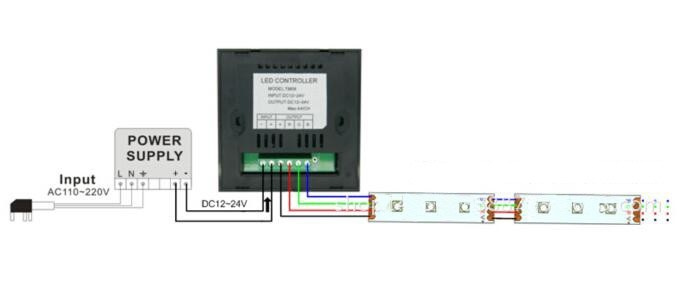

Connectiing mode: common anode
Transmission/Receiving frequency: IR
Static power consumption: <1W
Output current: <4A (each channel)
Output power: 12V: <72W, 24V: <144W
standard change is shown in the below table: | Mode No. | Function | Remarks |
| 1 | Static red | Brightness is adjustable, speed is unadjustable. |
| 2 | Static green |
| 3 | Static blue |
| 4 | Static yellow |
| 5 | Static purple |
| 6 | Static cyan |
| 7 | Static white |
| 8 | Three-color jumpy changing | Speed is adjustable, brightness is unadjustable |
| 9 | Three-color gradual changing | Speed is adjustable, brightness is unadjustable |
| 10 | Seven-color jumpy changing | Speed is adjustable, brightness is unadjustable |
| 11 | Seven-color gradual changing | Speed is adjustable, brightness is unadjustable |
Our Services1. Reply your Emails within 24 hours when we got your email,
2. Experienced marketing team give perfect answers to all your questions by heart.
3.Customized design is available. OEM&ODM are welcomed.
4. Exclusive and unique solution would be provided by our well-trained & professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.
Touch Wall Mounting Panel Controller RGB LED Strip Controller, 12V/6A
Details
Package&Shipping

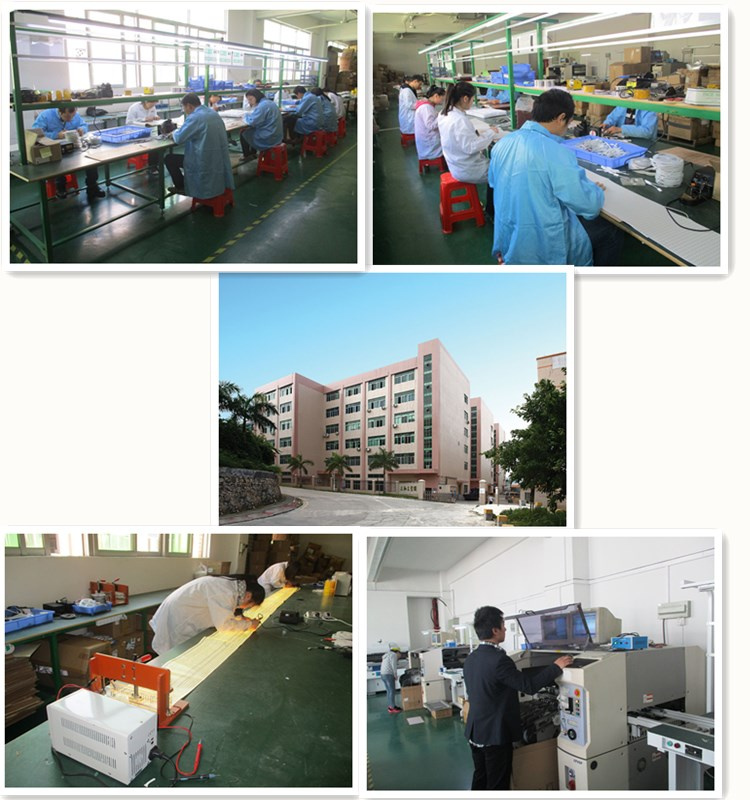

Our Factory
With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.
Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.
Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
