Prod Model:	JA-RF104
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Load Power:	Array
RF Frequency:	433.9MHz
Supply Voltage:	DC12V~24V
Warrty:	3
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	AA Battery

Product Description

Specifications

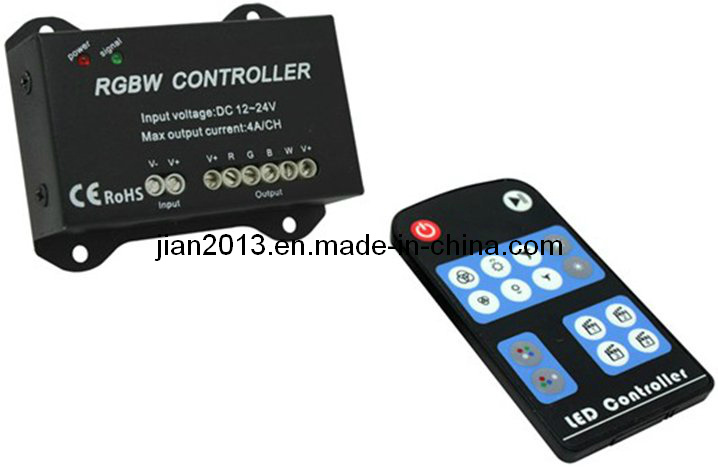

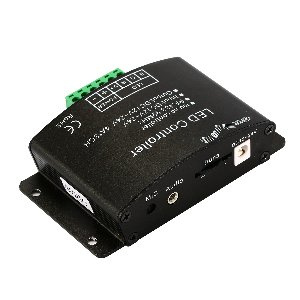

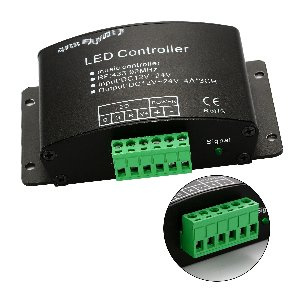

RGBW 4 channel controller is a multifunction controller, mainly used for control 4 channel lamps,
Summarization:
RGBW 4 channel controller is a multifunction controller, mainly used for control 4 channel lamps, it supports
Switch the mode from RGBW to RGB+W, at the same time, under each large mode, it supports switch mode from
39 kinds small mode; This controller can control RGB and RGBW lamps, users no need to purchase a variety of
Controller, then can achieve the effect you want, also RGBW mode can realize pure white light effect that RGB
Lamps and lanterns can't reach.

Technical Parameters:
Working temperature: -20-60
Supply voltage: DC 12-24V
Ouput voltage: DC 12-24V
Output connect way: Common anode (6 line with 4 loop)
External dimension: L76.6*W59*H22.2 mm
Packing size: L103*W70*H43 mm
Net weight: 0.133kg
Gross weight: 0.152kg
Remote control static state current: <10uA
Maximum output current: 4*4A
Maximum output power: 192W/12V 384W/24V
Remote control distance: <=25M
