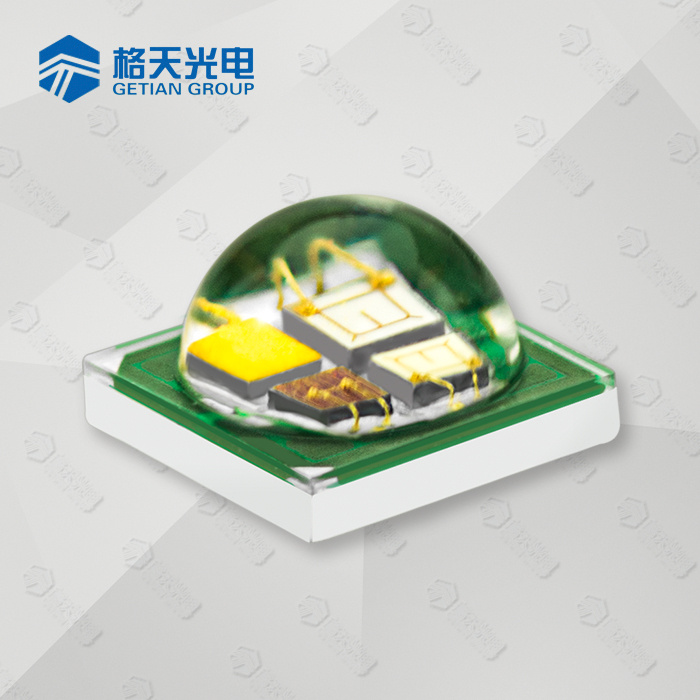

Name: Rgbww 4 In1 LED Moving Head LED Chip Diode
Brand: all-electronics-online.com
SKU: 831637065
Availability: InStock
Rating: 4.4 (92 reviews)

Price:	US $ 0.85/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-P35RGBWW
Wavelength:	R: 620-630nm G: 520-530nm B: 460-470nm Ww
Current:	350mA
Volt:	R: 2.0-2.5V Gbw: 3.0-3.5V
Luminous Flux:	30-40lm 70-80lm 15-25lm 80-110lm
Dimension:	3.55*3.55mm
Chip Brand:	Taiwan Epileds
Junction Temperature:	120 °c
Operating Temperature:	-40-60 °c
Reflow Temperature:	220 °c
LED Packaging Type:	Top
Chip Material:	InGaN
Beam Angle:	120??
Life:	50000h
Certification:	En 62471 IEC 62471
Emitting Color:	Rgbww
IP Rating:	N/a Anti ESD
Base Material:	Ceramic
LED Chips:	Taiwan Epileds
Power:	4W

Product Description

RGBWW 4 in1 LED Moving Head LED Chip Diode

Product Features

· SMD packaging high power led type.
· Compact design 3 in 1/4 in 1 RGB-W-W LEDs
· Exclusive chip source & Unique phosphor coating technology
· Super small space between chips facilitates to better color mixing
· Outdoor landscape lighting, stage lighting, smart lighting, plant grow, etc.

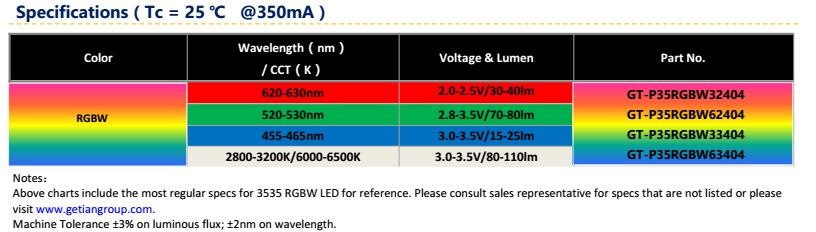

Specifications

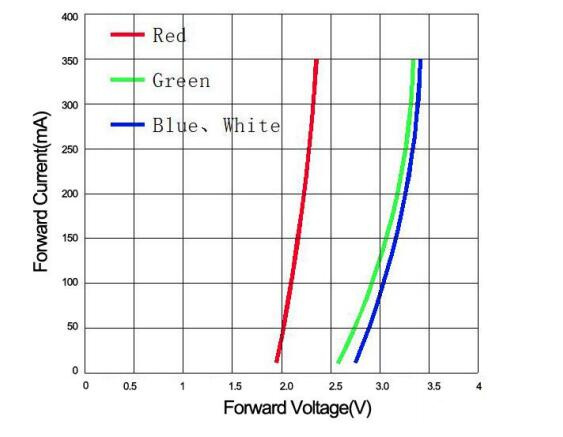

Electrical Features

Dimension

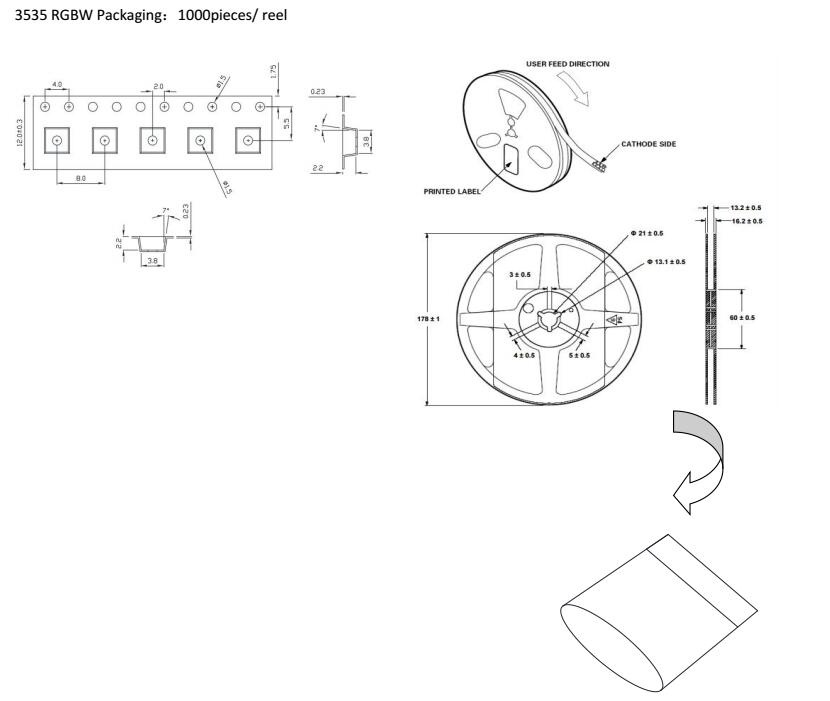

Packing Details
