Rigid Double Sided PCB 0.8mm Circuit Board with Immersion Gold

Name: Rigid Double Sided PCB 0.8mm Circuit Board with Immersion Gold
Brand: all-electronics-online.com
SKU: 823199095
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	US $ 0.43/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-245-V2.45
Outer Copper Foil:	1 Oz
Board Thickness:	0.8mm
Surface Treament:	Immersion Gold
Solder Mask:	Blue Matt
Legend Color:	White
Min Line Width (Mil):	11.7 Mil
Min Line Spacing (Mil):	5.8 Mil
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

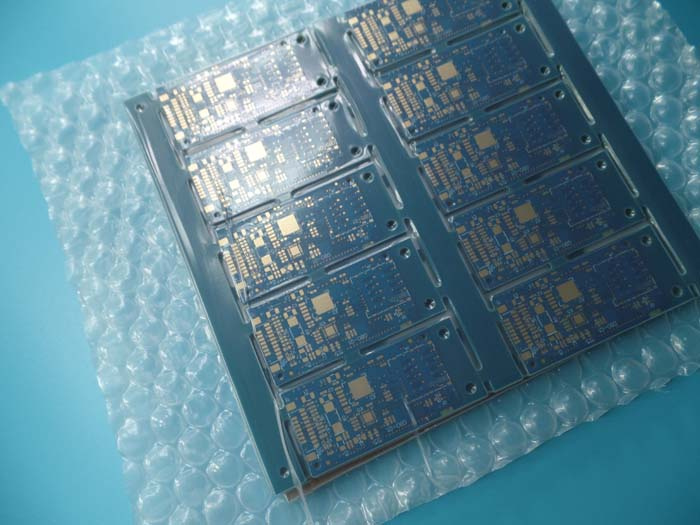

Matt Blue Double sided 0.8mm Thick PCB with 4u" Immersion Gold Routing and V-cut for
Profile in Embedded Systems

Commodity Introduction
This is a type of FR-4 PCB for the application of Embedded Systems. It's a 2 layer board at
0.8mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4
	Supplier	ITEQ	ITEQ
	Board thickness	0.8+/-10%mm	0.75-0.79mm
	Outer copper foil	>=35 um	43.46um
	Inner copper foil	/	/
	Warp-twist	<= 0.75%	0.54%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS & SS	CS & SS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		11.5	11.7
Min line spacing (mil)		6	5.8
Min ring width (mil)		NA	NA
Solder Mask	Type	KSM-6189BLM1	KSM-6189BLM1
	Color	Blue matt	Blue matt
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	Immersion Gold		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	96.00	96.07	95.91	95.98	96.08
2	155.00	154.94	155.02	155.02	155.10

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.900	Y	0.900	0.875	0.925
2	1.000	Y	1.000	0.975	1.025
3	1.100	Y	1.100	1.075	1.125
4	2.000	N	2.000	1.975	2.025
5	3.500	N	3.500	3.475	3.525
