| Prod Model: |
HXGT6-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
10kv |
Product Description

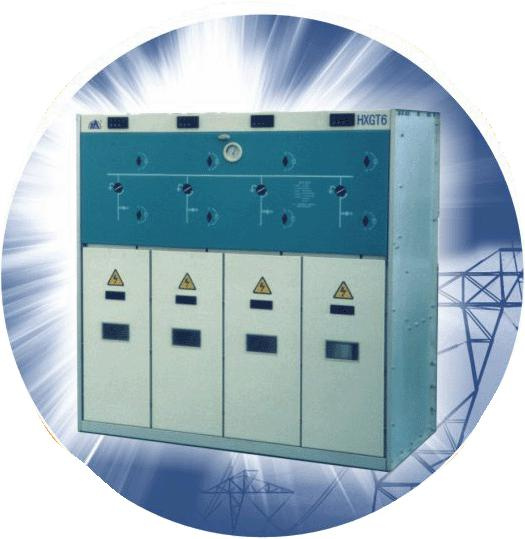

HXGT6-12 SF6 Ring Main Unit Switchgear (following abbreviation RMU) is my corporation designs and developed by self according to our country power supply requirement. Being suitable in our country city power network need of transformation and construction, it is a new generation indoor 10kV piezoelectricity ware product, this product is through type test and the operating examination, and the performance index achieves IEC298 of AC metal closed switch standard and others of country standard. It possesses the merits of small volume, gently quality, simple operates, use safety, high reliability, not influent by environment and climate and exempts maintenance, etc.
The RMU is a combined electrical equipment with all the main return circuit switch seals up in a metal envelope aspect and SF6 gas regard to extinguish arc and insulation dielectric, it is suitable not only in ring power supply and the double radiation power supply of 10kV medium pressure power supply network, but also can be used by terminal power supply. Owing to use ring net power supply, the reliability of power supply is greatly raised, so the product is especially suitable in factories and mines, residence area, school and park, etc. As distribution and control of electric energy. Moreover, owing to the fact that its convenient wiring and small volume and convenient installation, it can also be fit for combined power station as side HV equipment of the station.
General
The GIS is suitable for power plant, substation, combined substation and electric power system, which is three phase indoor AC single busbar and sectioning single busbar with 50Hz, 35kV rated voltage, used to control, accept and distribute electric power.
Standard
>>IEC 60265-1, IEC 6227-1, EC 62271-100, -102, -105, -200 and IEC 60529
Available modules
>>C: Cable Switch
>>De: Direct Cable Connection with earthing
>>D: Direct Cable Connection
>>F: Switch-Fuse Disconnector
>>V: Vacuum Circuit breaker
>>Be: Busbar earthing
>>Sl: Busbar Sectionalizer, load break switch
>>Sv: Busbar Sectionalizer, vacuum circuit breaker
>>CB: Circuit-breaker module
>>M: Metering Module
>>Mt: Metering tariff module
Functional design
1. Reliable
Each compartment is monitored individually & has its own pressure relief device.
2. Safety
The primary side components are hermetically enclosed, gas filled compartment and thus insensitive
to atmosphere, dirt &dust.
3. Space saving
Smaller foot prints All operations on the switchgear front.
4. Economically efficient
Reduced space & surface area requirement. Long service life Maintenance free Gas compartment.
Specifications
| No. | Item | unit | Parameter |
| 1 | Rated voltage | KV | 12 |
| 2 | Main busbar rated current | A | 630 |
| 3 | Rated current | A | 630 |
| 4 | Rated frequency | HZ | 50 |
| 5 | Rated short-time withstand current | KA | 20 |
| 6 | Rated short time continual time | S | 4 |
| 7 | Rated peak withstand current | KA | 50/125 |
| 8 | Rated short-circuit making current | KA | 50 |
| 9 | Rated active load breaking current | A | 630 |
| 10 | Rated closed loop breaking current | A | 630 |
| 11 | Rated cable-charging breaking current | A | 10 |
| 12 | The earthing switch rated
short-time resistance current | KA | 20 |
| 13 | Grounding switch rated
short circuit duration | S | 4 |
| 14 | Grounding switch rated
peak withstand current | KA | 50 |
| 15 | Rating insulation level | 1min Power
frequency withstand
voltage | KV | (phase to phase/ phase-to-ground) 42;
(isolating distance) 48 |
lightning impulse
withstand voltage
(peak value) | KV | (phase to phase/ phase-to-ground) 75;
(phase to phase/ phase-to-ground) 85 |
| 16 | major loop resistance | | ≤400 |
| 17 | mechanical life | Load switch | time | 5000 |
| Earthing switch | time | 2000 |
| 18 | subsidiary loop 1min Power
frequency withstand voltage | KV | 2 |
| 19 | SF6 Rated Gas pressure
(20ºC gauge pressure) | Mpa | 0.04 |
| 20 | SF6 Gas annual Leakage rate | | 1% |
| 21 | Protection grade | | IP4X |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
