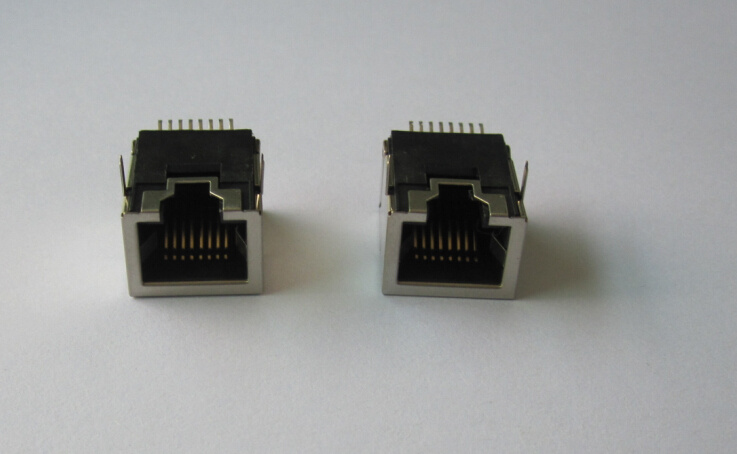

RJ45 Jack, 8p8c SMT Version, , with LED

Name: RJ45 Jack, 8p8c SMT Version, , with LED
Brand: all-electronics-online.com
SKU: 782144175
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 0.24-0.25/Piece
Trade Terms:	FOB,EXW
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RJ45 JACK, 8P8C
Markets:	North America,Southeast Asia,Western Europe
Installation Mode:	Rotary Jack
Type:	SD+MMC+MS+Xd+Minisd+TF Jack
Interface Type:	ZIF
Shape:	Bar
Production Process:	Welding
Customized:	Customized
Working Frequency:	High Frequency

Product Description

Single SMT RJ45 Jack with transformer

Surface Mount RJ45 Jack with LED with Magnetics

ELECTRICAL SPECFICATIONS at 25° C:
1. Turn Ratio(± 5%): 1CT: 1CT
2. Inductance(100kHz/0.1V@8mA): 350uH MIN
3. Insertion Loss(dB MAX): -1.0dB(1-100MHz)
4. Return Loss(dB MIN): -18dB(1-30MHz), -16dB(30-60MHz), -12dB(60-80MHz)
5. Cross talk(dB MIN): -30dB(1-100MHz)
6. CMR(dB MIN): -30dB(1-100MHz)
7. HI-POT: 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec
8. Operating Temperature: -40° C TO +85° C
9. RoHS compliance: YES

Integrated LEDs are available in a variety of colors as below,

	ABBR	Left LED	Right LED
1	Y/G	Yellow	Green
2	G/Y	Green	Yellow
3	G/G	Green	Green
4	Y/Y	Yellow	Yellow
5	GO/GO	Green/Orange bicolor	Green/Orange bicolor
6	GY/GY	Green/Yellow bicolor	Green/Yellow bicolor
7	Y/GO	Yellow	Green/Orange bicolor
8	GO/Y	Green/Orange bicolor	Yellow
9	None	None	None

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
