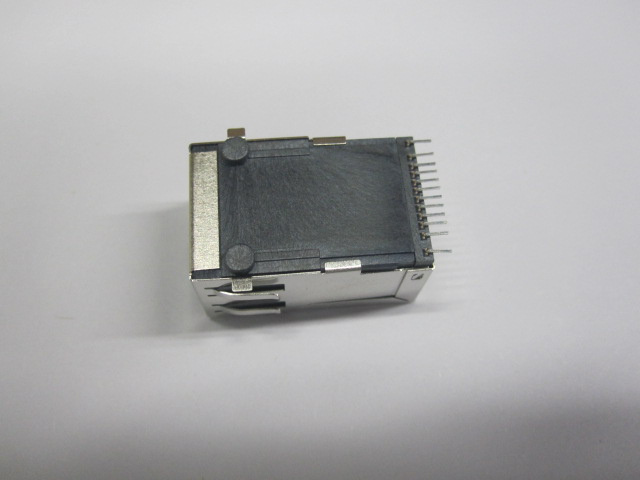

RJ45 Jack SMT Type, PCB Jack with Magentic

Name: RJ45 Jack SMT Type, PCB Jack with Magentic
Brand: all-electronics-online.com
SKU: 756408145
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RJ45 Jack series24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Computer
Shape:	Rectangular
Customized:	Customized
Type:	RJ45 Jack

Product Description

AMTERIALS:
HOUSING:HIGH TEMPERATURE UL94V-0 BLACK
CONTACTS:COPPER,30U'' NICKEL UNDERPLATE
ON ALL AREA,100U'' TIN ON TERMINATION END,
GOLD FLASH ON CONTACT AREA.
SHIELD: COPPER
NICKEL 50U'' MIN PLATING.

Key Specifications/Special Features:
LED Modular Socket
10-pin RJII/RJ12/RJ45 DIP/SMT type plug
For color code wiring cable assemblies
Turn ratio (±3%): 1CT: 1
OCL (100KHz/0.1V@8mA): 350uH min.
Insertion loss (dB type): -0.8dB (0.3-100MHz),-1.2dB(100-120MHz)
Return loss (dB min.): -18dB(0.5-40MHz), -12+20log(f/80Mhz)dB(40-100MHz)
Cross talk (dB type): -33+20log(f/100MHz) dB(0.3-100MHz)
CMR (dB min.): -30dB(0.3-100MHz)
CDMR(dB type): -35dB(0.3-100MHz)
DCR: 1.0Ω, max.
Hipot test: 1500Vrms/0.5mA/60s or 1650Vrms/0.5mA/2s
Operating temperature: 0°C to +70°C
RoHS-compliant
OEM/ODM orders are welcomed
