Rnb Non-Insulated Copper Ring Terminal Connector

Name: Rnb Non-Insulated Copper Ring Terminal Connector
Brand: all-electronics-online.com
SKU: 764595625
Availability: InStock
Rating: 4.5 (85 reviews)

Price:	US $ 0.011/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Jwl

Product Description

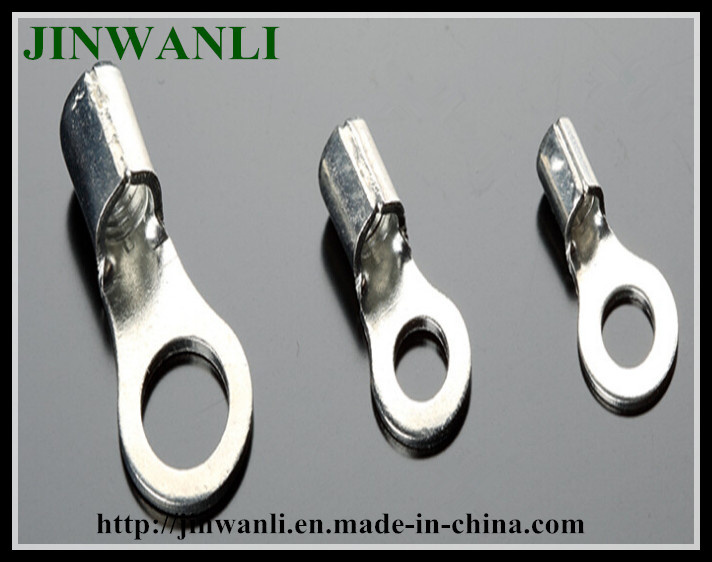

Non-Insulated naked Ring Terminal

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.
2) Processing: Cold press
3) Material: T2 copper with tinned surface, cridible conductivity
4) Certificate: ISO9001-2008
5) Manufacturer: price advantage, quick delivery

0.5 - 1.5 mm² (USA Spec 22 - 16 )   Imax = 19A
1.5 - 2.5 mm² (USA Spec 16 - 14)   Imax = 27A
2.5 - 4 mm² (USA Spec 14 - 12)   Imax = 37A
4 - 6 mm² (USA Spec 12 - 10)   Imax = 48A

Dimensions

Item No	Us-made bolt number	Bolts diameterd	Introduction
Item No	Us-made bolt number	Bolts diameterd	Introduction
RNB1.25-3.2	#4	3.2	Size of cable:0.5~1.5mm2(American standard22~16) Max.current=19A
RNB1.25-5	#10	5.3
RNB1.25--20	3/4	21.0
RNB2-3.2	#4	3.2	Size of cable:1.5~2.5mm2(American standard16~14) Max.current=27A
RNB2-6	1/4	6.5
RNB2-20	3/4	21.0
RNB3.5-4	#8	4.3	Size of cable:2.5~4mm2(American standard14~10) Max.current=37A
RNB3.5-8	5/16	8.4
RNB5.5-10	3/8	10.5	Size of cable:4~6mm2(American standard(12~10) Max.current=48A
RNB5-16	5/8	17.0
RNB8-10	3/8	10.5	Size of cable:6~10mm2(American standard(8) Max.current=62A
RNB14-5	#10	5.3	Size of cable:10~16mm2(American standard(6) Max.current=88A
RNB14-12	1/2	13.0	Size of cable:10~16mm2(American standard(6) Max.current=88A
RNB22-5L	#10	5.3	Size of cable:16~25mm2 (American standard(4) Max.current=115A
RNB22-6L	1/4	6.5
RNB38-6	1/4	6.5	Size of cable:35mm2 (American standard(2) Max.current=160A
RNB38-8L	5/16	8.4
RNB38-12	1/2	13.0
RNB60-8	5/16	17.0	Size of cable:50-70mm2American standard(1/0) Max.current=215A
RNB60-12	1/2	13.0
RNB60-22	7/8	23.0
RNB70-6	1/4	6.5	Size of cable70mm2 (American standard(2/0) Max.current=235A
RNB70-16	5/8	17.0	Size of cable70mm2 (American standard(2/0) Max.current=235A
RNB80-20	3/4	21.0	Size of cable:4~6mm2 (American standard(12~10) Max.current=255A
RNB100-6	1/4	6.5	Size of cable:120mm2 (American standard(4/0) Max.current=300A
RNB100-14	9/16	15.0
RNB100-18	5/8	19.0
