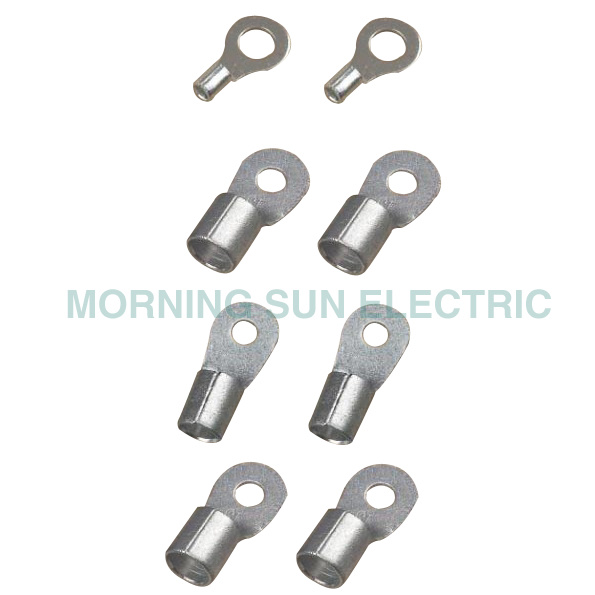

RNB Ring Naked Terminal

Name: RNB Ring Naked Terminal
Brand: all-electronics-online.com
SKU: 682649265
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	Negotiable
Trade Terms:	by Sea, by Air, by Express
Min Order:	10000/Piece

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

RNB Ring Naked Terminal

0.5-1.5mm 2 (22-16) 1max=19A

ITEM. NO.	USA screw	screw dia. d2(mm)	DIMENSION
ITEM. NO.	USA screw	screw dia. d2(mm)	B(mm)	L(mm)	F(mm)	E(mm)	D(mm)	d(mm)
RNB 1.25-3	#8	3.2	5.7	12.6	4.95	4.8	3.4	1.7
RNBS 1.25-3.5	#10	3.7	5.7	12.6	4.95
RNBM 1.25-3.5	#8	3.7	6.6	14.4	6.3
RNBL 1.25-3.5	#10	3.7	8.0	15.8	7.0
RNBS 1.25-4	#8	4.3	6.6	14.4	6.3
RNBL 1.25-4	#8	4.3	8.0	15.8	7.0
RNB 1.25-5	#10	5.3	8.0	15.8	7.0
RNB 1.25-6	1/4	6.4	11.6	21.8	11.1
RNB 1.25-8	1/4	8.4	11.6	21.8	11.1
RNB 1.25-10	5/16	10.5	13.6	25.5	13.6

1.5-2.5mm 2 (16-14.1max=27A

ITEM. NO.	USA screw	screw dia. d2(mm)	DIMENSION
ITEM. NO.	USA screw	screw dia. d2(mm)	B(mm)	L(mm)	F(mm)	E(mm)	D(mm)	d(mm)
RNB 2-3	#4	3.2	6.6	12.3	4.3	4.8	4.1	2.3
RNBS 2-3.5	#6	3.7	6.6	12.3	4.3
RNBM 2-3.5	#6	3.7	6.6	16.0	7.0
RNBL 2-4	#6	3.7	8.5	16.8	7.75
RNBS 2-4	#8	4.3	6.6	16.0	7.0
RNBL 2-4	#8	4.3	8.5	16.8	7.75
RNBS 2-5	#10	5.3	8.5	16.8	7.75
RNBL 2-5	#10	5.3	9.5	16.8	7.25
RNB 2-6	1/4	6.4	12.0	21.8	11.0
RNB 2-8	5/16	8.4	12.0	21.8	11.0
RNB 2-10	3/8	10.5	13.6	25.5	13.9
RNB 2-12	1/2	13.0	19.2	3.1	16.5
