Pre-insulated Ring Terminal

Name: Pre-insulated Ring Terminal
Brand: all-electronics-online.com
SKU: 662500125
Availability: InStock
Rating: 4.7 (122 reviews)

Price:	Negotiable
Trade Terms:	By sea, by air, by express
Min Order:	10000/Piece

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

RV series Pre-insulated Ring Terminal
red color
yellow color
black color
blue color
red copper

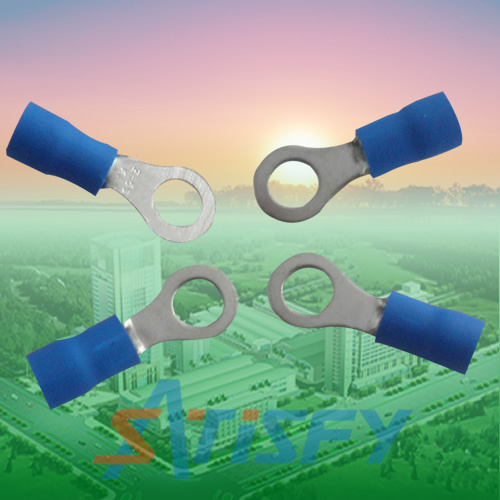

PRE-INSULATED RING TERMINAL
Type	Dimension							Wire size		In.Max.	Colour
Type	Φ	W	L	F	E	D	d	AMG	mm 2	(A)	Colour
RV1.25-3.2	3.2	5.7	17.8	4.95	10.0	4.3	1.8	22-16	0.5-1.5	19	red blue yellow
RVS1.25-3.7	3.7	8.0	21.5	7.0
RV1.25-3.7M	3.7	11.6	21.5	7.0
RV1.25-4S	4.3	6.6	20.1	6.3
RV1.25-4L	4.3	8.0	21.5	7.0
RV1.25-5	5.3	8.0	21.5	7.0
RV1.25-6	6.5	11.6	27.5	11.1
RV1.25-8	8.4	11.6	27.5	11.1
RV1.25-10	10.5	13.6	31.6	13.9
RV2-3.2	3.2	6.6	17.8	4.3	10.0	4.9	2.4	16-14	1.5-2.5	27	red blue yellow
RV2-3.7S	3.7	6.6	17.8	4.3
RV2-3.7M	3.7	6.6	21.0	7.0
RV2-3.7L	3.7	8.5	22.5	7.75
RV2-4S	4.3	6.6	21.0	7.0
RV2-4L	4.3	8.5	22.5	7.75
RV2-5S	5.3	8.5	22.5	7.75
RV2-5L	5.3	9.5	22.5	7.25
RV2-6	6.5	12.0	27.6	11.0
RV2-8	8.4	12.0	27.6	11.0
RV2-10	10.5	13.6	30.2	13.9
RV3.5-4	4.3	8.0	24.5	7.7	13.0	6.2	3.2	14-12	2.5-4	37	red blue yellow
RV3.5-5S	5.3	8.0	24.5	7.7
RV3.5-5L	5.3	12.0	27.9	7.7
RV3.5-6	6.5	12.0	27.9	7.7
RV5.5-3.7	3.7	7.2	21.4	5.9	13.0	6.7	4.0	12-10	4-6	48
RV5.5-4S	4.3	7.2	21.4	5.9
RV5.5-4L	4.3	9.5	25.5	8.3
RV5.5-5	5.3	9.5	25.5	8.3
RV5.5-6	6.5	12.0	31.5	13.0
RV5.5-8	8.4	15.0	33.7	13.7
RV5.5-10	10.5	15.0	33.7	13.7
RV5.5-12	13.0	19.2	38.1	16.0

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
