RO4003c and Fr4 PCB Circuit 4 Layer 1.0mm Thick with Enig
| Price: |
US $ 0.88/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-201-V2.01 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.0mm ±10% |
| Surface Finish: |
Electroless Nickel Immersion Gold (Enig) |
| Solder Mask Color: |
Green, Psr-2000gt600d, Taiyo Supplied. |
| Colour Of Component Legend: |
White, Ijr-4000 MW300, Taiyo Supplied. |
| Minimum Trace And Space: |
5 Mil/5 Mil |
| Minimum / Maximum Holes: |
0.3/6.4mm |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c 12mil Mixed with Fr-4 0.25mm |
| Material: |
Hydrocarbon/Woven Glass and Fiberglass Epoxy |
| Insulation Materials: |
Glass Reinforced Hydrocarbon and Epoxy Resin |
Product Description
4 Layer Multilayer Hybrid PCB RO4003C And FR-4 With Immersion Gold Applied In Digital
Transmitter
Commodity Introduction

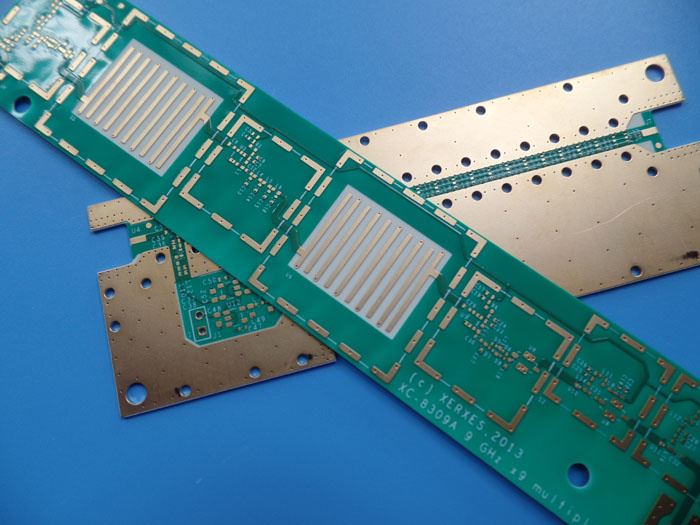

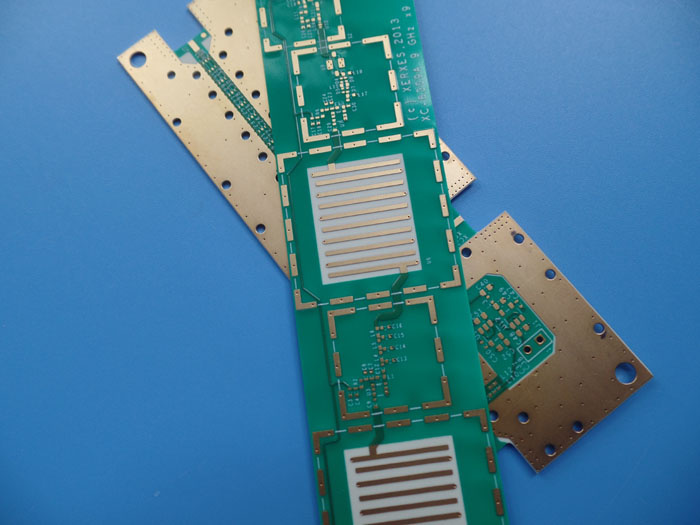

This is a type of RO4003C and FR-4 PCB for the application of Digital Transmitter. It's a 4 Layer
board at 1.0mm thick. The base laminate is from ROGERS CORP and ITEQ, Solder mask and
silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10
boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 123x 47mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35 um(1 oz)+plate TOP layer |
| RO4003C 12 mil Er 3.38 |
| copper ------- 35 um(1 oz) MidLayer 1 |
| FR-4 0.25mm |
| copper ------- 35 um(1 oz) MidLayer 2 |
| RO4003C 12 mil Er 3.38 |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5 mil/5 mil |
| Minimum / Maximum Holes: | 0.3/6.4mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 514 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4003C 12 mil mixed with FR-4 0.25mm |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.0mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Wifi Routers
Modem Router Wifi
UHF Radio
Antenna Wifi
Wlan Adapter
Gps Antenna |
TYPE OF ARTWORK
TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
