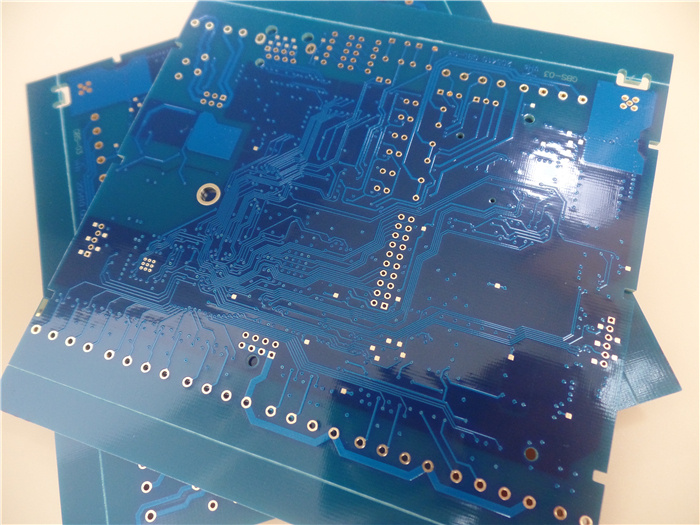

RO4003c PCB Board HASL (Hot Air Soldering Level) Plugged Vias
| Price: |
US $ 1.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-672-V6.72 |
| Board Thick: |
1.0mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
3 Oz |
| Soldermask Color: |
Blue |
| Silkscreen Color: |
No Required |
| Min Line Width (Mil): |
9.99 Mil |
| Min Line Spacing (Mil): |
9.51 Mil |
| Visual Inspection: |
Ipc-a-600h |
| Warp-Twist: |
<=0.35% |
| Electrical Test: |
100% PCB Passed |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company ProfileBicheng Enterprise Limited which was founded in 2003 is a leading PCB expert that specializes
in supplying high-tech PCB in high mixed, fast prototype, small to medium volume. We're capable
of supplying PCBs up to 32 layers inclusive of HDI circuit boards, flexible circuits, rigid-flex boards,
hybrids, halogen-free boards, metal-based PCB, high frequency PCB, heavy copper (up to 12
oz) PCB etc. which are in the applications of high-tech products.
The manufacturing facility is certified with ISO9001, ISO14001 & TS16949.Our products are widely
used in Telecom, Industrial Control, Networks, Healthcare, & Automotive Industries.
Printed Circuit Board

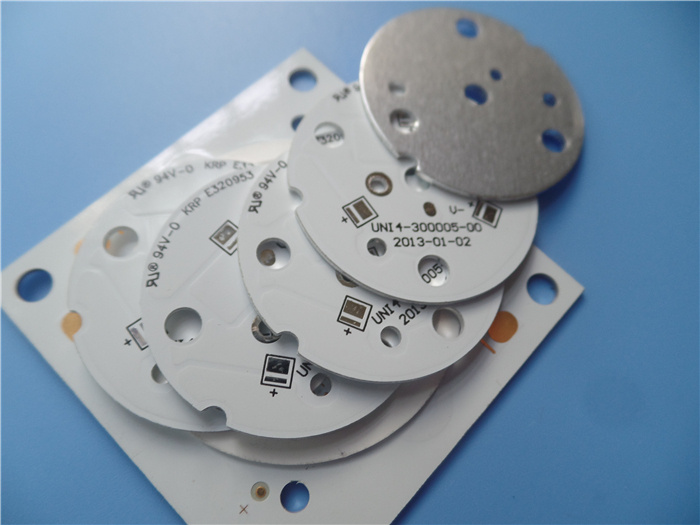

Aluminum PCB

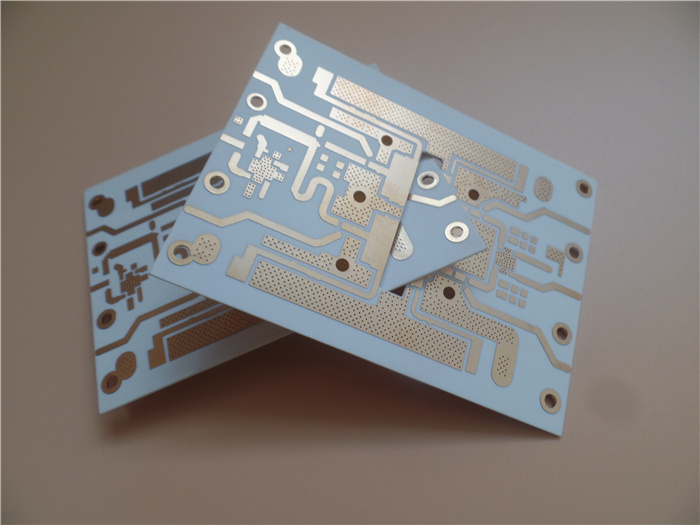

High Frequency PCB

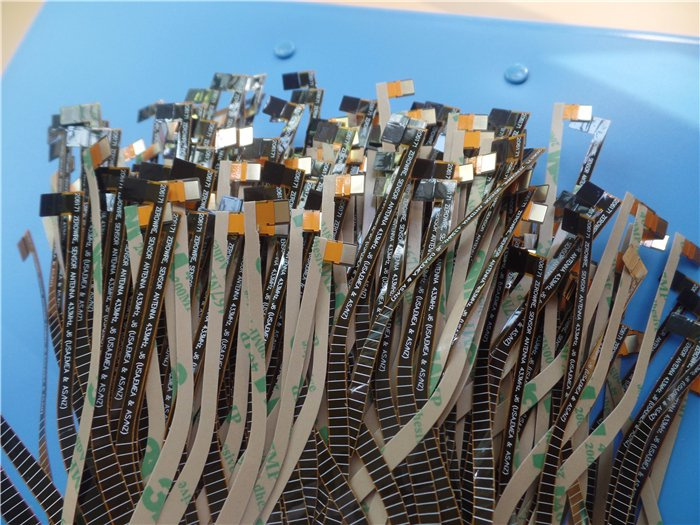

Flex PCB
Technology Information
ITEQ Laminate/ Prepreg : IT-140TC / IT-140BS
IPC-4101A Spec / 21
LAMINATE(IT-140TC)| Property | Thickness<0.50 mm | Thickness>=0.50 mm | Units | Test Method |
| [0.0197 in] | [0.0197 in] |
Typical
Value | Spec | Typical
Value | Spec | Metric | IPC-TM-650 |
| (English) | (or as noted) |
Peel Strength,
minimum | | | | | N/mm | 2.4.8 |
A.Low profile
copper foil and
very low profile
copper foil - all
copper weights
> 17mm [0.669
mil] | | | | | (lb/inch) | 2.4.8.2 |
B.Standard
profile
copper foil | 0.96 (5.5) | 0.70 (4.0) | 0.96 (5.5) | 0.70 (4.0) | | 2.4.8.3 |
1.After
Thermal
Stress | | | | | | |
2.At 125°C
[257 F] | | | | | | |
3.After
Process
Solutions | 1.75 (10 ) | 0.80 (4.57) | 1.93 (11.0) | 1.05 (6.00) | | |
| | 1.66 (9.5) | 0.70 (4.00) | 1.66 (9.5) | 0.70 (4.00) | | |
| | 1.49 (8.5) | 0.55 (3.14) | 1.49 (8.5) | 0.80 (4.57) | | |
Volume
Resistivity,
minimum | | | | | MW-cm | 2.5.17.1 |
| A. C-96/35/90 | 5x1010 | 106 | -- | -- |
B. After
moisture
resistance | -- | -- | 5x1010 | 104 |
C. At elevated
temperature
E-24/125 | 5x1010 | 103 | 5x1010 | 103 |
Surface
Resistivity,
minimum | | | | | MW | 2.5.17.1 |
| A. C-96/35/90 | 3.5x1010 | 104 | -- | -- |
B. After
moisture
resistance | -- | -- | 3.5x1010 | 104 |
C. At elevated
temperature
E-24/125 | 6x1010 | 103 | 6x1010 | 103 |
Moisture
Absorption,
maximum | 0.3 | -- | 0.1 | 0.8 | % | 2.6.2.1 |
Dielectric
Breakdown,
minimum | -- | -- | 60 | 40 | kV | 2.5.6 |
Permittivity
(Dk, 50%
resin content) | 4.6 | 5.4 | 4.6 | 5.4 | -- | 2.5.5.9 |
(Laminate &
Laminated
Prepreg) |
| A. 1MHz |
Loss Tangent
(Df, 50%
resin content) | 0.016 | 0.035 | 0.016 | 0.035 | -- | 2.5.5.9 |
(Laminate &
Laminated
Prepreg) |
| A. 1MHz |
Flexural
Strength,
minimum | | | | | N/mm2 | 2.4.4 |
A. Length
direction | -- | -- | 500-530 | 415 | (lb/in2) |
| | -- | -- | (72,500-76,850) | -60,190 | |
B. Cross
direction | -- | -- | 430-460 | 345 | |
| | -- | -- | (62,350-66,700) | -50,140 | |
Arc Resistance,
minimum | 120 | 60 | 120 | 60 | s | 2.5.1 |
Thermal Stress
10 s at 288°C
[550.4F],
minimum | | | | | Rating | 2.4.13.1 |
| A. Unetched | Pass | Pass
Visual | Pass | Pass
Visual |
| B. Etched | Pass | Pass
Visual | Pass | Pass
Visual |
Electric Strength,
minimum | 45 | 30 | -- | -- | kV/mm | 2.5.6.2 |
(Laminate &
Laminated
Prepreg) |
| Flammability, | V-0 | V-0 | V-0 | V-0 | Rating | UL94 |
(Laminate &
Laminated
Prepreg) |
Glass Transition
Temperature
(DSC) | 140 | 135
minimum | 140 | 135
minimum | ˚C | 2.4.25 |
Decomposition
Temperature | -- | -- | 305 | -- | ˚C | 2.4.24.6 |
| (5% wt loss) |
| Z-Axis CTE | | | | | | 2.4.24 |
| A. Alpha 1 | -- | -- | 55 | -- | ppm/˚C |
| B. Alpha 2 | -- | -- | 290 | -- | ppm/˚C |
C. 50 to 260
Degrees C | -- | -- | 4.2 | -- | % |
Thermal
Resistance | | | | | | 2.4.24.1 |
| A. T260 | -- | -- | 15 | -- | Minutes |
| B. T288 | -- | -- | 2 | -- | Minutes |
| CAF Resistance | -- | -- | Pass | AABUS | Pass/Fail | 2.6.25 |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
